PROLED50 EBR

Linear Wall Wash.

PROLED50 EBR
PROLED50 EBR
Compact architectural
Compact architectural
Compact architectural
Compact architectural
PROLED50 EBR
Compact architectural
Compact architectural

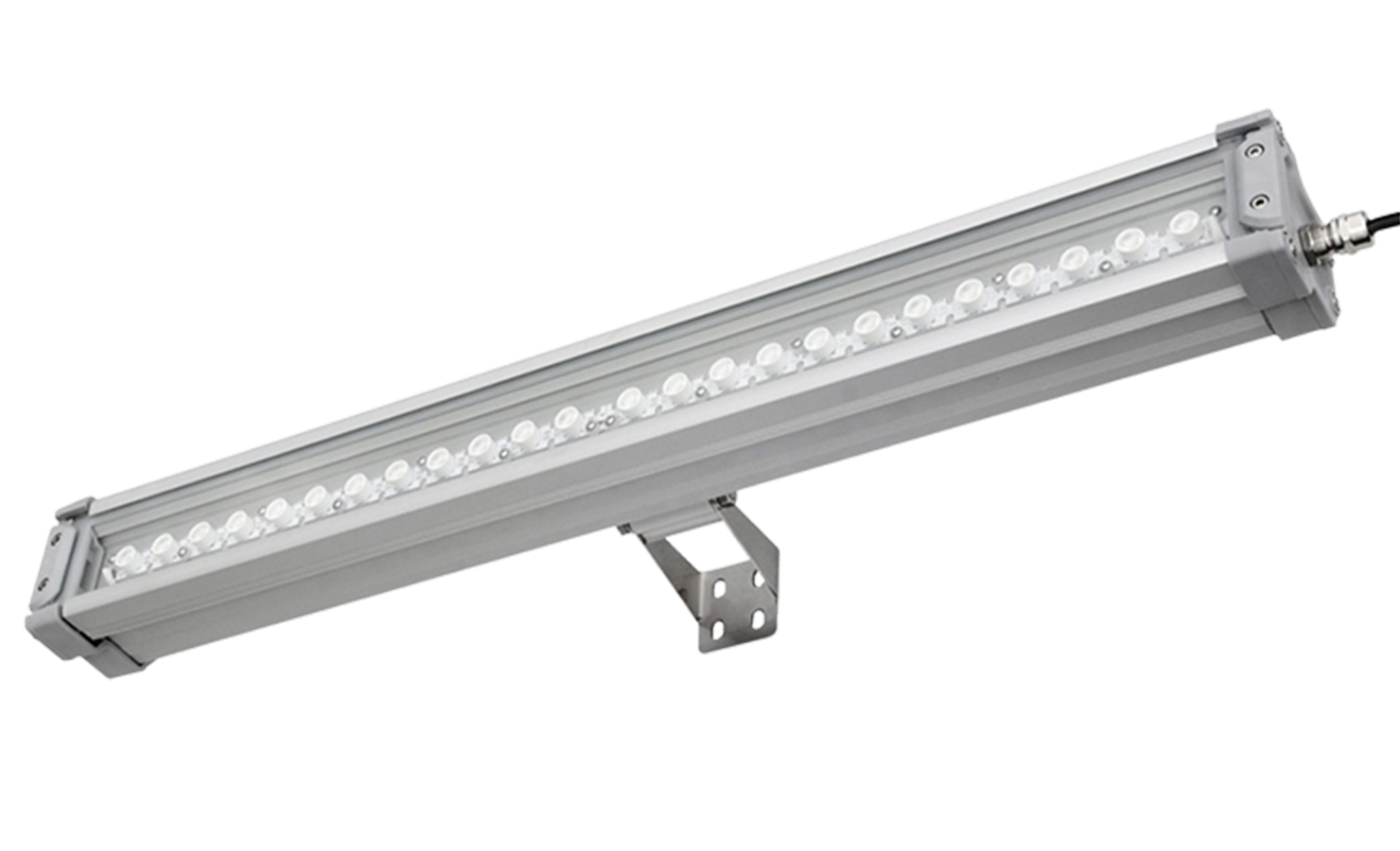

A linear wall wash with 30° symmetrical beam optic for architectural and accent applications.

Standard Features

  • Extruded aluminium body.
  • UV resistant polycarbonate diffuser.
  • IP66.
  • IK09.
  • 30 x 30° beam angle.

Applications

  • Façade
  • Public Space
  • Signage

Ambient Temperature Guidance

-25°C to +40°C

PROLED50 EBR Specification Guide

Order Code Wattage Delivered Lumens (ta +25°C) System Efficacy (lm/W) CCT-K L (mm) H (mm) D (mm) Weight (kg)
EBR1164KA 16W 1,897 120 4000 705 82 164 3.0
EBR1234KA 23W 2,370 105 4000 705 82 164 3.0
EBR1304KA 30W 3,162 106 4000 705 82 164 3.0
EBR1304KB 30W 3,794 127 4000 1265 82 164 6.0
EBR1434KB 43W 4,740 111 4000 1265 82 164 6.0
EBR1604KB 60W 6,324 106 4000 1265 82 164 6.0

To Order Features

(Add suffix to order code)

Driver Options

/LSLV
DALI

PROLED50 EBR Dimensions

PROLED50 EBR Dimensions

Note: All dimensions are in millimetres.

PROLED50 EBR Photometry

Please contact us for further information regarding this product.

PROLED50 EBR Downloads
