/ Lighting Products / Amenity /


  • Side cable entry
    Side cable entry
  • Ultra modern curved profile
    Ultra modern curved profile

Ultra Long Life LED Amenity Lighting. For maintenance free industrial and commercial application.

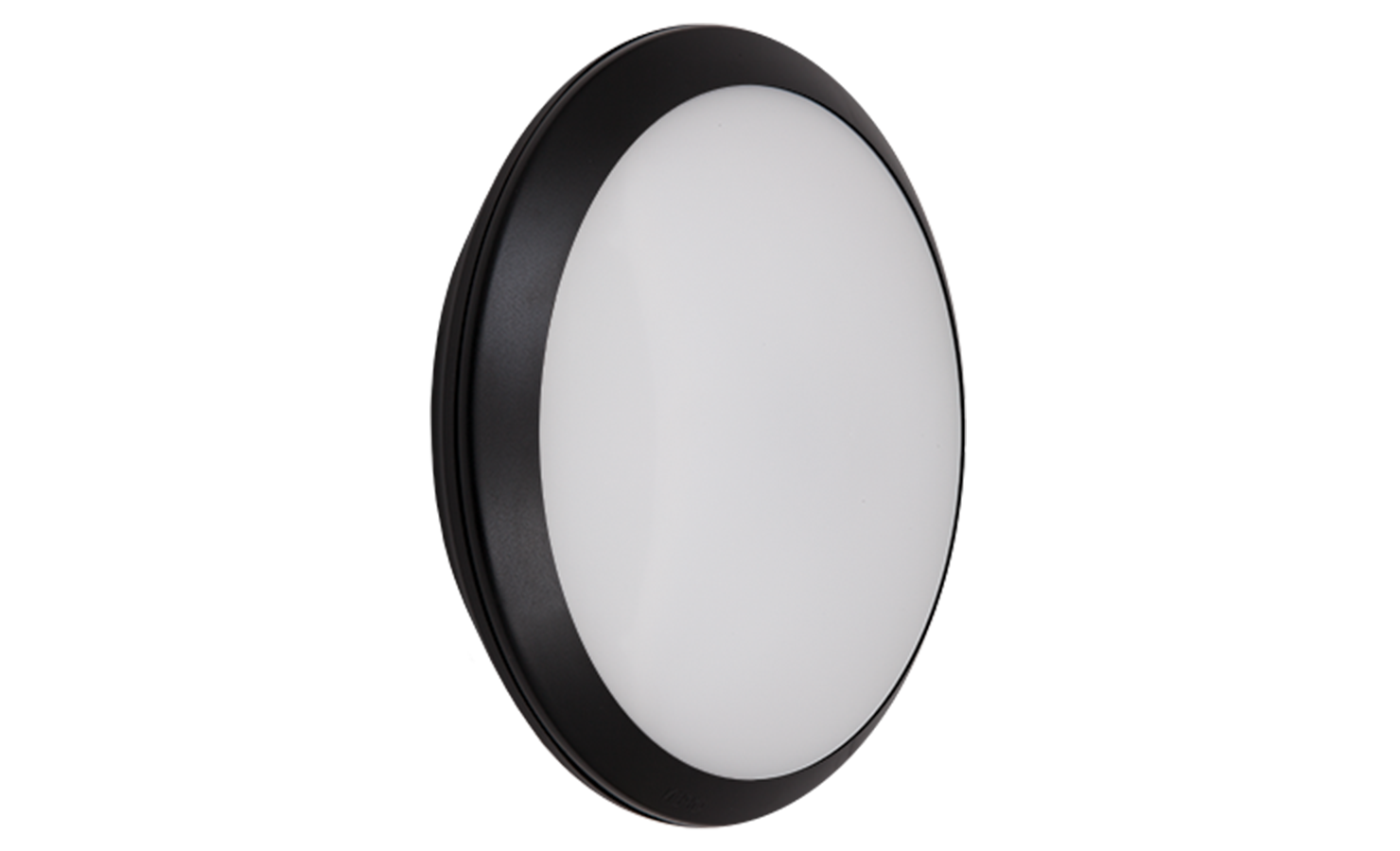

An IP65 LED bulkhead to illuminate building perimeters. Offering a replacement to traditional 2D luminaires the Elton is surface mounted and offered with matt black polycarbonate housing. The addition of an internal microwave sensor further increases the energy saving.

Standard Features

  • Matt black polycarbonate housing.
  • IP65 durable construction.
  • Integral microwave option available for on/off switching.


  • Stairwell Exteriors
  • Building Perimeters
  • Student Accommodation

Ambient Temperature Guidance

-20° to +40°C

ELTON Specification Guide


Order Code Wattage D Diameter Kg LED Options Eye Options Emergency Options Discontinued
ELT12/4K 1 x 12W 85 308 0.8

To Order Features

(Add suffix to order code)

/HMS: On/Off integral microwave sensor

Example order code:
ELT12/4K/HMS – A 12 watt LED Elton amenity luminaire with On/Off integral microwave sensor.

Note: All dimensions are in millimetres.

ELTON Dimensions

ELTON Dimensions

ELTON Datasheet

ELTON Photometry

Please contact us for further information regarding this product.
