COTTESMORE
Ultra Long Life LED Amenity Lighting. For maintenance free industrial and commercial application.
COTTESMORE
Black body
Side cable entry
Ultra modern curved profile
An energy saving and cost effective LED bulkhead. Offering a replacement to traditional 2D luminaires the Cottesmore is surface mounted, durable IK10 and available in black or white. The addition of an internal microwave sensor further increases the energy saving.
Standard Features
- IK10 for use in the toughest environment.
- Polycarbonate body.
- Polycarbonate diffuser.
- Available with dimming and microwave sensor.
Applications
- Stairwells
- Corridors
- Toilets
- Student Accommodation
- Building Perimeters
Ambient Temperature Guidance
20°C to +40°C
COTTESMORE Specification Guide
| Order Code | Wattage | D (mm) | Diameter (mm) | Weight (kg) |
|---|---|---|---|---|
| COT15/4K | 15W | 100 | 300 | 0.9 |
| COT25/4K | 25W | 135 | 400 | 1.6 |
To Order Features
(Add suffix to order code)
Sensor Options
- /HMS
- On/Off sensor
- /MSDIM
- 100%/10% dimming plus sensor
Emergency Options
- /M3
- 3hr integral emergency
Accessory Options
- /BL
- Black body
- /WH
- White body
Example Order Code

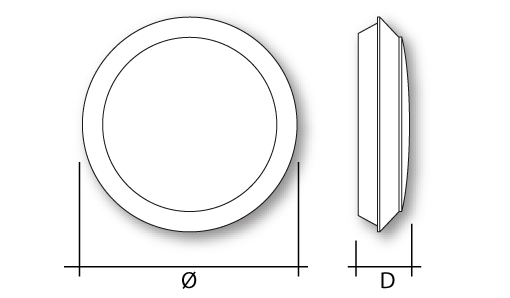

COT25/4K/MSDIM – A 25 watt LED Cottesmore amenity luminaire with 100%/10% dimming plus sensor.COTTESMORE Dimensions
Note: All dimensions are in millimetres.
COTTESMORE Photometry
Please contact us for further information regarding this product.
