CRUX
LOW-BAY.
CRUX
/HMS: On/Off sensor (up to 13m)

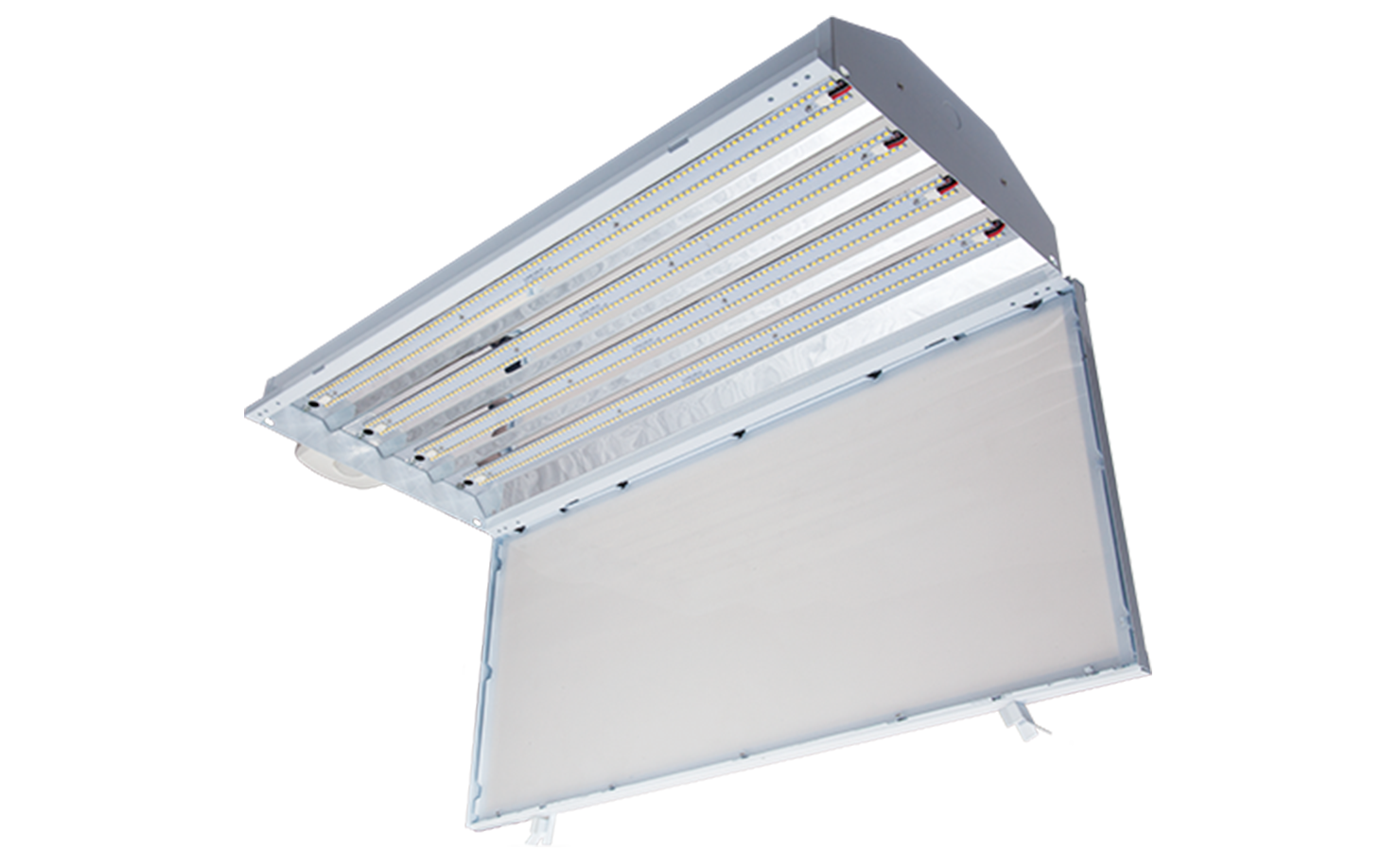

Hinged diffuser
Rear access for easy installation
An IP20 low-bay luminaire.
Standard Features
- White steel body
- Suspension mounting option as standard
- Opal or clear protective diffuser option
- IP20
- IK05
- Remote or integral emergency option
Applications
- Warehouses
- Distribution Hubs
- Manufacturing
Ambient Temperature Guidance
-20°C to +35°C (excluding emergency)
CRUX Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | L (mm) | W (mm) | D (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SLW100 | 100W | 11,141 | 140 | 5000 | 673 | 313 | 92 | 6.5 |
| SLW120 | 120W | 14,800 | 140 | 5000 | 673 | 313 | 92 | 6.5 |
| SLW150 | 150W | 18,908 | 140 | 5000 | 820 | 348 | 92 | 6.7 |
| SLW180 | 180W | 22,400 | 140 | 5000 | 820 | 348 | 92 | 7.3 |
| SLW210 | 210W | 26,630 | 133 | 5000 | 820 | 348 | 92 | 7.3 |
To Order Features
(Add suffix to order code)
Driver Options
- /DIM
- 1-10v dimming
- /LSLV
- DALI
Sensor Options
- /HMS
- Microwave sensor on/off
Emergency Options
- /M3
- Integral 3 hour emergency
- /M3A
- Integral 3 hour emergency with auto test function
Accessory Options
- /CRLENS2
- Clear lens cover for 100w & 120w models
- /CRLENS3
- Clear lens cover for 150w, 180w & 210w models
- /OPLENS2
- Opal lens cover for 100w & 120w models
- /OPLENS3
- Opal lens cover for 150w, 180w & 210w models
- /WG100/120
- Wireguard for 100w & 120w models
- /WG150/180/210
- Wireguard for 150w, 180w & 210w models
Example Order Code
SLW150/CRLENSS3 – A 150 watt LED Crux luminaire with clear lens cover.CRUX Dimensions
Note: All dimensions are in millimetres.
CRUX Photometry
Please contact us for further information regarding this product.
