PROLED50 ECS
Economic surface linear or modular luminaire.
PROLED50 ECS

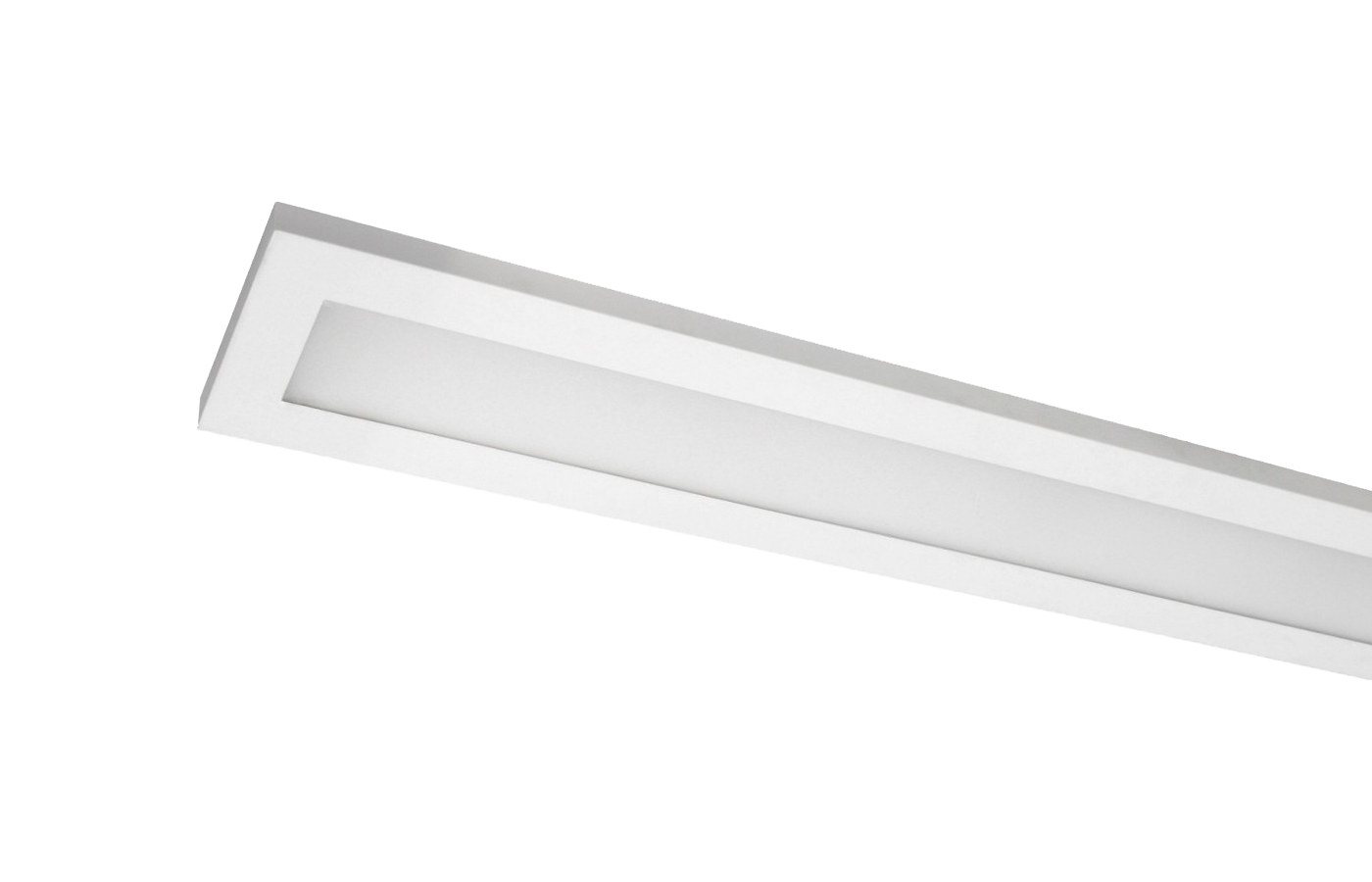

A surface LED luminaire with micro prismatic diffuser providing a low glare solution.
Standard Features
- Steel body with micro prismatic diffuser.
- Surface mounting.
- IP44.
- IK05.
- Integral emergency available.
- Low glare.
- RAL colour options.
- Optional Bluetooth control and tuneable white.
Applications
- Offices
- Schools / Universities
- Reception Areas
- Meeting Rooms
- Corridors
- Retail
Ambient Temperature Guidance
0°C to +35°C (excluding emergency)
PROLED50 ECS Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| ECS1294KB | 26W | 3,784 | 145 | 4000 | 1203 | 175 | 47 | 3.9 |
| ECS1364KB | 36W | 5,407 | 152 | 4000 | 1203 | 175 | 47 | 3.9 |
| ECS1424KB | 43W | 6,193 | 145 | 4000 | 1203 | 175 | 47 | 3.9 |
| ECS1374KB | 32W | 4,730 | 149 | 4000 | 1483 | 175 | 47 | 4.8 |
| ECS1454KC | 45W | 6,759 | 149 | 4000 | 1483 | 175 | 47 | 4.8 |
| ECS1534KC | 53W | 7,742 | 147 | 4000 | 1483 | 175 | 47 | 4.8 |
To Order Features
(Add suffix to order code)
Driver Options
- /LSLV
- DALI
- /SD
- Switch dimming control
Sensor Options
- /ACT
- Integral self-learning sensor
- /AIR
- Integral smart sensor for wireless control in small groups
- /BLT
- Integral Bluetooth wireless control
- /COR
- Corridor function - never off
- /COR1
- Corridor function - off after 1 minute
- /COR30
- Corridor function - off after 30 minutes
- /VDL
- Integral daylight sensor
LED CCT Options
- /2.7K-6.5K
- Tunable White 2700K to 6500K
- /BLT/2.7K-6.5K
- Tunable White 2700K to 6500K with Bluetooth wireless control
Emergency Options
- /L3
- Integral 3 hour emergency with DALI interface
- /M3
- Integral 3 hour emergency
- /M3ER
- Integral 3 hour emergency with 'Escape Route' optic
- /M3OA
- Integral 3 hour emergency with 'Open Area' optic
- /S3
- Integral 3 hour emergency with auto test function
Accessory Options
- /RALXXXX
- RAL colour option - specify RAL colour
PROLED50 ECS Dimensions
Note: All dimensions are in millimetres.
PROLED50 ECS Photometry
Please contact us for further information regarding this product.
PROLED50 ECS Downloads
Please contact us for further information regarding this product.
