PROLED75 RDA

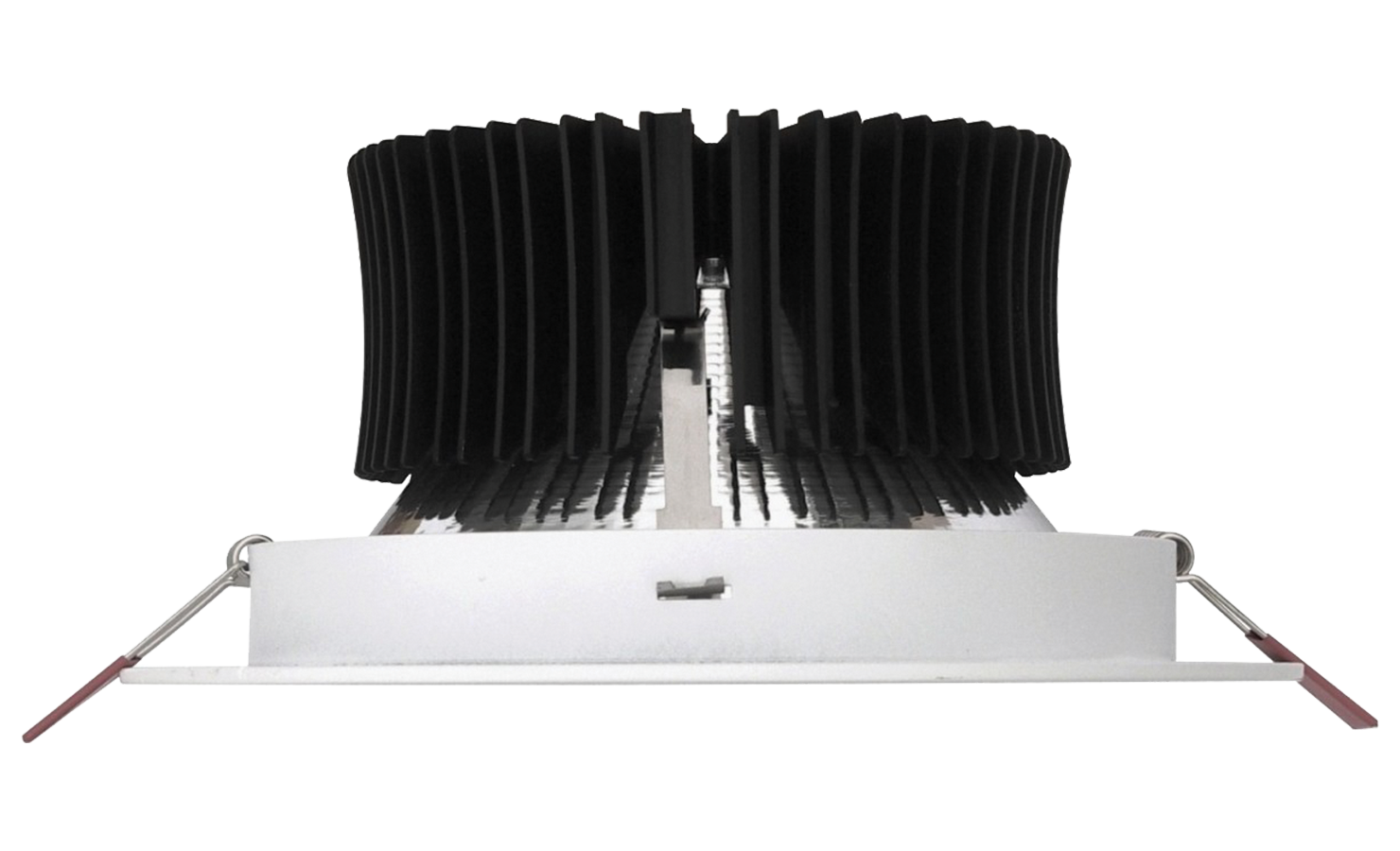

Recessed circular downlight.

PROLED75 RDA
PROLED75 RDA
Opal
Opal
PROLED75 RDA
Opal

A recessed circular downlight with a choice of low glare reflector and clear glass cover, opal or micro-prismatic diffuser.

Standard Features

  • White powder coated aluminium body.
  • Faceted 60° low glare aluminium reflector with glass cover.
  • IP44.
  • 165mm cut-out.
  • Optional opal or micro-prismatic diffuser.
  • Emergency options.
  • RAL colour options.

Applications

  • Office
  • Retail
  • Hospitality
  • Education

Ambient Temperature Guidance

0°C to +35°C (excluding emergency)

PROLED75 RDA Specification Guide

Order Code Wattage Delivered Lumens (ta +25°C) System Efficacy (lm/W) CCT-K H (mm) Diameter (mm) Cutout Diameter (mm) Weight (kg)
RDA1143KOP 14W 1,455 103 3000 100 195 165 0.8
RDA1143KMP 14W 1,492 106 3000 100 195 165 0.8
RDA1143KLG 14W 1,606 114 3000 100 195 165 0.8
RDA1144KOP 14W 1,500 106 4000 100 195 165 0.8
RDA1144KMP 14W 1,539 109 4000 100 195 165 0.8
RDA1144KLG 14W 1,656 117 4000 100 195 165 0.8
RDA1203KOP 20W 2,019 103 3000 100 195 165 0.8
RDA1203KMP 20W 2,071 106 3000 100 195 165 0.8
RDA1203KLG 20W 2,229 114 3000 100 195 165 0.8
RDA1204KOP 20W 2,081 106 4000 100 195 165 0.8
RDA1204KMP 20W 2,135 109 4000 100 195 165 0.8
RDA1204KLG 20W 2,297 117 4000 100 195 165 0.8
RDA1283KOP 28W 2,723 97 3000 100 195 165 0.8
RDA1283KMP 28W 2,794 99 3000 100 195 165 0.8
RDA1283KLG 28W 3,006 107 3000 100 195 165 0.8
RDA1284KOP 28W 2,807 100 4000 100 195 165 0.8
RDA1284KMP 28W 2,880 102 4000 100 195 165 0.8
RDA1284KLG 28W 3,099 110 4000 100 195 165 0.8

To Order Features

(Add suffix to order code)

Driver Options

/LSLV
DALI
/SD
Switch dimming control

Emergency Options

/M3
Integral 3 hour emergency

Accessory Options

/RALXXXX
RAL colour option - specify RAL colour
/WIE/3P/0.5M
0.5m lead and Wieland 3 pin plug
/WIE/5P/0.5M
0.5m lead and Wieland 5 pin plug

PROLED75 RDA Dimensions

PROLED75 RDA Dimensions

Note: All dimensions are in millimetres.

PROLED75 RDA Photometry

Please contact us for further information regarding this product.

PROLED75 RDA Downloads
