PROLED50 MDL19K

Recessed circular scoop downlight

PROLED50 MDL19K
PROLED50 MDL19K

A recessed, fully adjustable, circular downlight offering a wide choice of CCT & reflector options. Ideal for directional illumination of walls and displays.

Standard Features

  • Powder coated die cast aluminium body.
  • MacAdam 2 SDCM.
  • RAL9006 – Silver, RAL9016 – White, RAL9005 – Black.
  • Adjustable driver.
  • Citizen 6th Generation LED COB.
  • 90° tilt and 355° turn.
  • IP20.

Applications

  • Leisure
  • Retail
  • Hospitality

PROLED50 MDL19K Specification Guide

COB38 Standard Output

Order Code Wattage Delivered Lumens (ta +25°C) System Efficacy (lm/W) CCT-K CRI Cutout Diameter (mm) Weight (kg) Reflector Colour
MDL19K25W/21/FL/W 25W 3,000 120 4000 90+ 180 1.7 30° White
MDL19K35W/21/FL/W 35W 3,875 111 4000 90+ 180 1.7 30° White
MDL19K43W/21/FL/W 43W 4,350 101 4000 90+ 180 1.7 30° White

COB48 High Output

Order Code Wattage Delivered Lumens (ta +25°C) System Efficacy (lm/W) CCT-K CRI Cutout Diameter (mm) Weight (kg) Reflector Colour
MDL19KHP25W/29/FL/W 25W 3,225 129 4000 90+ 180 1.7 40° White
MDL19KHP40W/29/FL/W 40W 4,900 123 4000 90+ 180 1.7 40° White
MDL19KHP55W/29/FL/W 55W 6,125 111 4000 90+ 180 1.7 40° White

To Order Features

(Add suffix to order code)

LED CCT Options for Standard COB

/18
CRI90 2700K BBL
/19
CRI90 3000K BBL
/20
CRI90 3500L BBL
/32
BAKERY 2400K
/33
MEAT 2000K

LED CCT Options for High Power COB

/26
CRI90 2700K BBL
/27
CRI90 3000K BBL
/28
CRI90 3500L BBL

Reflector Options for Standard COB

/NFL
20° narrow flood
/SP
15° spot
/WFL
50° wide flood

Reflector Options for High Power COB

/SP
20° spot
/WFL
60° wide flood

Colour Options

/B
Black
/S
Silver

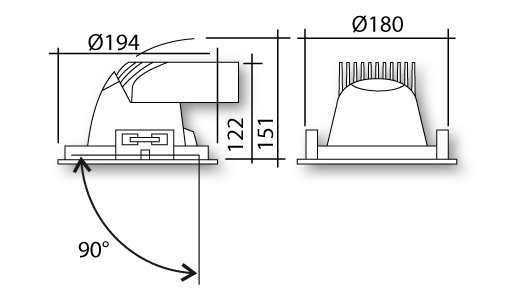

PROLED50 MDL19K Dimensions

PROLED50 MDL19K Dimensions

Note: All dimensions are in millimetres.

PROLED50 MDL19K Photometry

Please contact us for further information regarding this product.
