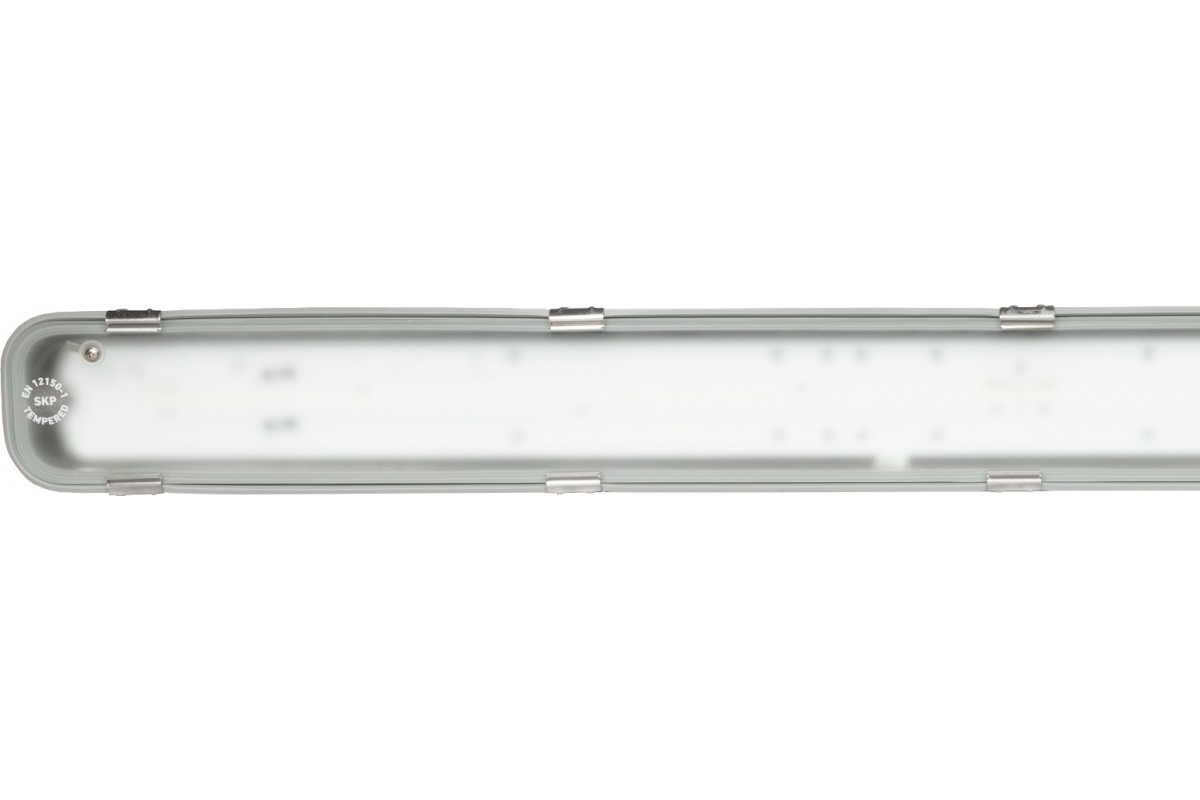

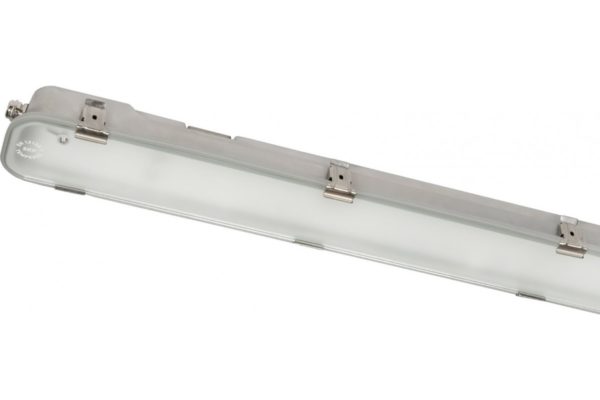

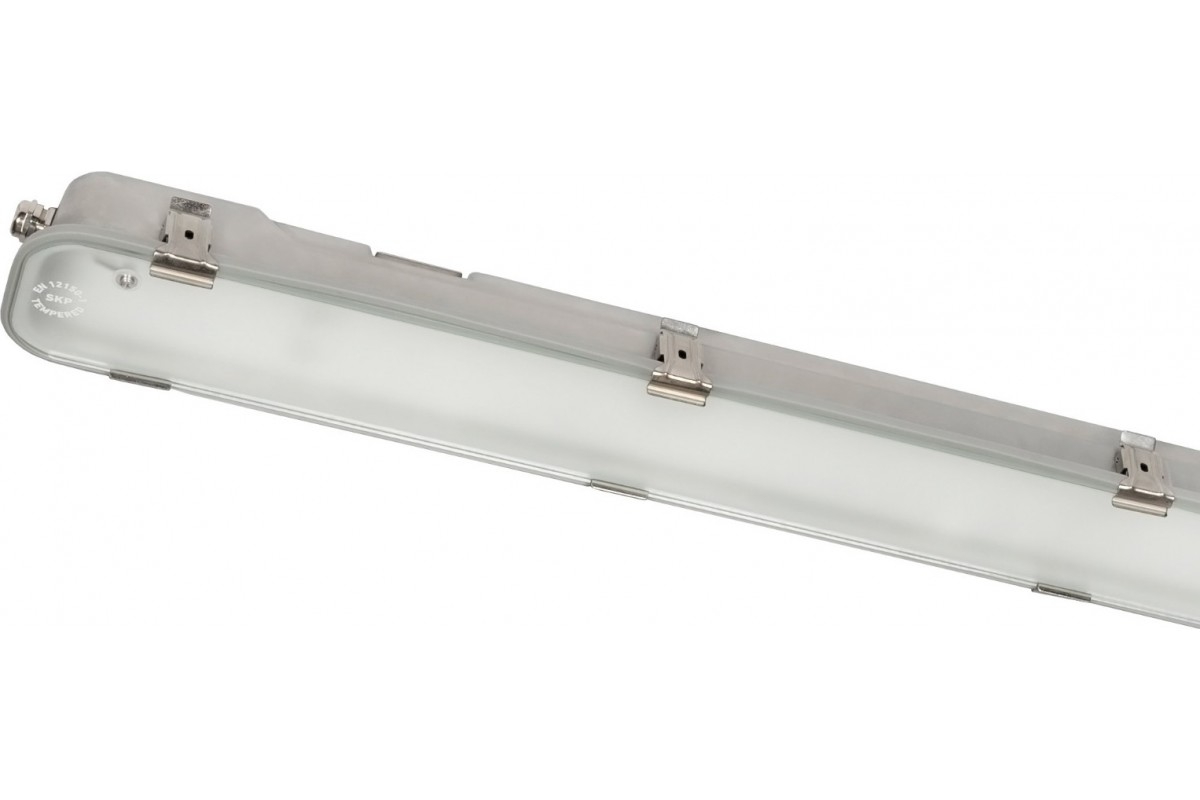

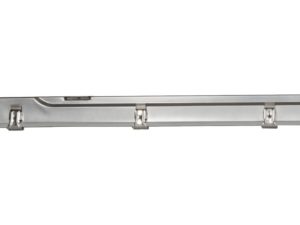

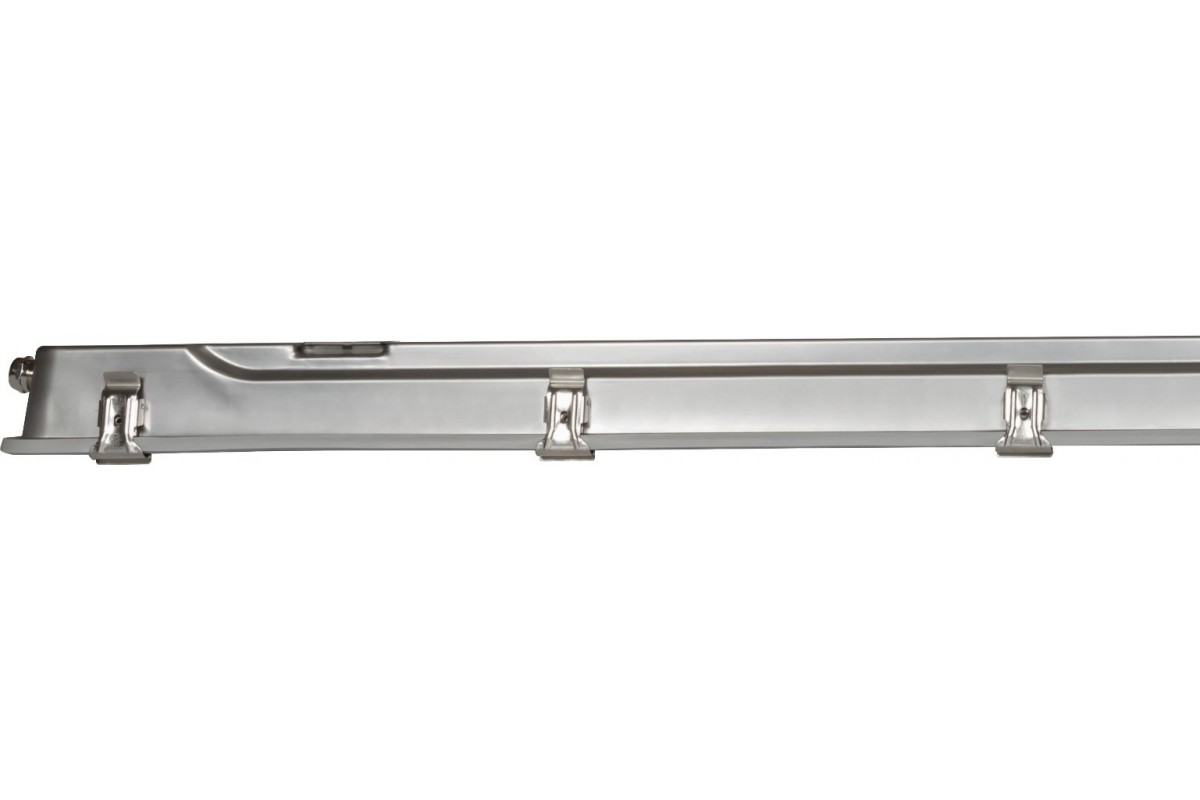

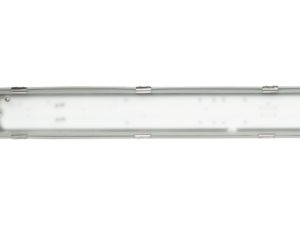

Engineered to perform reliably in chemically aggressive environments, the robust LED luminaire boasts an IP65 rating and features a raw stainless steel (SS304) housing paired with a frosted tempered glass diffuser. This combination delivers direct light distribution while providing excellent impact resistance.
Designed to withstand exposure to harsh cleaning agents, salts, acids, and mineral oils, the luminaire is perfectly suited for demanding industrial applications. Its construction includes a brass cable gland and a silicone sealing gasket to ensure dependable ingress protection. Supporting both surface and suspended mounting, it comes with a versatile installation kit featuring accessories for multiple configurations. Ideal for use in industrial facilities, warehouses, food processing areas, agricultural sites, and garages, this luminaire offers a durable and adaptable lighting solution for challenging environments.

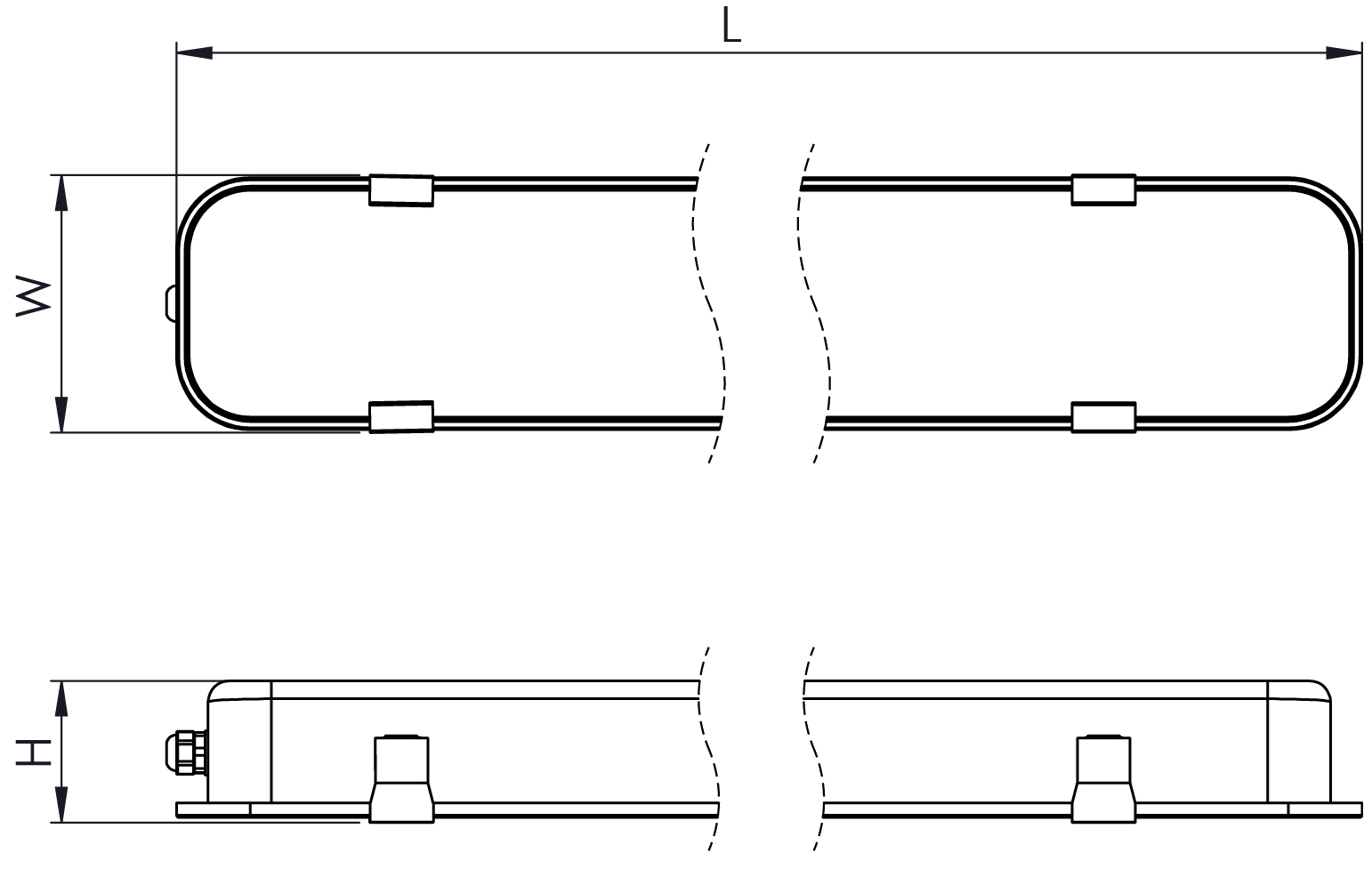

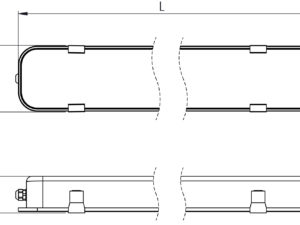

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| TUNEL224KA | 22 | 3424 | 156 | 4000K | 1290 | 120 | 67 | 4.3 |
| TUNEL284KA | 28 | 4202 | 153 | 4000K | 1290 | 120 | 67 | 4.3 |
| TUNEL334KA | 33 | 4978 | 151 | 4000K | 1290 | 120 | 67 | 4.3 |
| TUNEL434KA | 43 | 6568 | 152 | 4000K | 1290 | 120 | 67 | 4.3 |
| TUNEL344KB | 34 | 5252 | 154 | 4000K | 1600 | 120 | 67 | 5.3 |
| TUNEL414KB | 41 | 6222 | 153 | 4000K | 1600 | 120 | 67 | 5.3 |
| TUNEL544KB | 54 | 8211 | 152 | 4000K | 1600 | 120 | 67 | 5.3 |
| TUNEL714KB | 71 | 11099 | 156 | 3000K | 1600 | 120 | 67 | 5.3 |
