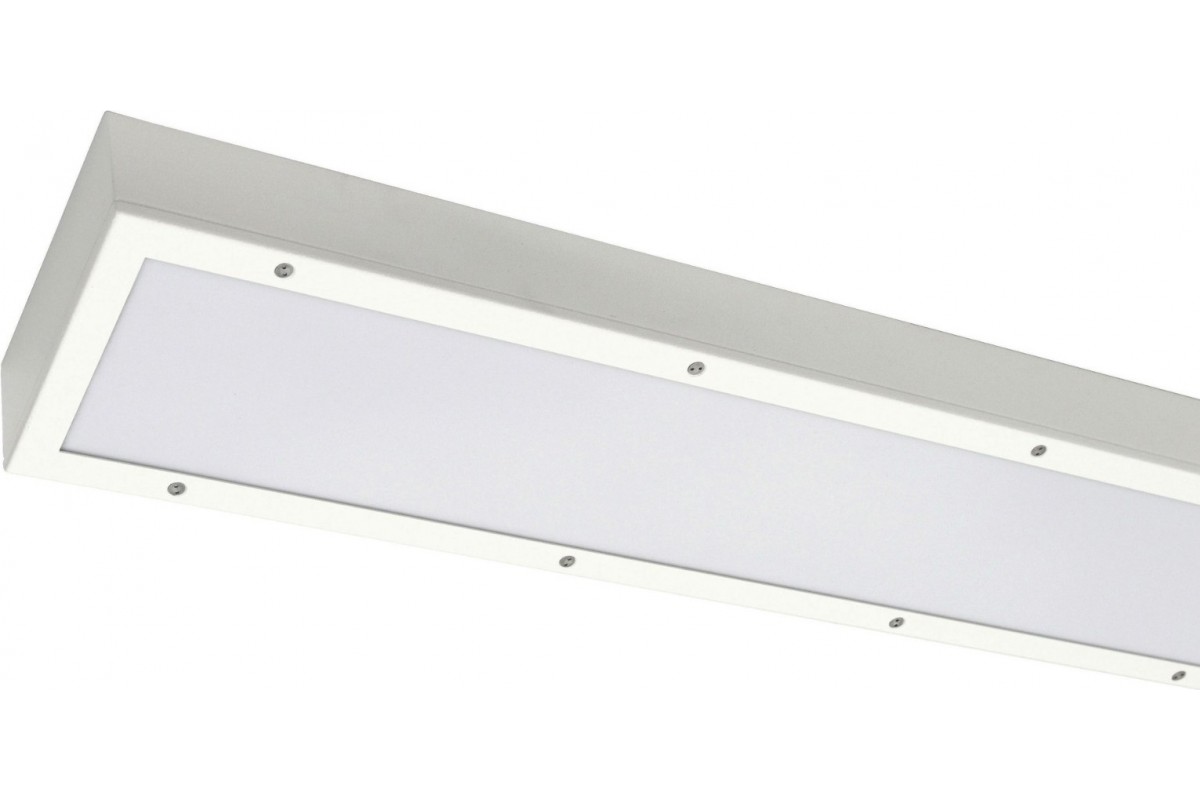

Built to withstand demanding environments where durability and tamper resistance are essential, the surface-mounted anti-vandal LED luminaire offers robust and secure illumination. Direct light is delivered through a UV-stable, vandal-resistant opal polycarbonate diffuser, all encased within a zinc-plated steel housing finished in clean white (RAL 9010).
Enhanced protection comes from a reinforced frame secured with stainless-steel security screws, ensuring reliability in high-risk areas. Designed primarily for ceiling installation, it is ideal for public spaces, transport terminals, parking facilities, metro stations, prisons, psychiatric institutions, and underground passages where safety and durability cannot be compromised.

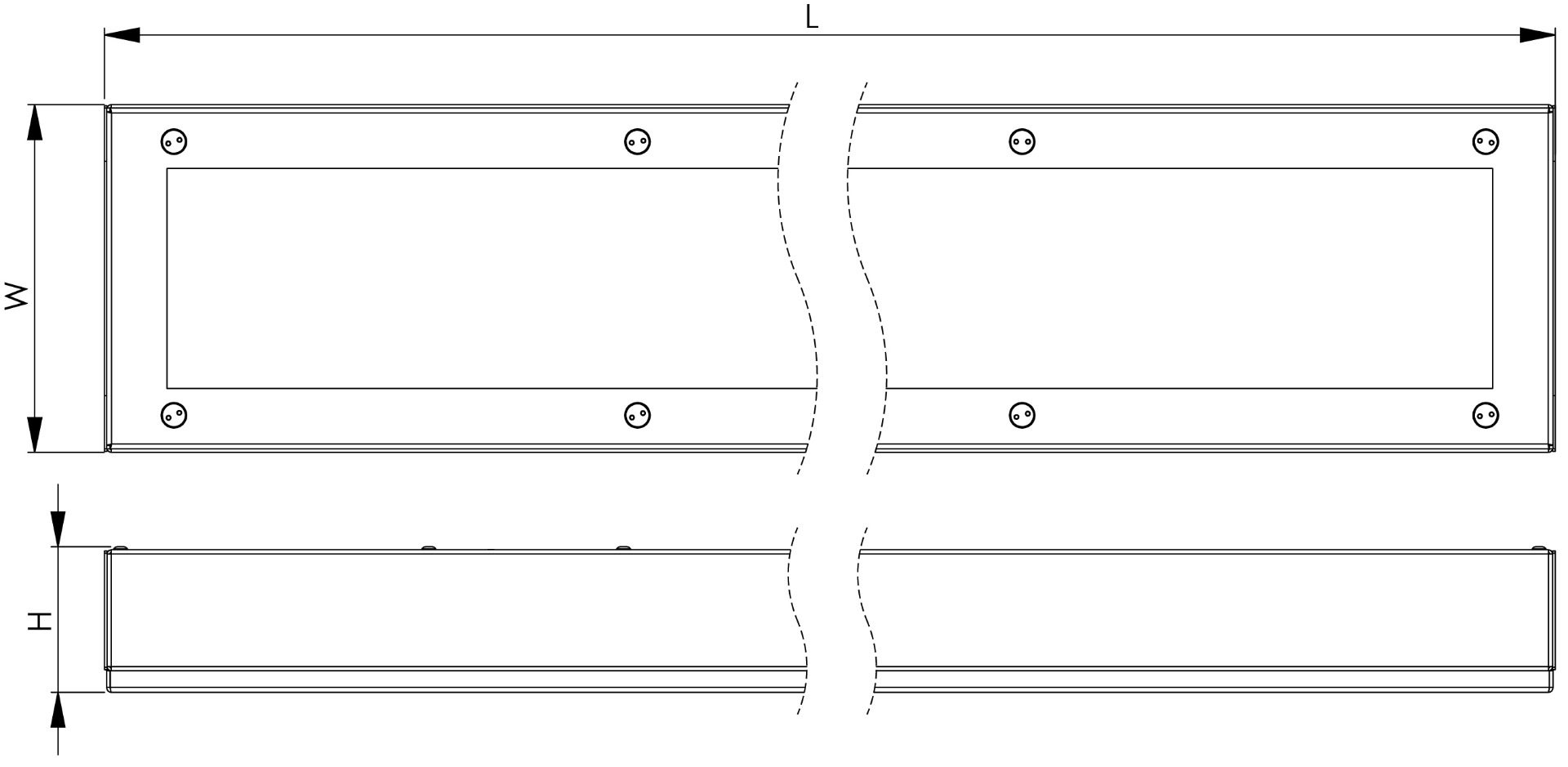

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| TRL104KA | 10 | 1226 | 120 | 4000K | 380 | 150 | 65 | 3 |
| TRL134KA | 13 | 1548 | 121 | 4000K | 380 | 150 | 65 | 3 |
| TRL144KB | 14 | 1685 | 122 | 4000K | 660 | 150 | 65 | 3.5 |
| TRL194KB | 19 | 2334 | 124 | 4000K | 660 | 150 | 65 | 3.5 |
| TRL224KB | 22 | 2899 | 133 | 4000K | 660 | 150 | 65 | 3.5 |
| TRL204KC | 20 | 2528 | 126 | 4000K | 940 | 150 | 65 | 5.5 |
| TRL284KC | 28 | 3502 | 127 | 4000K | 940 | 150 | 65 | 5.5 |
| TRL334KC | 33 | 4214 | 130 | 4000K | 940 | 150 | 65 | 5.5 |
| TRL254KD | 25 | 3113 | 127 | 4000K | 1220 | 150 | 65 | 7.4 |
| TRL374KD | 37 | 4668 | 126 | 4000K | 1220 | 150 | 65 | 7.4 |
| TRL434KD | 43 | 5619 | 130 | 4000K | 1220 | 150 | 65 | 7.4 |
| TRL314KE | 31 | 3891 | 127 | 4000K | 1500 | 150 | 65 | 9.2 |
| TRL414KE | 41 | 5295 | 130 | 4000K | 1500 | 150 | 65 | 9.2 |
| TRL464KE | 46 | 5805 | 128 | 4000K | 1500 | 150 | 65 | 9.2 |
| TRL544KE | 54 | 7023 | 130 | 4000K | 1500 | 150 | 65 | 9.2 |
