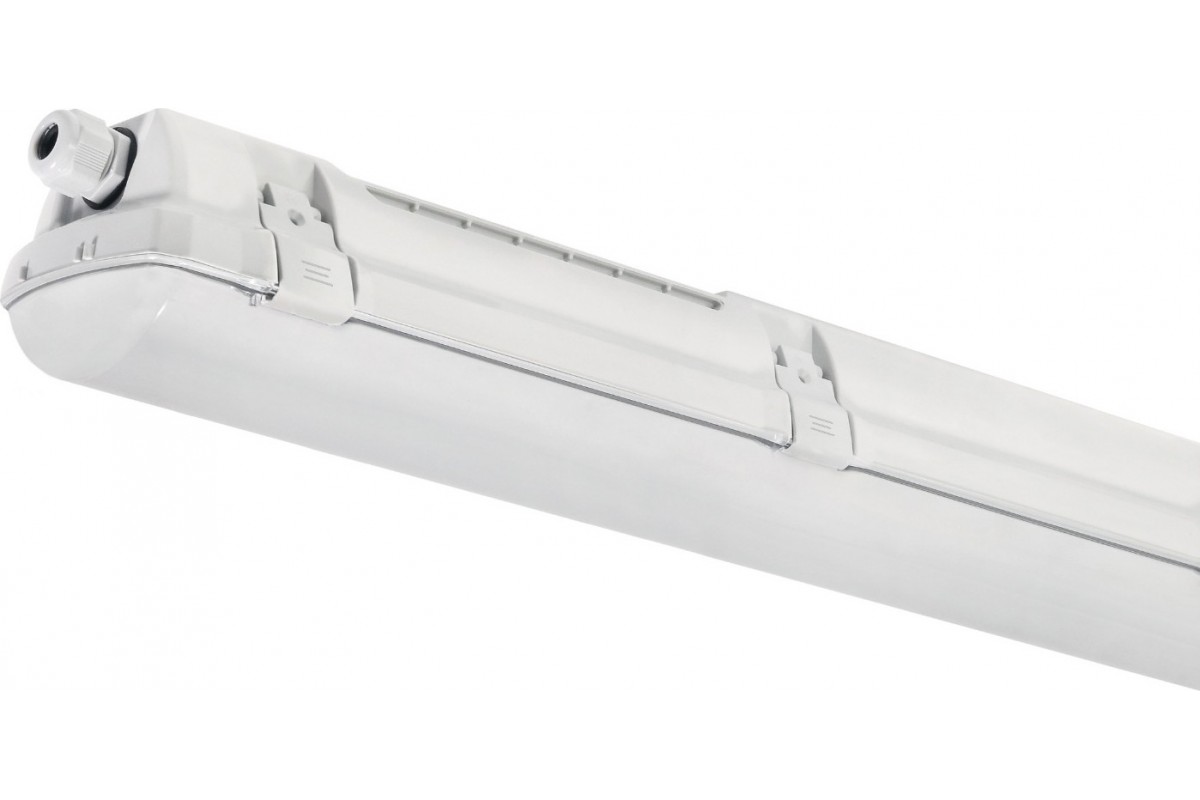

Engineered for durability and versatility, the LED luminaire delivers direct light through a UV-stable, impact-resistant opal polycarbonate diffuser, housed in a tough light grey polycarbonate casing ideal for demanding environments.
Suitable for both surface and suspended installations, it is designed for use in indoor and sheltered outdoor spaces. Equipped with mounting brackets and suspension hooks, the fixture offers flexible installation options on ceilings or walls. Perfectly suited for public spaces, industrial settings, warehouses, halls, parking areas, sports facilities, and transport terminals, it combines robust construction with reliable performance.

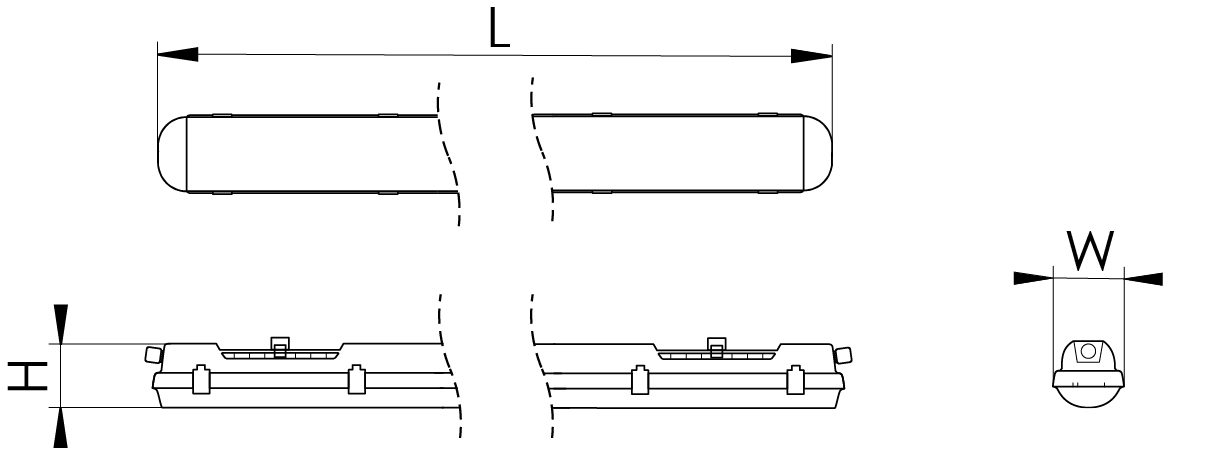

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| TPB94KA | 9 | 1464 | 157 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB114KA | 11 | 1654 | 153 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB144KA | 14 | 2197 | 157 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB164KA | 16 | 2481 | 158 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB184KA | 18 | 2929 | 161 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB214KA | 21 | 3307 | 160 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB224KA | 22 | 3661 | 165 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB264KA | 26 | 4134 | 160 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB264KA | 26 | 4393 | 167 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB304KA | 30 | 4961 | 164 | 4000K | 615 | 98 | 84 | 0.9 |
| TPB184KB | 18 | 2929 | 163 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB214KB | 21 | 3307 | 158 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB264KB | 26 | 4393 | 167 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB304KB | 30 | 4961 | 164 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB344KB | 34 | 5858 | 174 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB394KB | 39 | 6615 | 171 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB424KB | 42 | 7322 | 176 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB474KB | 47 | 8269 | 175 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB494KB | 49 | 8787 | 178 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB574KB | 57 | 9922 | 175 | 4000K | 1175 | 98 | 84 | 1.7 |
| TPB324KC | 32 | 5492 | 174 | 4000K | 1455 | 98 | 84 | 2 |
| TPB364KC | 36 | 6202 | 171 | 4000K | 1455 | 98 | 84 | 2 |
| TPB424KC | 42 | 7322 | 176 | 4000K | 1455 | 98 | 84 | 2 |
| TPB474KC | 47 | 8269 | 175 | 4000K | 1455 | 98 | 84 | 2 |
| TPB514KC | 51 | 9153 | 178 | 4000K | 1455 | 98 | 84 | 2 |
| TPB594KC | 59 | 10336 | 175 | 4000K | 1455 | 98 | 84 | 2 |
| TPB624KC | 62 | 10983 | 178 | 4000K | 1455 | 98 | 84 | 2 |
| TPB714KC | 71 | 12403 | 175 | 4000K | 1455 | 98 | 84 | 2 |
