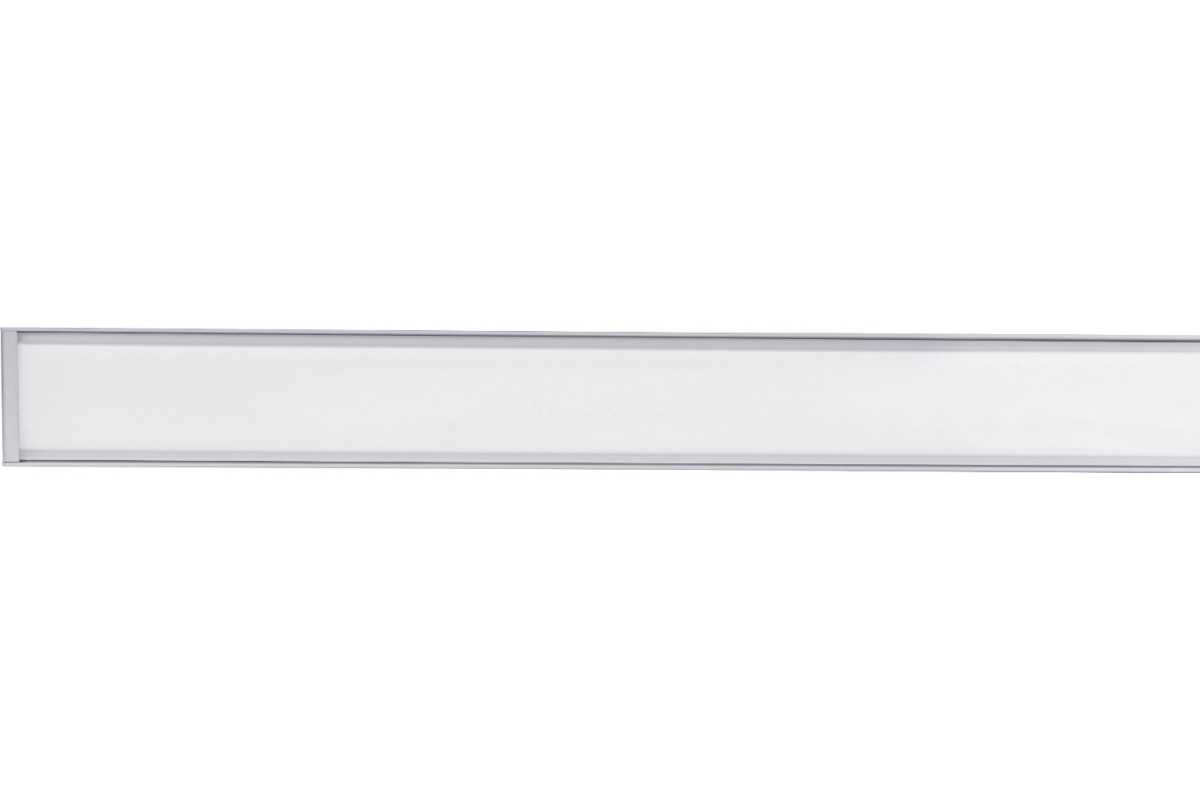

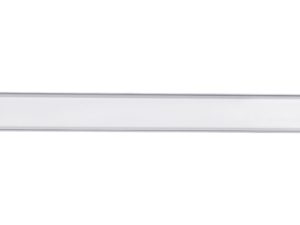

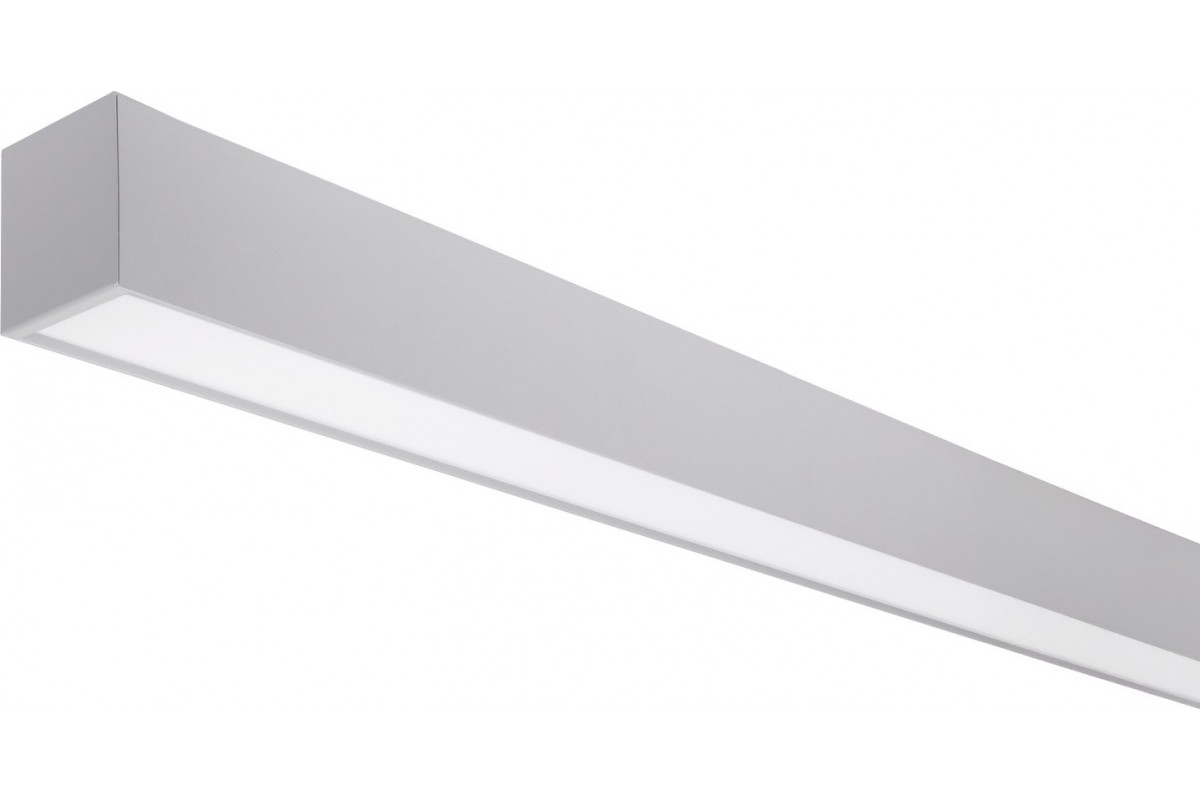

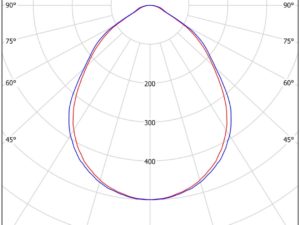

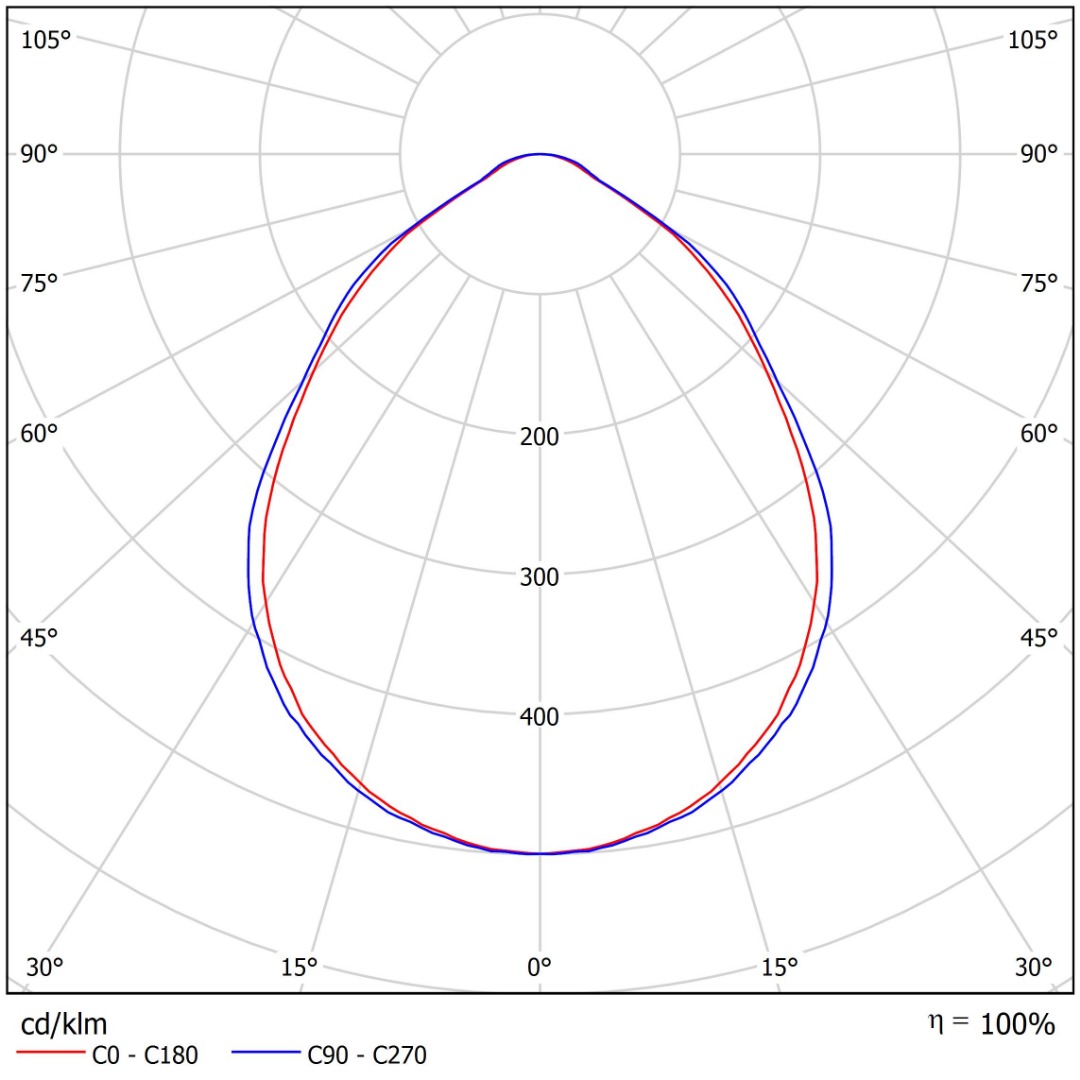

This surface-mounted or suspended middle-profile LED luminaire provides direct light distribution with a low-glare matt micro-prismatic polycarbonate diffuser for comfortable, even illumination. Its aluminium housing, finished in light grey (RAL 9006S), combines durability with a sleek, contemporary design that complements modern interior spaces.
Engineered for versatile installation, the fixture can be mounted on the ceiling or suspended, with wire, cable, and cap components available separately to suit different setups. Ideal for offices, educational facilities, corridors, retail environments, public areas, and hotels, it delivers energy-efficient performance while maintaining a refined aesthetic.

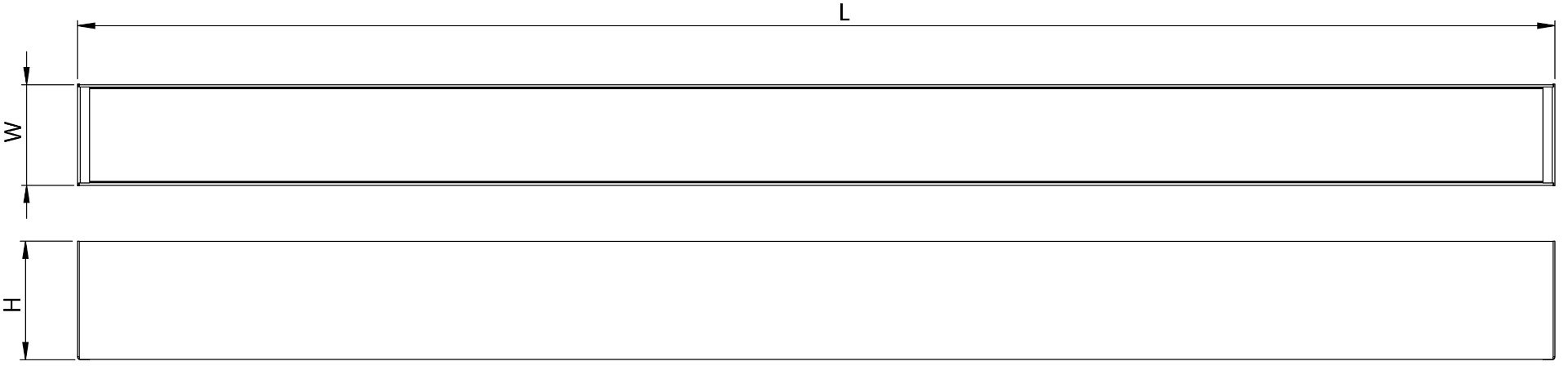

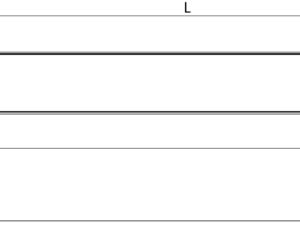

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SYSE174KA/UGR | 7 | 806 | 119 | 4000K | 573 | 59 | 69 | 1.3 |
| SYSE2104KA/UGR | 10 | 1110 | 117 | 4000K | 573 | 59 | 69 | 1.3 |
| SYSE3144KA/UGR | 14 | 1551 | 112 | 4000K | 573 | 59 | 69 | 1.3 |
| SYSE4204KA/UGR | 20 | 2326 | 117 | 4000K | 573 | 59 | 69 | 1.3 |
| SYSE184KB/UGR | 8 | 1007 | 123 | 4000K | 713 | 59 | 69 | 1.6 |
| SYSE2124KB/UGR | 12 | 1387 | 120 | 4000K | 713 | 59 | 69 | 1.6 |
| SYSE3174KB/UGR | 17 | 1939 | 115 | 4000K | 713 | 59 | 69 | 1.6 |
| SYSE4254KB/UGR | 25 | 2908 | 118 | 4000K | 713 | 59 | 69 | 1.6 |
| SYSE1104KC/UGR | 10 | 1208 | 120 | 4000K | 853 | 59 | 69 | 1.8 |
| SYSE2144KC/UGR | 14 | 1664 | 119 | 4000K | 853 | 59 | 69 | 1.8 |
| SYSE3204KC/UGR | 20 | 2326 | 115 | 4000K | 853 | 59 | 69 | 1.8 |
| SYSE4304KC/UGR | 30 | 3490 | 118 | 4000K | 853 | 59 | 69 | 1.8 |
| SYSE1124KD/UGR | 12 | 1410 | 122 | 4000K | 993 | 59 | 69 | 2.1 |
| SYSE2164KD/UGR | 16 | 1942 | 122 | 4000K | 993 | 59 | 69 | 2.1 |
| SYSE3234KD/UGR | 23 | 2714 | 118 | 4000K | 993 | 59 | 69 | 2.1 |
| SYSE1134KE/UGR | 13 | 1611 | 123 | 4000K | 1133 | 59 | 69 | 2.3 |
| SYSE2184KE/UGR | 18 | 2219 | 123 | 4000K | 1133 | 59 | 69 | 2.3 |
| SYSE3264KE/UGR | 26 | 3102 | 118 | 4000K | 1133 | 59 | 69 | 2.3 |
| SYSE4384KE/UGR | 38 | 4653 | 122 | 4000K | 1133 | 59 | 69 | 2.3 |
| SYSE1154KF/UGR | 15 | 1813 | 125 | 4000K | 1273 | 59 | 69 | 2.6 |
| SYSE2204KF/UGR | 20 | 2496 | 124 | 4000K | 1273 | 59 | 69 | 2.6 |
| SYSE3304KF/UGR | 30 | 3490 | 118 | 4000K | 1273 | 59 | 69 | 2.6 |
| SYSE1174KG/UGR | 17 | 2014 | 121 | 4000K | 1413 | 59 | 69 | 2.6 |
| SYSE2234KG/UGR | 23 | 2774 | 121 | 4000K | 1413 | 59 | 69 | 2.6 |
| SYSE3324KG/UGR | 32 | 3877 | 122 | 4000K | 1413 | 59 | 69 | 2.6 |
| SYSE4484KG/UGR | 48 | 5816 | 122 | 4000K | 1413 | 59 | 69 | 2.6 |
| SYSE1194KH/UGR | 19 | 2417 | 125 | 4000K | 1693 | 59 | 69 | 3.1 |
| SYSE2274KH/UGR | 27 | 3329 | 122 | 4000K | 1693 | 59 | 69 | 3.1 |
| SYSE3384KH/UGR | 38 | 4653 | 122 | 4000K | 1693 | 59 | 69 | 3.1 |
| SYSE4574KH/UGR | 57 | 6979 | 122 | 4000K | 1693 | 59 | 69 | 3.1 |
| SYSE1224KI/UGR | 22 | 2819 | 126 | 4000K | 1973 | 59 | 69 | 3.4 |
| SYSE2324KI/UGR | 32 | 3883 | 123 | 4000K | 1973 | 59 | 69 | 3.4 |
| SYSE3444KI/UGR | 44 | 5428 | 122 | 4000K | 1973 | 59 | 69 | 3.4 |
