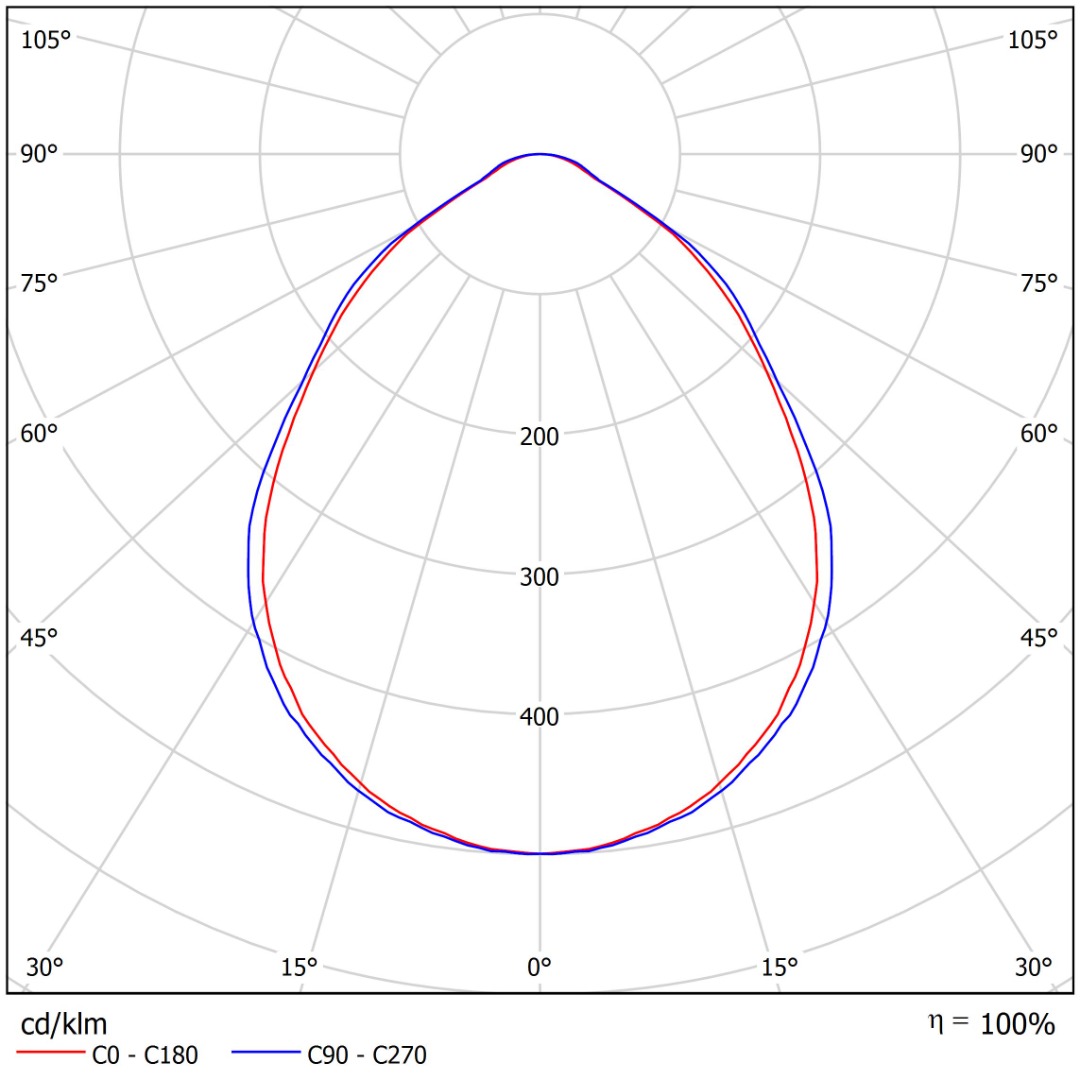

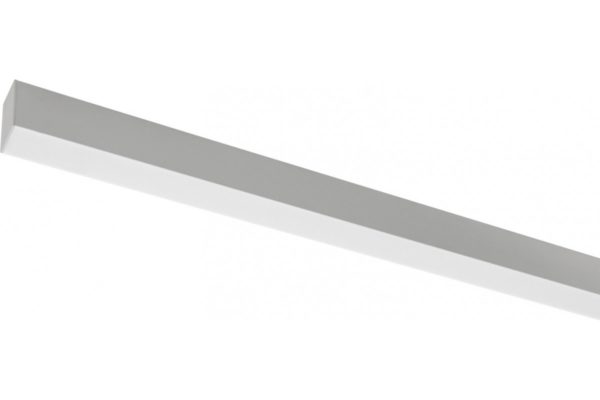

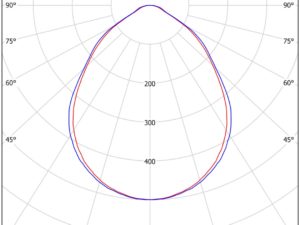

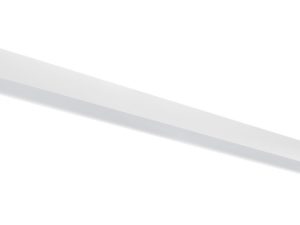

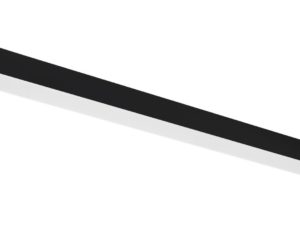

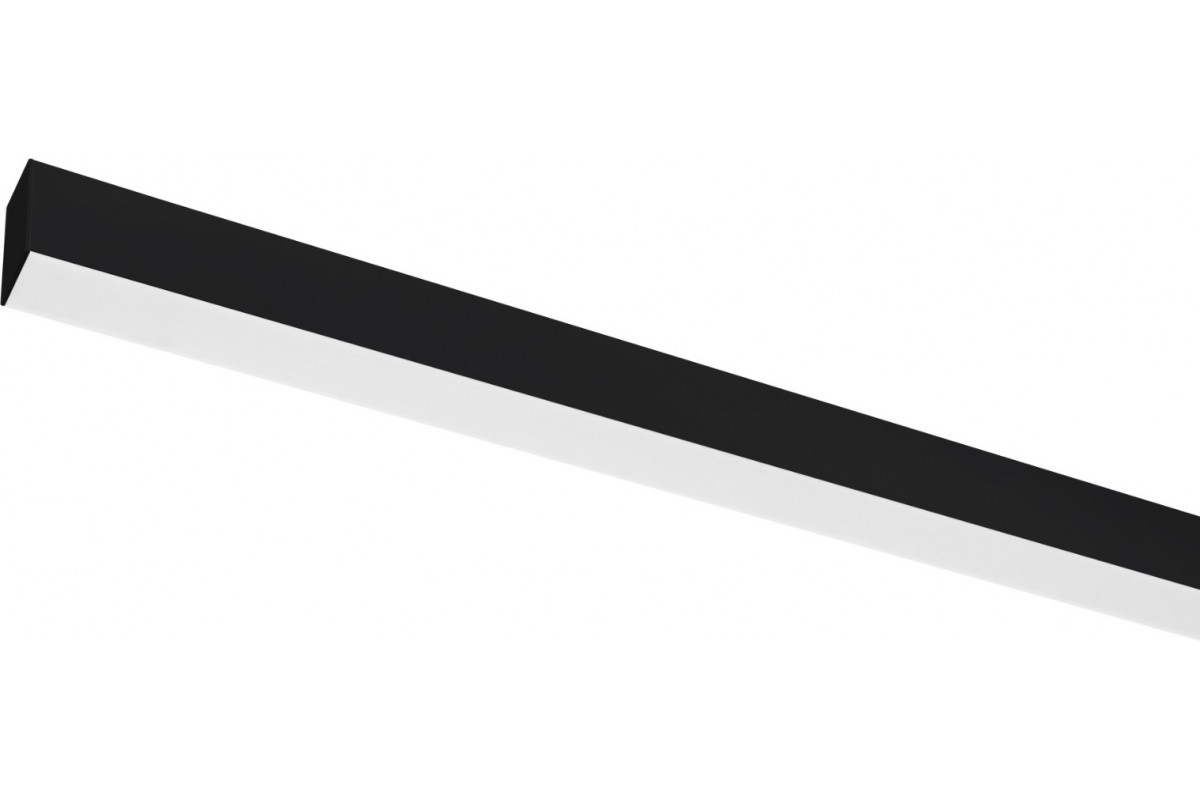

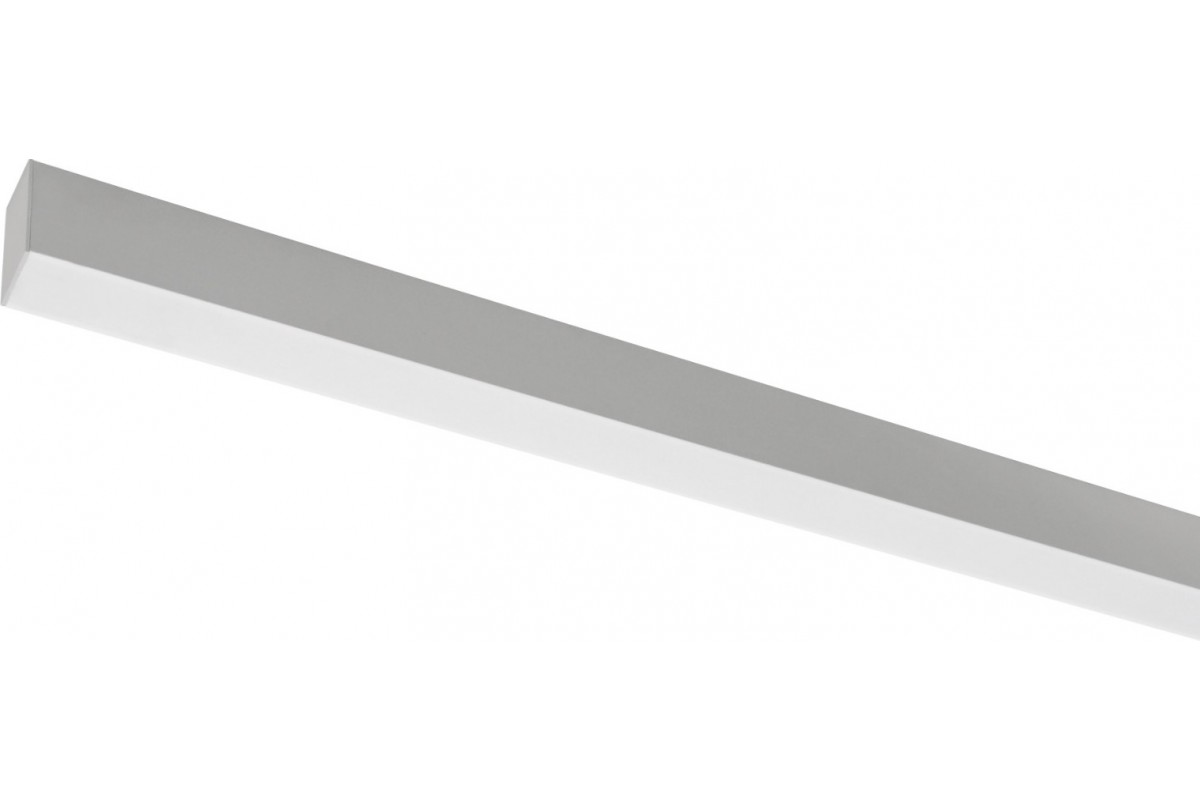

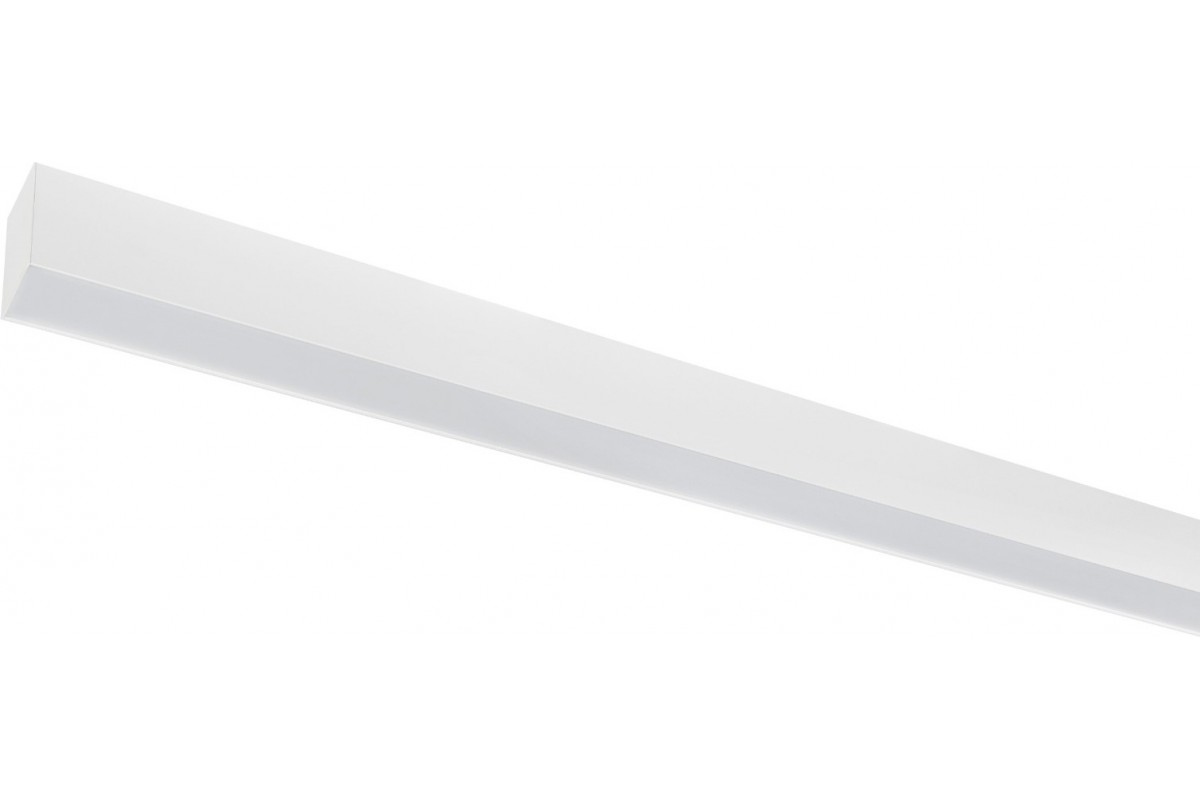

This surface-mounted or suspended slim-profile LED luminaire provides direct light distribution with a low-glare matt micro-prismatic polycarbonate diffuser for comfortable, uniform illumination. Its aluminium housing, finished in light grey (RAL 9006S), combines durability with a modern, streamlined design that complements contemporary interiors.
Engineered for versatile installation, the fixture can be ceiling-mounted or suspended, with wire, cable, and cap components available separately to suit different setups. Ideal for offices, educational facilities, corridors, retail spaces, public areas, and hotels, it delivers energy-efficient performance while maintaining a sleek, refined aesthetic.

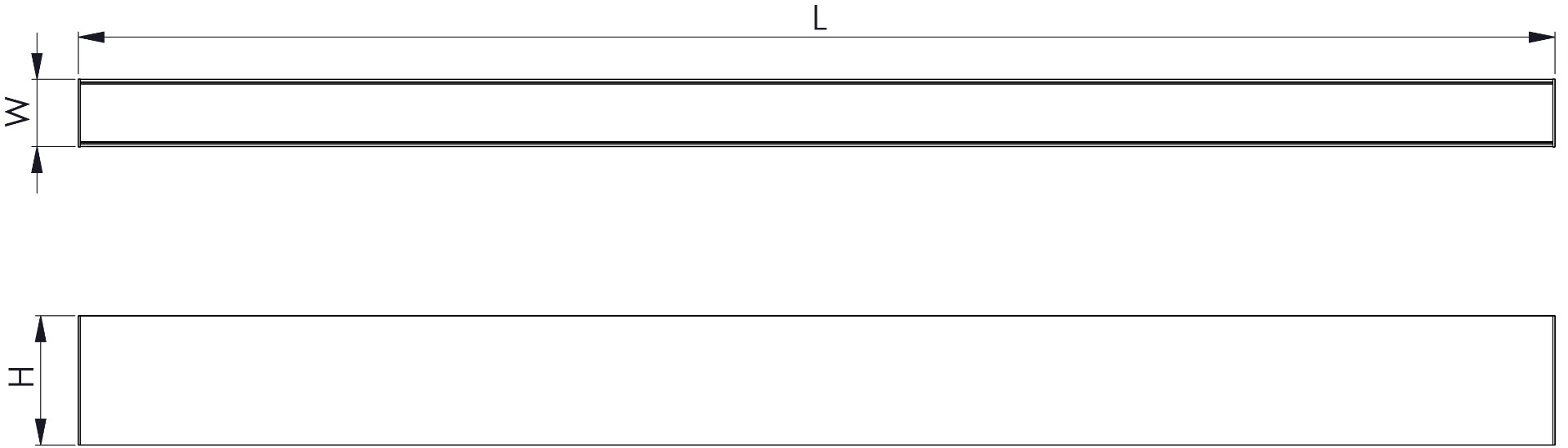

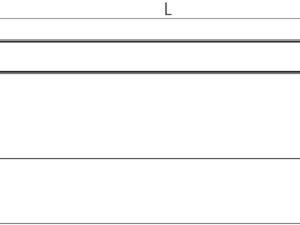

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SYSD174KA/UGR | 7 | 702 | 103 | 4000K | 577 | 39 | 75 | 1.3 |
| SYSD2104KA/UGR | 10 | 967 | 102 | 4000K | 577 | 39 | 75 | 1.3 |
| SYSD3144KA/UGR | 14 | 1352 | 98 | 4000K | 577 | 39 | 75 | 1.3 |
| SYSD4204KA/UGR | 20 | 2027 | 102 | 4000K | 577 | 39 | 75 | 1.3 |
| SYSD184KB/UGR | 8 | 877 | 107 | 4000K | 717 | 39 | 75 | 1.6 |
| SYSD2124KB/UGR | 12 | 1209 | 104 | 4000K | 717 | 39 | 75 | 1.6 |
| SYSD3174KB/UGR | 17 | 1689 | 101 | 4000K | 717 | 39 | 75 | 1.6 |
| SYSD4254KB/UGR | 25 | 2534 | 103 | 4000K | 717 | 39 | 75 | 1.6 |
| SYSD1104KC/UGR | 10 | 1053 | 104 | 4000K | 857 | 39 | 75 | 1.8 |
| SYSD2144KC/UGR | 14 | 1450 | 104 | 4000K | 857 | 39 | 75 | 1.8 |
| SYSD3204KC/UGR | 20 | 2027 | 100 | 4000K | 857 | 39 | 75 | 1.8 |
| SYSD4304KC/UGR | 30 | 3041 | 103 | 4000K | 857 | 39 | 75 | 1.8 |
| SYSD1124KD/UGR | 12 | 1228 | 106 | 4000K | 997 | 39 | 75 | 2.1 |
| SYSD2164KD/UGR | 16 | 1692 | 106 | 4000K | 997 | 39 | 75 | 2.1 |
| SYSD3234KD/UGR | 23 | 2365 | 103 | 4000K | 997 | 39 | 75 | 2.1 |
| SYSD1134KE/UGR | 13 | 1404 | 107 | 4000K | 1137 | 39 | 75 | 2.3 |
| SYSD2184KE/UGR | 18 | 1934 | 107 | 4000K | 1137 | 39 | 75 | 2.3 |
| SYSD3264KE/UGR | 26 | 2703 | 103 | 4000K | 1137 | 39 | 75 | 2.3 |
| SYSD4384KE/UGR | 38 | 4055 | 106 | 4000K | 1137 | 39 | 75 | 2.3 |
| SYSD1154KF/UGR | 15 | 1579 | 109 | 4000K | 1277 | 39 | 75 | 2.6 |
| SYSD2204KF/UGR | 20 | 2175 | 108 | 4000K | 1277 | 39 | 75 | 2.6 |
| SYSD3304KF/UGR | 30 | 3041 | 103 | 4000K | 1277 | 39 | 75 | 2.6 |
| SYSD1174KG/UGR | 17 | 1755 | 106 | 4000K | 1417 | 39 | 75 | 2.6 |
| SYSD2234KG/UGR | 23 | 2417 | 105 | 4000K | 1417 | 39 | 75 | 2.6 |
| SYSD3324KG/UGR | 32 | 3379 | 107 | 4000K | 1417 | 39 | 75 | 2.6 |
| SYSD4484KG/UGR | 48 | 5068 | 106 | 4000K | 1417 | 39 | 75 | 2.6 |
| SYSD1194KH/UGR | 19 | 2106 | 109 | 4000K | 1697 | 39 | 75 | 3.1 |
| SYSD2274KH/UGR | 27 | 2901 | 106 | 4000K | 1697 | 39 | 75 | 3.1 |
| SYSD3384KH/UGR | 38 | 4055 | 106 | 4000K | 1697 | 39 | 75 | 3.1 |
| SYSD4574KH/UGR | 57 | 6082 | 107 | 4000K | 1697 | 39 | 75 | 3.1 |
| SYSD1224KI/UGR | 22 | 2457 | 110 | 4000K | 1977 | 39 | 75 | 3.4 |
| SYSD2324KI/UGR | 32 | 3384 | 107 | 4000K | 1977 | 39 | 75 | 3.4 |
| SYSD3444KI/UGR | 44 | 4730 | 107 | 4000K | 1977 | 39 | 75 | 3.4 |
