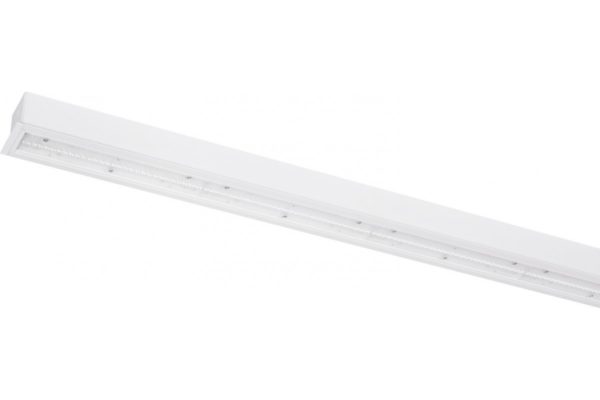

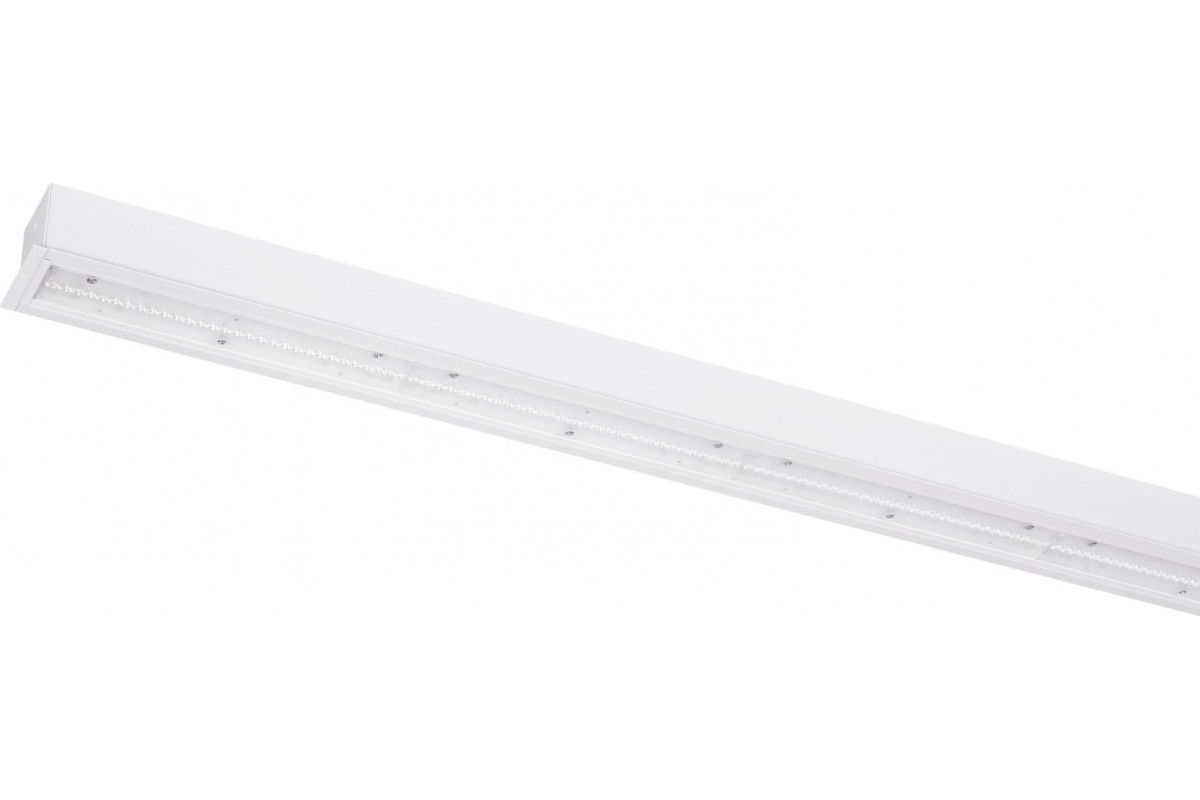

This recessed mounted aluminium profile LED luminaire is designed for seamless in-line connection, delivering precise direct light distribution through a high-performance lens system.
The robust aluminium housing, finished in white (RAL 9003S), combines durability with a clean, modern aesthetic, ensuring a refined appearance in any interior setting.

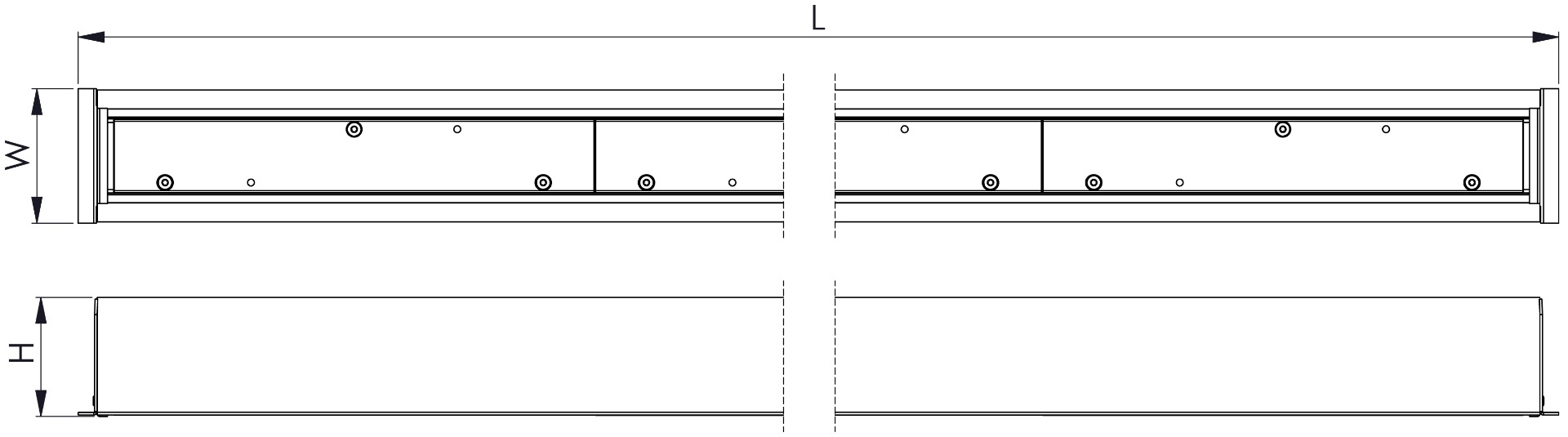

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SYSC1224K | 22 | 3804 | 175 | 4000K | 1167 | 77 | 68 | 2.3 |
| SYSC2324K | 32 | 5317 | 168 | 4000K | 1167 | 77 | 68 | 2.3 |
| SYSC3304K | 30 | 5492 | 184 | 4000K | 1167 | 77 | 68 | 2.3 |
| SYSC4364K | 36 | 6556 | 184 | 4000K | 1167 | 77 | 68 | 2.3 |
| SYSC5424K | 42 | 7560 | 182 | 4000K | 1167 | 77 | 68 | 2.3 |
| SYSC1274K | 27 | 4755 | 174 | 4000K | 1447 | 77 | 68 | 2.6 |
| SYSC2394K | 39 | 6647 | 171 | 4000K | 1447 | 77 | 68 | 2.6 |
| SYSC3374K | 37 | 6864 | 188 | 4000K | 1447 | 77 | 68 | 2.6 |
| SYSC4444K | 44 | 8195 | 186 | 4000K | 1447 | 77 | 68 | 2.6 |
| SYSC5514K | 51 | 9450 | 184 | 4000K | 1447 | 77 | 68 | 2.6 |
| SYSC1514K | 51 | 9510 | 185 | 4000K | 2850 | 77 | 68 | 5 |
| SYSC2754K | 75 | 13294 | 177 | 4000K | 2850 | 77 | 68 | 5 |
| SYSC3724K | 72 | 13729 | 190 | 4000K | 2850 | 77 | 68 | 5 |
| SYSC4864K | 86 | 16390 | 190 | 4000K | 2850 | 77 | 68 | 5 |
| SYSC51024K | 102 | 18901 | 186 | 4000K | 2850 | 77 | 68 | 5 |
