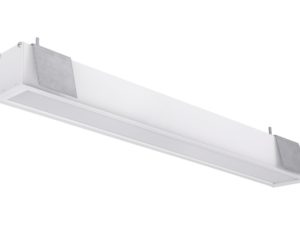

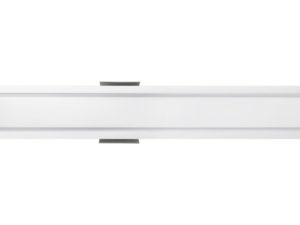

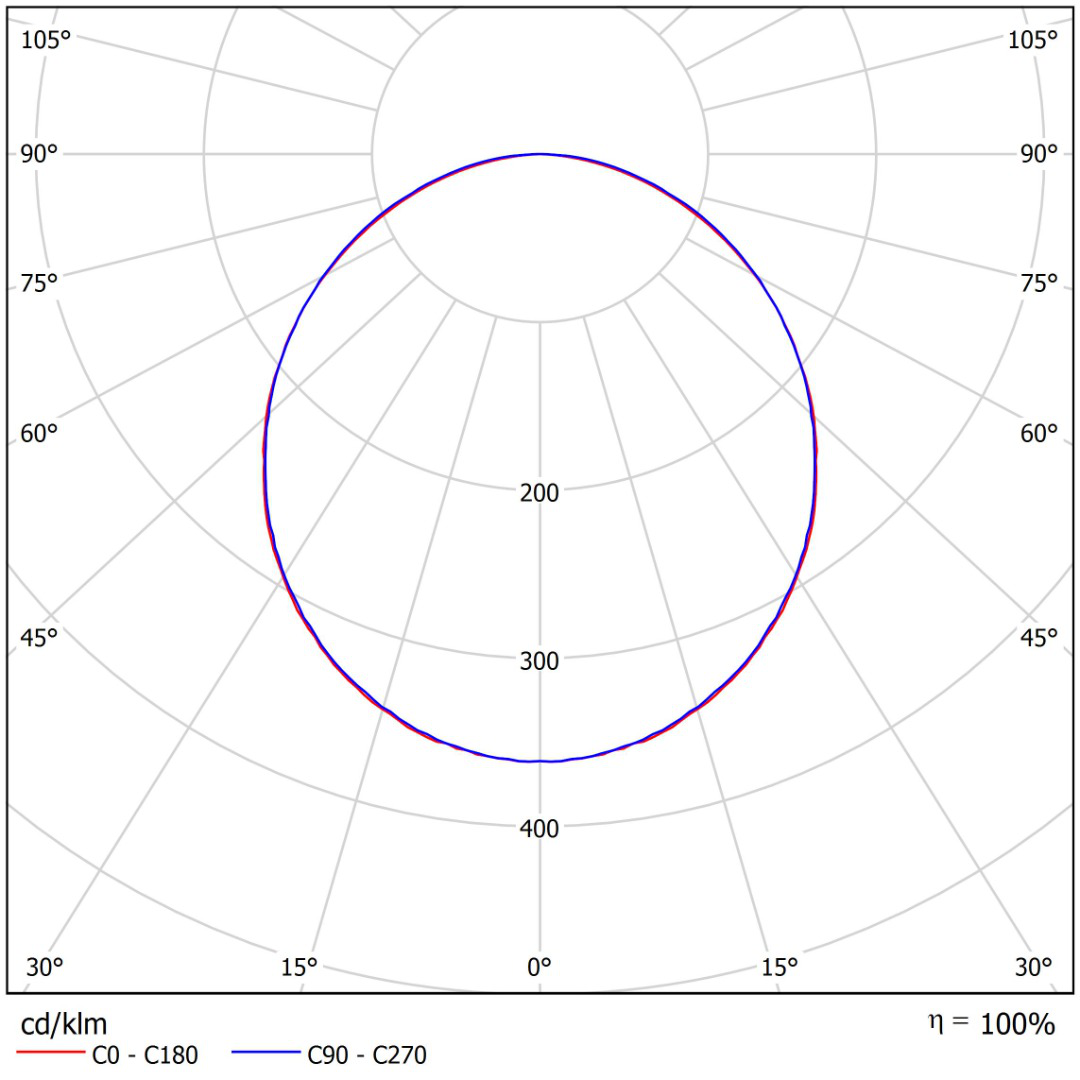

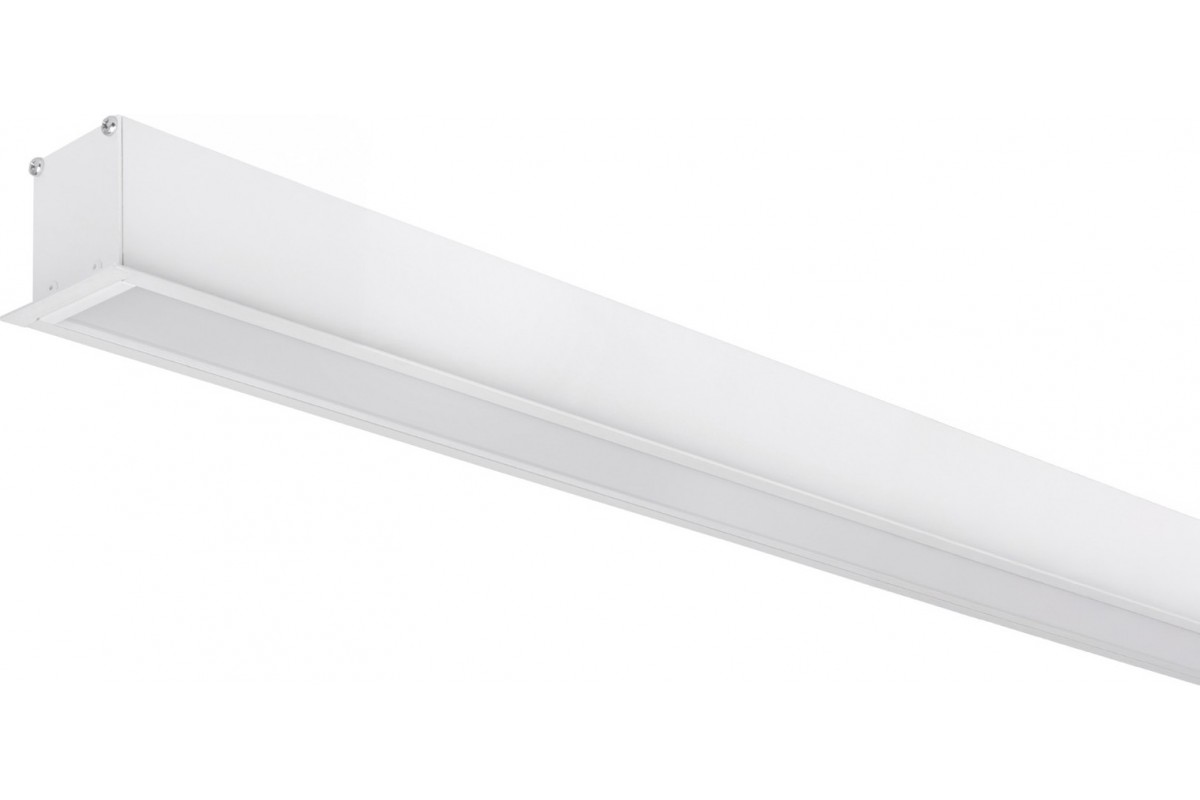

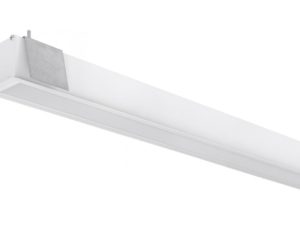

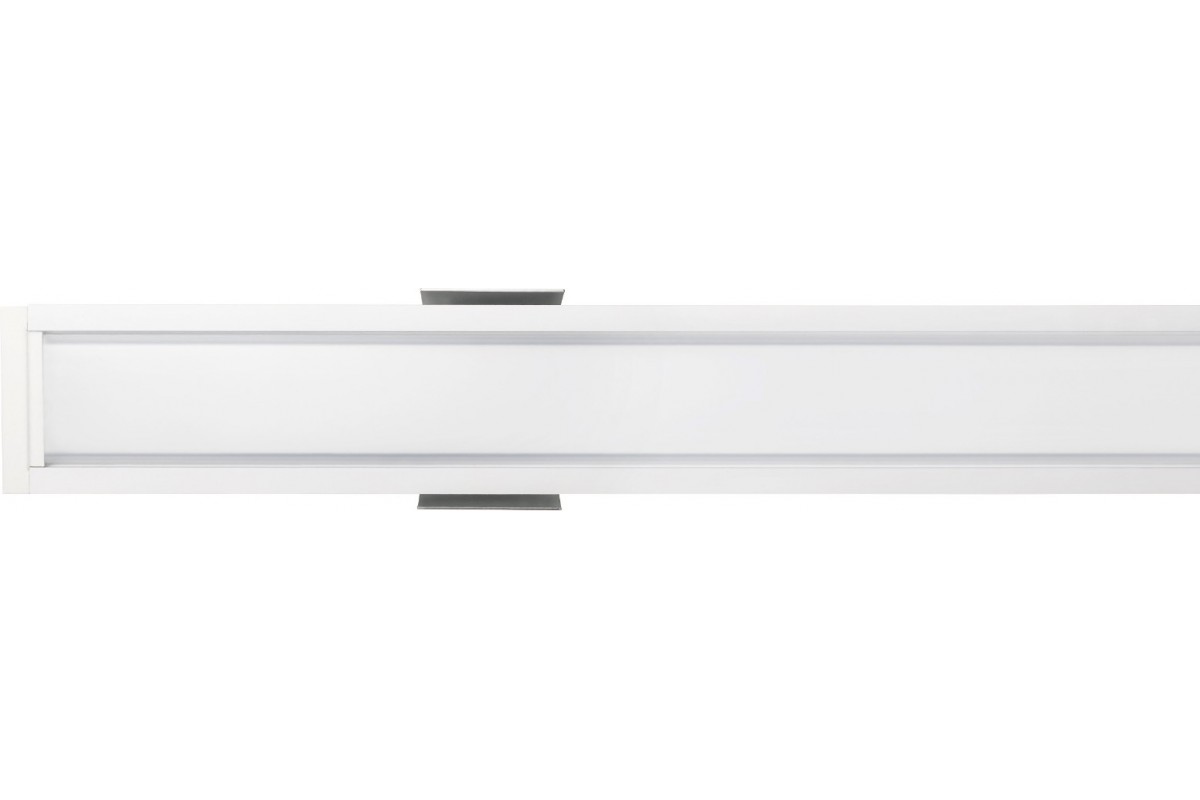

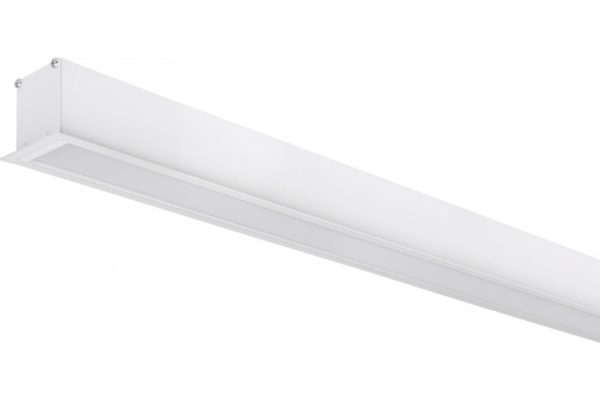

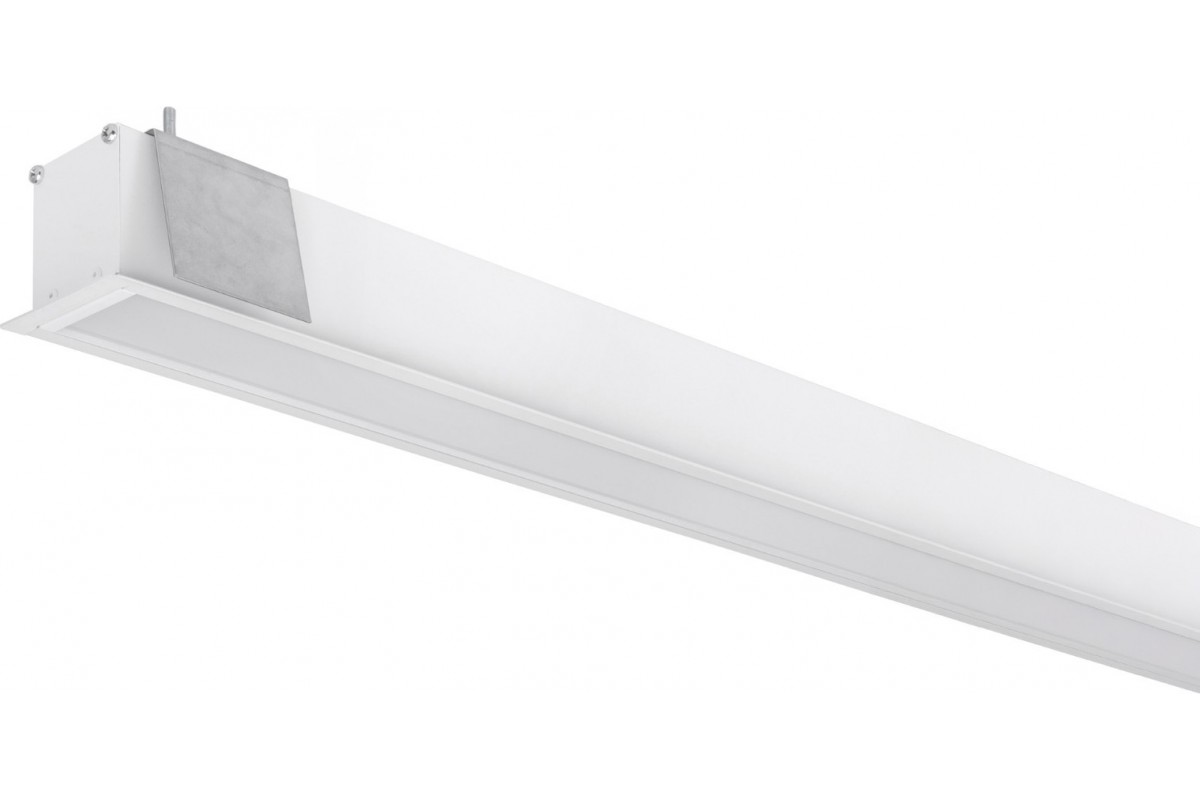

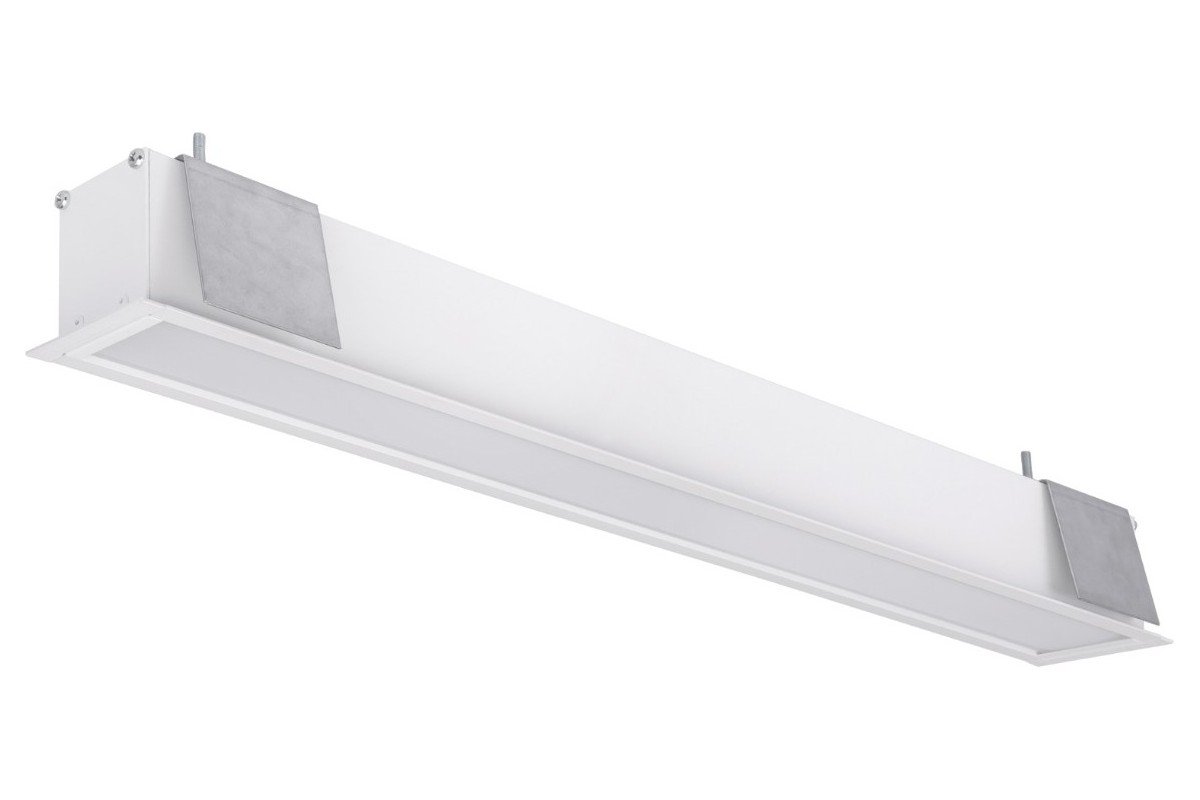

This recessed mounted medium-profile LED luminaire is designed for seamless in-line connection, delivering direct light distribution through an opal polycarbonate diffuser for soft, uniform illumination.
Its durable aluminium housing, finished in white (RAL 9003S), ensures a clean, modern aesthetic that integrates effortlessly into contemporary interiors.

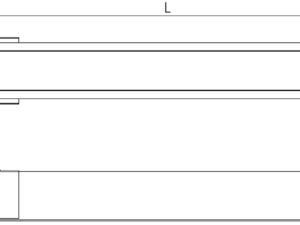

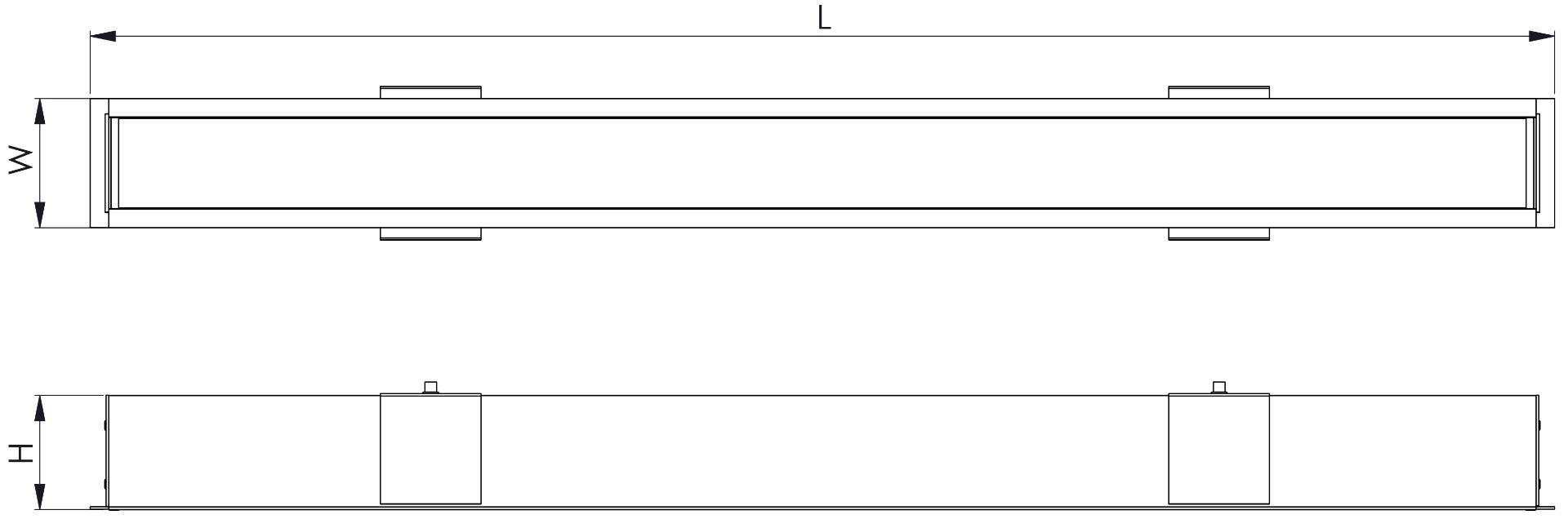

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SYSB174KA | 7 | 863 | 127 | 4000K | 592 | 77 | 68 | 1.5 |
| SYSB2104KA | 10 | 1189 | 125 | 4000K | 592 | 77 | 68 | 1.5 |
| SYSB3144KA | 14 | 1662 | 120 | 4000K | 592 | 77 | 68 | 1.5 |
| SYSB4204KA | 20 | 2493 | 125 | 4000K | 592 | 77 | 68 | 1.5 |
| SYSB184KB | 8 | 1079 | 132 | 4000K | 732 | 77 | 68 | 1.8 |
| SYSB2124KB | 12 | 1486 | 128 | 4000K | 732 | 77 | 68 | 1.8 |
| SYSB3174KB | 17 | 2077 | 124 | 4000K | 732 | 77 | 68 | 1.8 |
| SYSB4254KB | 25 | 3116 | 127 | 4000K | 732 | 77 | 68 | 1.8 |
| SYSB1104KC | 10 | 1295 | 128 | 4000K | 872 | 77 | 68 | 2 |
| SYSB2144KC | 14 | 1783 | 127 | 4000K | 872 | 77 | 68 | 2 |
| SYSB3204KC | 20 | 2493 | 123 | 4000K | 872 | 77 | 68 | 2 |
| SYSB4304KC | 30 | 3739 | 127 | 4000K | 872 | 77 | 68 | 2 |
| SYSB1124KD | 12 | 1510 | 130 | 4000K | 1012 | 77 | 68 | 2.3 |
| SYSB2164KD | 16 | 2080 | 131 | 4000K | 1012 | 77 | 68 | 2.3 |
| SYSB3234KD | 23 | 2908 | 126 | 4000K | 1012 | 77 | 68 | 2.3 |
| SYSB1134KE | 13 | 1726 | 132 | 4000K | 1152 | 77 | 68 | 2.5 |
| SYSB2184KE | 18 | 2378 | 132 | 4000K | 1152 | 77 | 68 | 2.5 |
| SYSB3264KE | 26 | 3323 | 126 | 4000K | 1152 | 77 | 68 | 2.5 |
| SYSB4384KE | 38 | 4985 | 131 | 4000K | 1152 | 77 | 68 | 2.5 |
| SYSB1154KF | 15 | 1942 | 134 | 4000K | 1292 | 77 | 68 | 2.7 |
| SYSB2204KF | 20 | 2675 | 132 | 4000K | 1292 | 77 | 68 | 2.7 |
| SYSB3304KF | 30 | 3739 | 126 | 4000K | 1292 | 77 | 68 | 2.7 |
| SYSB1174KG | 17 | 2158 | 130 | 4000K | 1432 | 77 | 68 | 2.9 |
| SYSB2234KG | 23 | 2972 | 129 | 4000K | 1432 | 77 | 68 | 2.9 |
| SYSB3324KG | 32 | 4154 | 131 | 4000K | 1432 | 77 | 68 | 2.9 |
| SYSB4484KG | 48 | 6231 | 131 | 4000K | 1432 | 77 | 68 | 2.9 |
| SYSB1194KH | 19 | 2589 | 133 | 4000K | 1712 | 77 | 68 | 3.4 |
| SYSB2274KH | 27 | 3566 | 131 | 4000K | 1712 | 77 | 68 | 3.4 |
| SYSB3384KH | 38 | 4985 | 131 | 4000K | 1712 | 77 | 68 | 3.4 |
| SYSB4574KH | 57 | 7478 | 131 | 4000K | 1712 | 77 | 68 | 3.4 |
| SYSB1224KI | 22 | 3021 | 135 | 4000K | 1992 | 77 | 68 | 4 |
| SYSB2324KI | 32 | 4161 | 132 | 4000K | 1992 | 77 | 68 | 4 |
| SYSB3444KI | 44 | 5816 | 131 | 4000K | 1992 | 77 | 68 | 4 |
