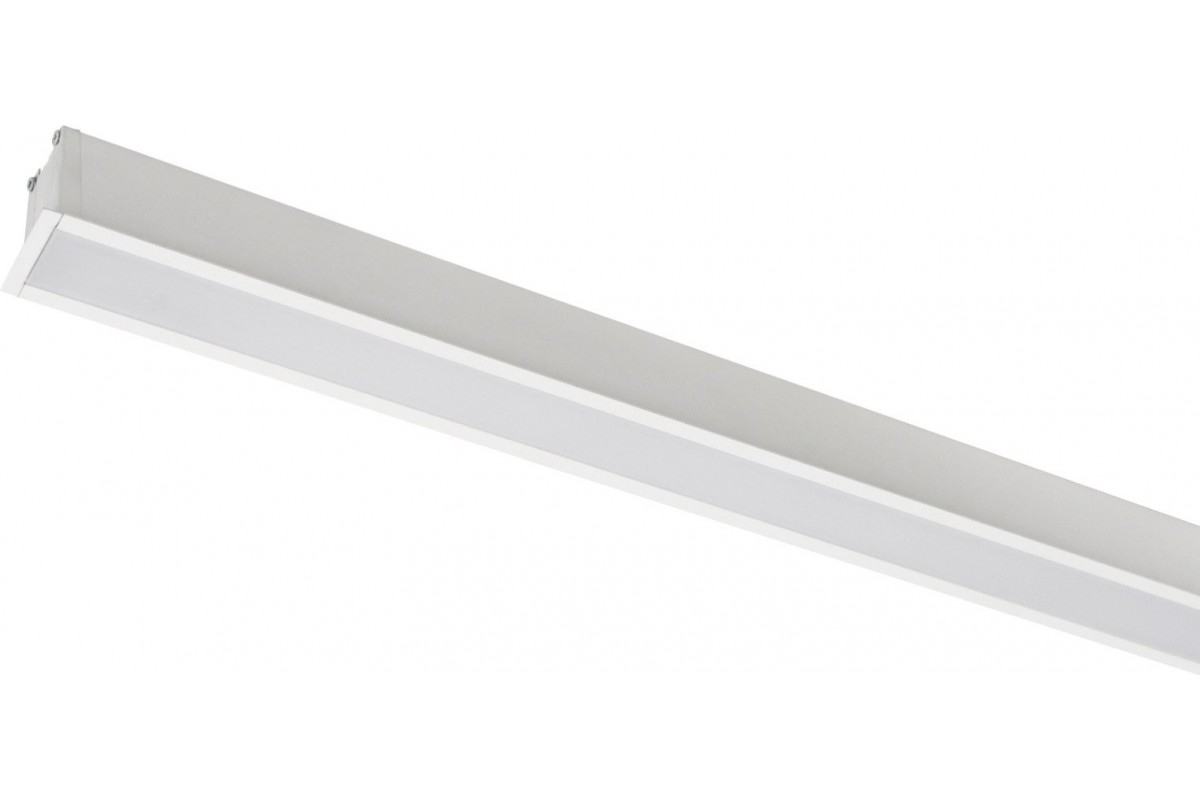

Delivering soft, uniform illumination through an opal polycarbonate diffuser, this recessed slim aluminium profile linear luminaire combines clean, contemporary design with functional performance.
Its precision-crafted aluminium body offers durability and excellent heat management, while the slim recessed form creates a seamless integration into ceilings or walls for a refined, architectural finish.

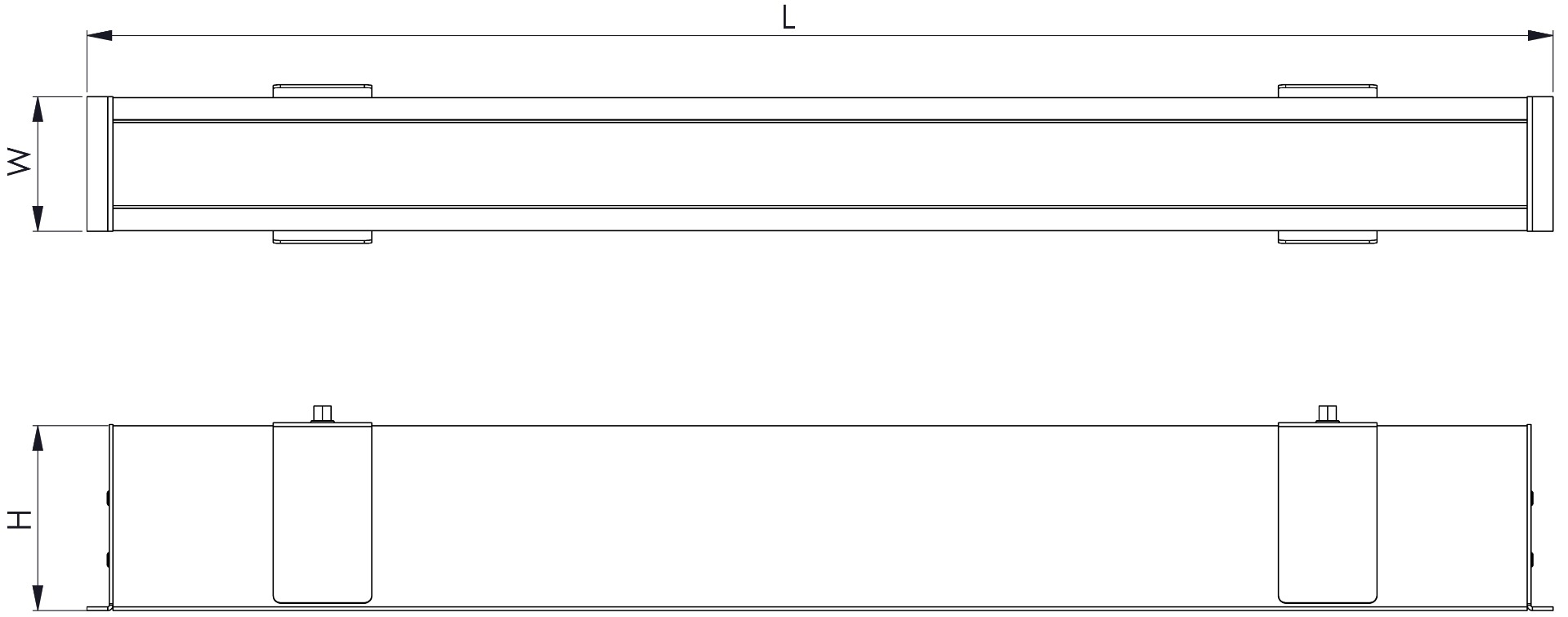

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| SYSA174KA | 7 | 760 | 112 | 4000K | 597 | 54 | 75 | 1.3 |
| SYSA2104KA | 10 | 1046 | 110 | 4000K | 597 | 54 | 75 | 1.3 |
| SYSA3144KA | 14 | 1462 | 106 | 4000K | 597 | 54 | 75 | 1.3 |
| SYSA4204KA | 20 | 2193 | 110 | 4000K | 597 | 54 | 75 | 1.3 |
| SYSA184KB | 8 | 949 | 116 | 4000K | 737 | 54 | 75 | 1.6 |
| SYSA2124KB | 12 | 1308 | 113 | 4000K | 737 | 54 | 75 | 1.6 |
| SYSA3174KB | 17 | 1828 | 109 | 4000K | 737 | 54 | 75 | 1.6 |
| SYSA4254KB | 25 | 2742 | 111 | 4000K | 737 | 54 | 75 | 1.6 |
| SYSA1104KC | 10 | 1139 | 113 | 4000K | 877 | 54 | 75 | 1.8 |
| SYSA2144KC | 14 | 1569 | 112 | 4000K | 877 | 54 | 75 | 1.8 |
| SYSA3204KC | 20 | 2193 | 109 | 4000K | 877 | 54 | 75 | 1.8 |
| SYSA4304KC | 30 | 3290 | 112 | 4000K | 877 | 54 | 75 | 1.8 |
| SYSA1124KD | 12 | 1329 | 115 | 4000K | 1017 | 54 | 75 | 2.1 |
| SYSA2164KD | 16 | 1831 | 115 | 4000K | 1017 | 54 | 75 | 2.1 |
| SYSA3234KD | 23 | 2559 | 111 | 4000K | 1017 | 54 | 75 | 2.1 |
| SYSA1134KE | 13 | 1519 | 116 | 4000K | 1157 | 54 | 75 | 2.4 |
| SYSA2184KE | 18 | 2092 | 116 | 4000K | 1157 | 54 | 75 | 2.4 |
| SYSA3264KE | 26 | 2925 | 111 | 4000K | 1157 | 54 | 75 | 2.4 |
| SYSA4384KF | 38 | 4387 | 115 | 4000K | 1157 | 54 | 75 | 2.4 |
| SYSA1154KF | 15 | 1709 | 118 | 4000K | 1297 | 54 | 75 | 2.6 |
| SYSA2204KF | 20 | 2354 | 117 | 4000K | 1297 | 54 | 75 | 2.6 |
| SYSA3304KF | 30 | 3290 | 111 | 4000K | 1297 | 54 | 75 | 2.6 |
| SYSA1174KG | 17 | 1899 | 114 | 4000K | 1437 | 54 | 75 | 2.9 |
| SYSA2234KG | 23 | 2615 | 114 | 4000K | 1437 | 54 | 75 | 2.9 |
| SYSA3324KG | 32 | 3656 | 115 | 4000K | 1437 | 54 | 75 | 2.9 |
| SYSA4484KG | 48 | 5484 | 115 | 4000K | 1437 | 54 | 75 | 2.4 |
| SYSA1194KH | 19 | 2279 | 117 | 4000K | 1717 | 54 | 75 | 2.9 |
| SYSA2274KH | 27 | 3138 | 115 | 4000K | 1717 | 54 | 75 | 3.4 |
| SYSA3384KH | 38 | 4387 | 115 | 4000K | 1717 | 54 | 75 | 3.4 |
| SYSA4574KH | 57 | 6580 | 115 | 4000K | 1717 | 54 | 75 | 3.4 |
| SYSA1224KI | 22 | 2658 | 119 | 4000K | 1997 | 54 | 75 | 4 |
| SYSA2324KI | 32 | 3661 | 116 | 4000K | 1997 | 54 | 75 | 4 |
| SYSA3444KI | 44 | 5118 | 115 | 4000K | 1997 | 54 | 75 | 4 |
