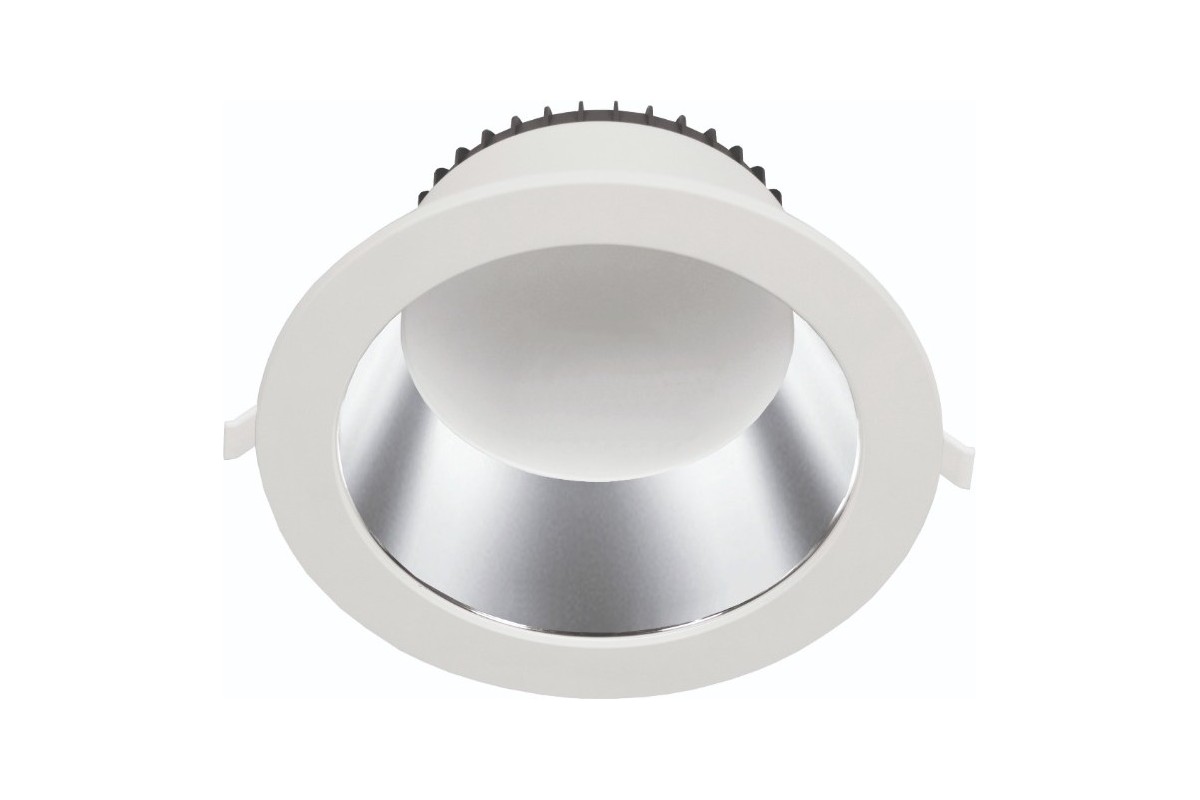

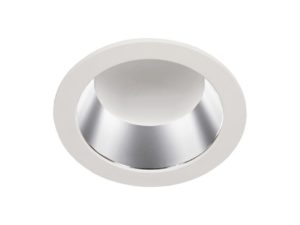

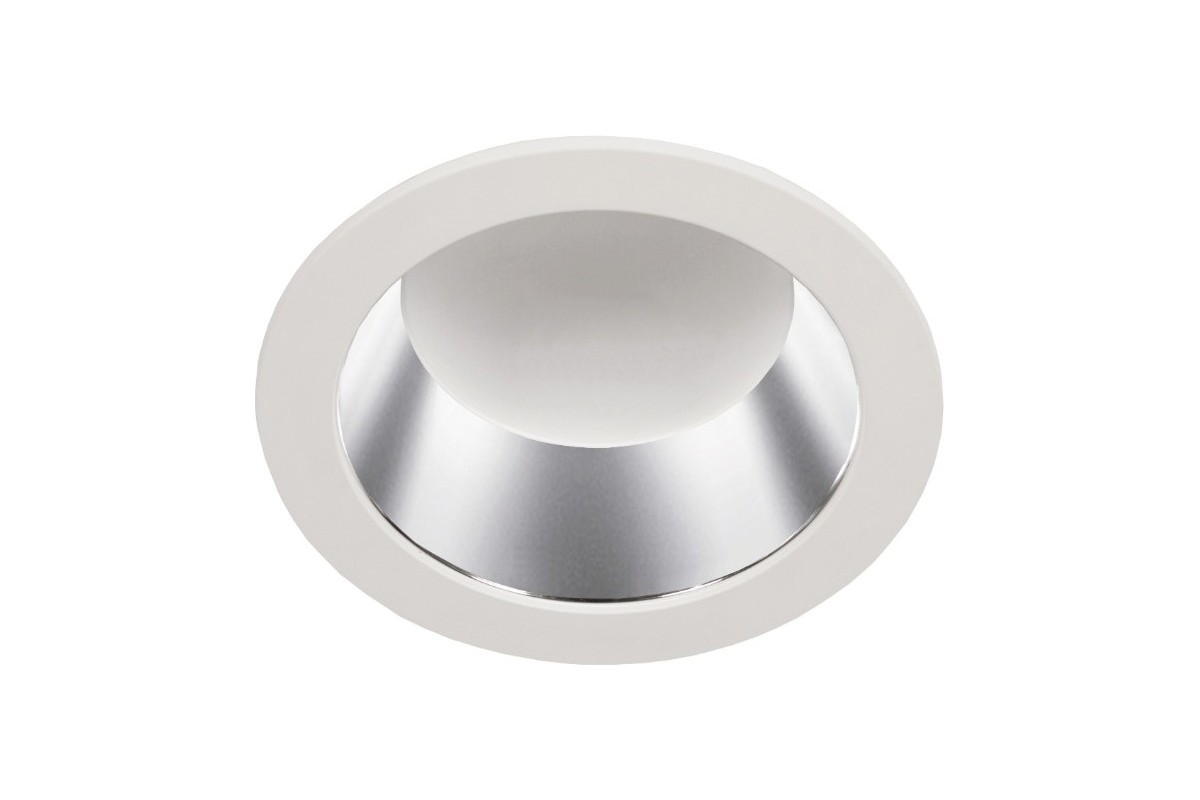

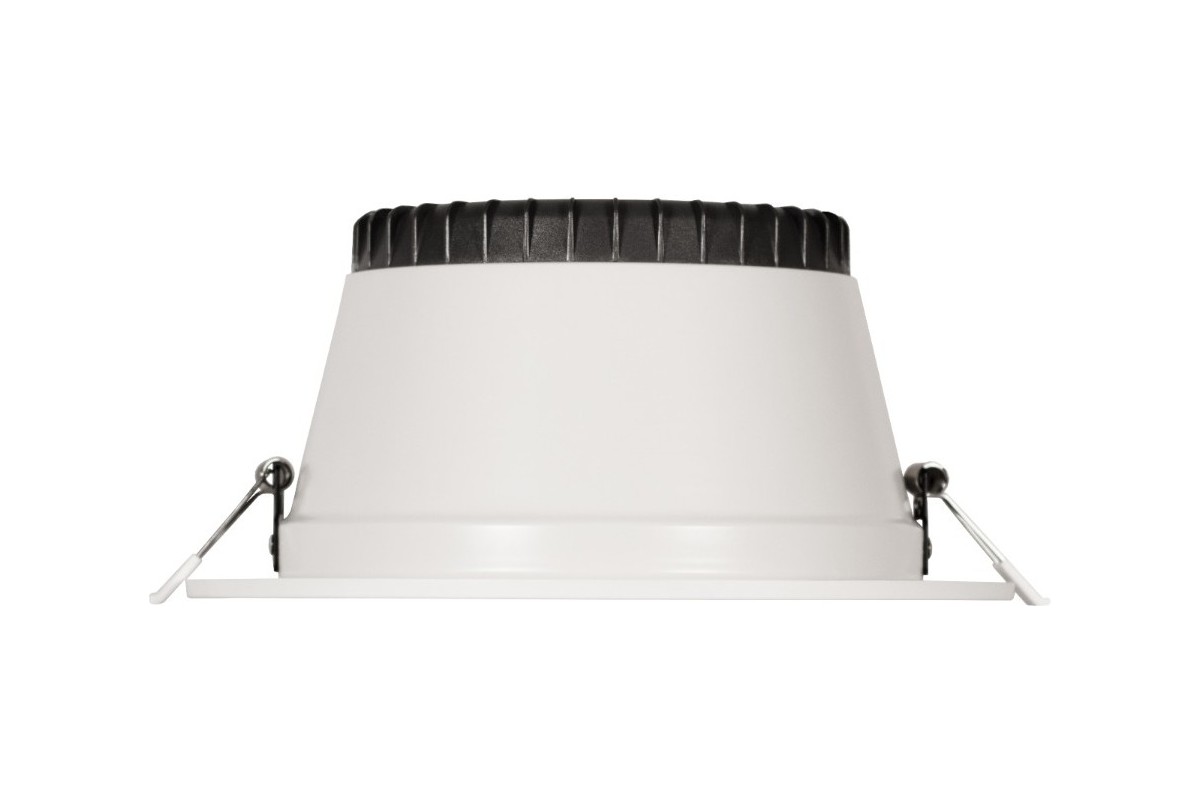

Offering a blend of flexibility, performance, and visual comfort, the recessed mounted LED downlight is an ideal choice for a broad spectrum of indoor applications. Its direct light distribution system is available with either a 60° faceted aluminium reflector or an 80° matt aluminium reflector, providing tailored illumination to suit diverse spatial and functional requirements.

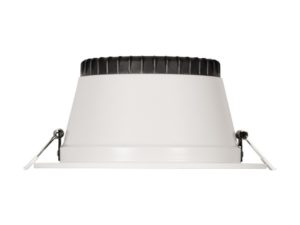

An opal PMMA diffuser ensures soft, evenly distributed light with reduced glare. Perfect for visually demanding environments where user comfort is a priority. Built from durable aluminium and finished in a crisp white (RAL 9016), the fixture integrates seamlessly into ceiling cut-outs and comes complete with mounting brackets for easy, secure installation. Suited to offices, educational facilities, corridors, retail environments, public spaces, showrooms, hotels, bathrooms, and exhibitions, this downlight delivers both practicality and modern elegance.

Order CodeWattageDelivered Lumens
(ta +25°C)
System Efficacy
(lm/W)

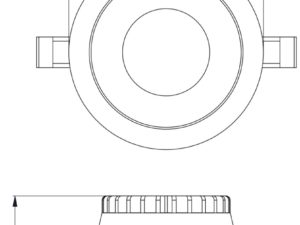

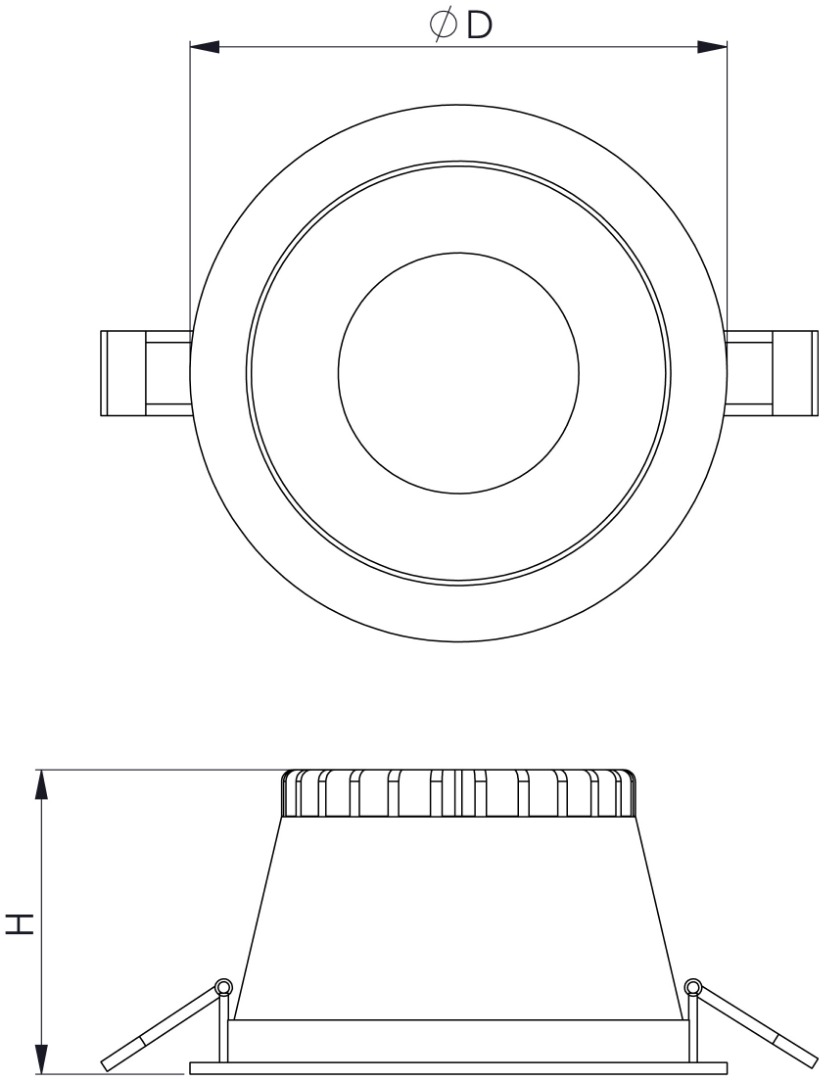

CCT-KLength (mm)Width
(mm)
Height
(mm)
Cut-Out (mm)Weight
(kg)
RDDO104KA1011001104000K11411466950.4
RDDO204KB2024001204000K174174871470.4
RDDO284KC2833201194000K2322321102000.6
RDDO354KC3540251154000K2322321102000.4

Key InformationValue
EnvironmentIndoor
Operating Temp. Range0c to + 35c

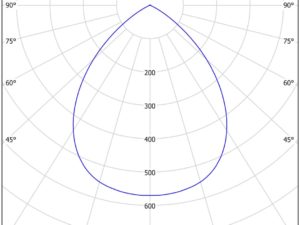

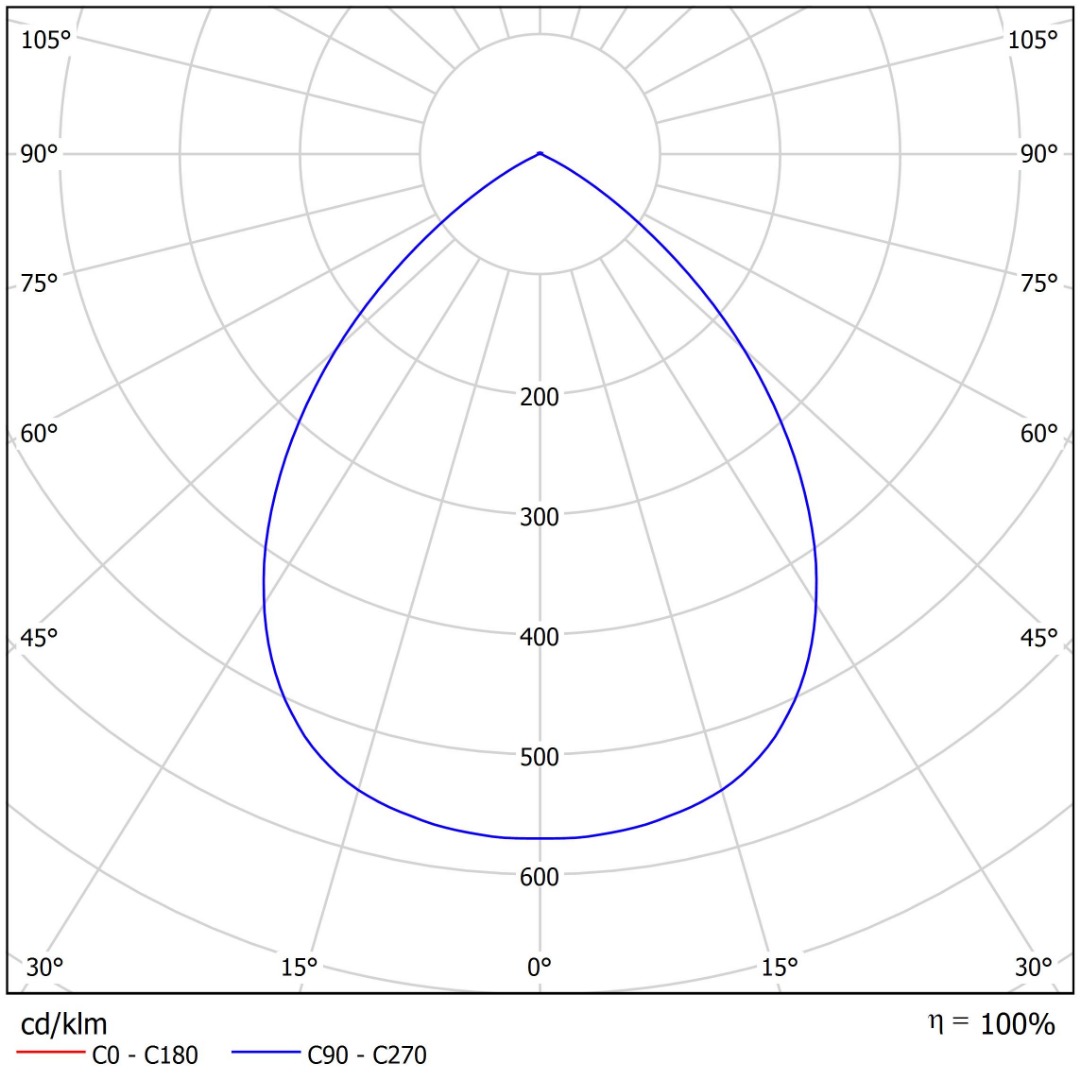

Light DistributionDirect
HousingAluminium
Mains Voltage220-240V, 0/50-60Hz
SCDM3
Protection Class IECI
ColourWhite, RAL9016
LED LifetimeH: 50000/L80B10
Ingress ProtectionIP44
Impact ResistanceIK04
Optical SystemFaceted matt aluminium reflector, 80°, low glare, opal PMMA diffuser
ProductValue
/M33 hour maintained emergency
/S33 hour self-test emergency
/L33 hour DALI self-test emergency
3K3000K Colour temperature
57KColour temperature 5700K, CRI 80+
