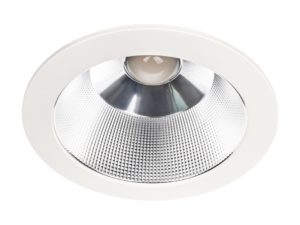

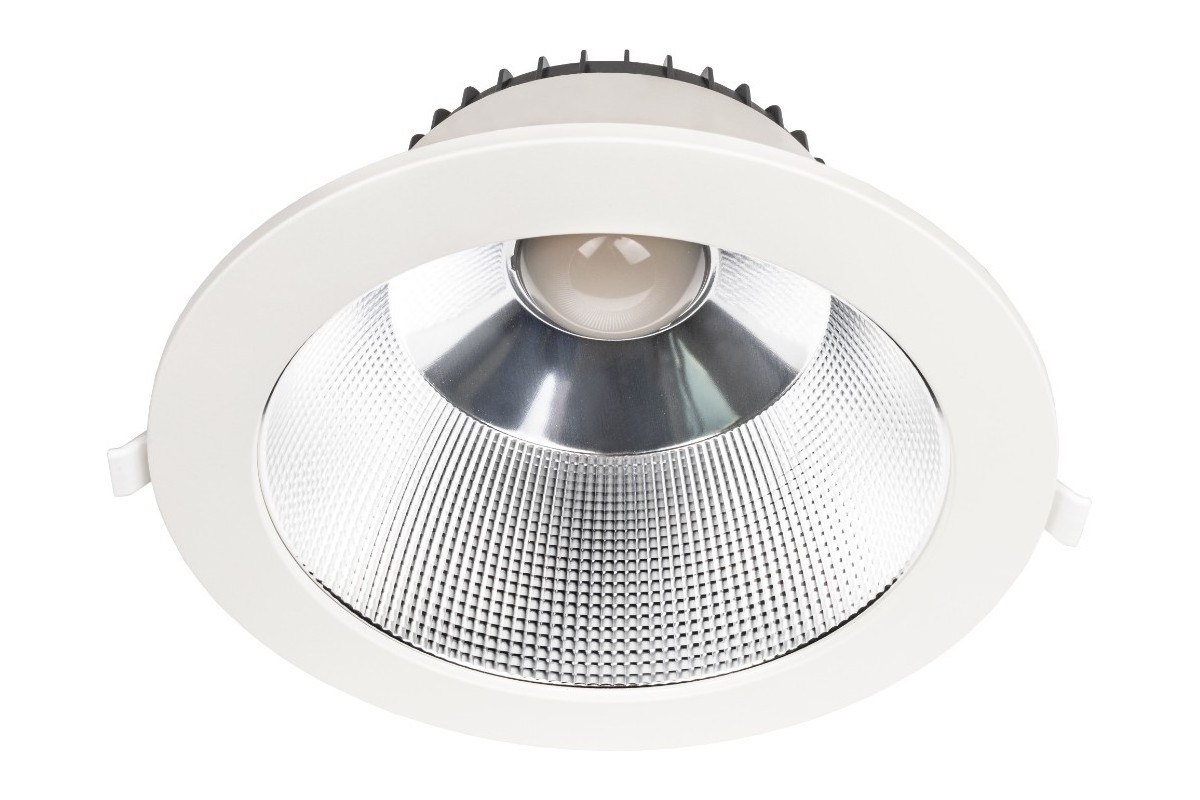

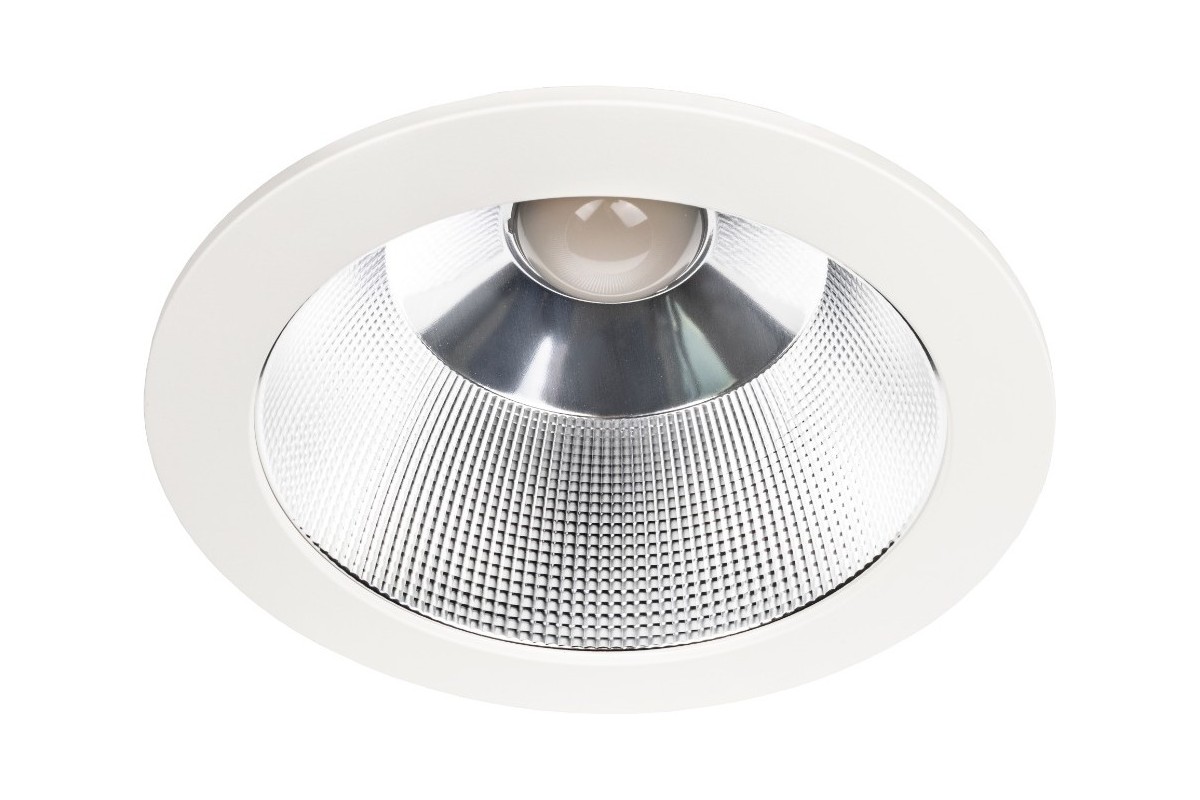

Designed to meet the demands of modern indoor environments, the recessed mounted LED downlight delivers high-quality, low-glare illumination with an emphasis on visual comfort. Offering flexibility in light distribution, it features a choice between a 60° faceted aluminium reflector and an 80 matt aluminium reflector making it adaptable to a wide range of spatial needs. An opal PMMA diffuser further enhances the lighting experience by providing soft, uniform output that complements any setting.



Housed in durable aluminium and finished in a crisp white (RAL 9016), the downlight integrates effortlessly into ceiling cut-outs and includes mounting brackets for quick and secure installation. Well-suited to offices, educational facilities, corridors, retail spaces, public areas, showrooms, hotels, bathrooms, and exhibitions, this versatile fixture combines performance, comfort, and clean design in one streamlined package.

Order CodeWattageDelivered Lumens
(ta +25°C)
System Efficacy
(lm/W)
CCT-KLength (mm)Width
(mm)
Height
(mm)
Cut-Out (mm)Weight
(kg)
RDDA104KA10950954000K11411466950.4
RDDA204KB201900954000K174174871470.6
RDDA284KC282520904000K2322321102000.4
RDDA354KC353325954000K2322321102000.6

Key InformationValue
EnvironmentIndoor
Operating Temp. Range0c to + 35c
Light DistributionDirect
HousingAluminium
Mains Voltage220-240V, 0/50-60Hz
SCDM3
Protection Class IECI
ColourWhite, RAL9016
LED LifetimeH: 50000/L80B10
Ingress ProtectionIP44
Impact ResistanceIK04
Optical SystemFaceted aluminium reflector, 60°, low glare, opal PMMA diffuser
ProductValue
/M33 hour maintained emergency
/S33 hour self-test emergency
/L33 hour DALI self-test emergency
3K3000K Colour temperature
57KColour temperature 5700K, CRI 80+
