Offering efficient and visually comfortable illumination, the recessed mounted LED downlight is thoughtfully engineered for a variety of indoor environments. With direct light distribution and a 60° faceted aluminium reflector, it delivers low-glare performance ideal for spaces where clarity and focus are essential. An opal PMMA diffuser enhances the lighting experience by providing smooth, uniform output while preserving a clean, modern aesthetic.



Built from durable aluminium and finished in classic white (RAL 9016), the downlight integrates effortlessly into ceiling cut-outs, with included mounting brackets ensuring a secure and straightforward installation. An excellent choice for offices, educational facilities, corridors, retail spaces, public areas, showrooms, hotels, bathrooms, and exhibitions, this fixture balances performance and design with ease.

Order CodeWattageDelivered Lumens
(ta +25°C)
System Efficacy
(lm/W)

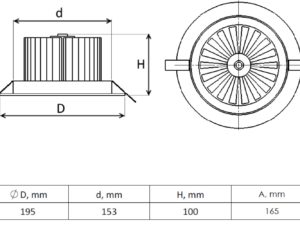

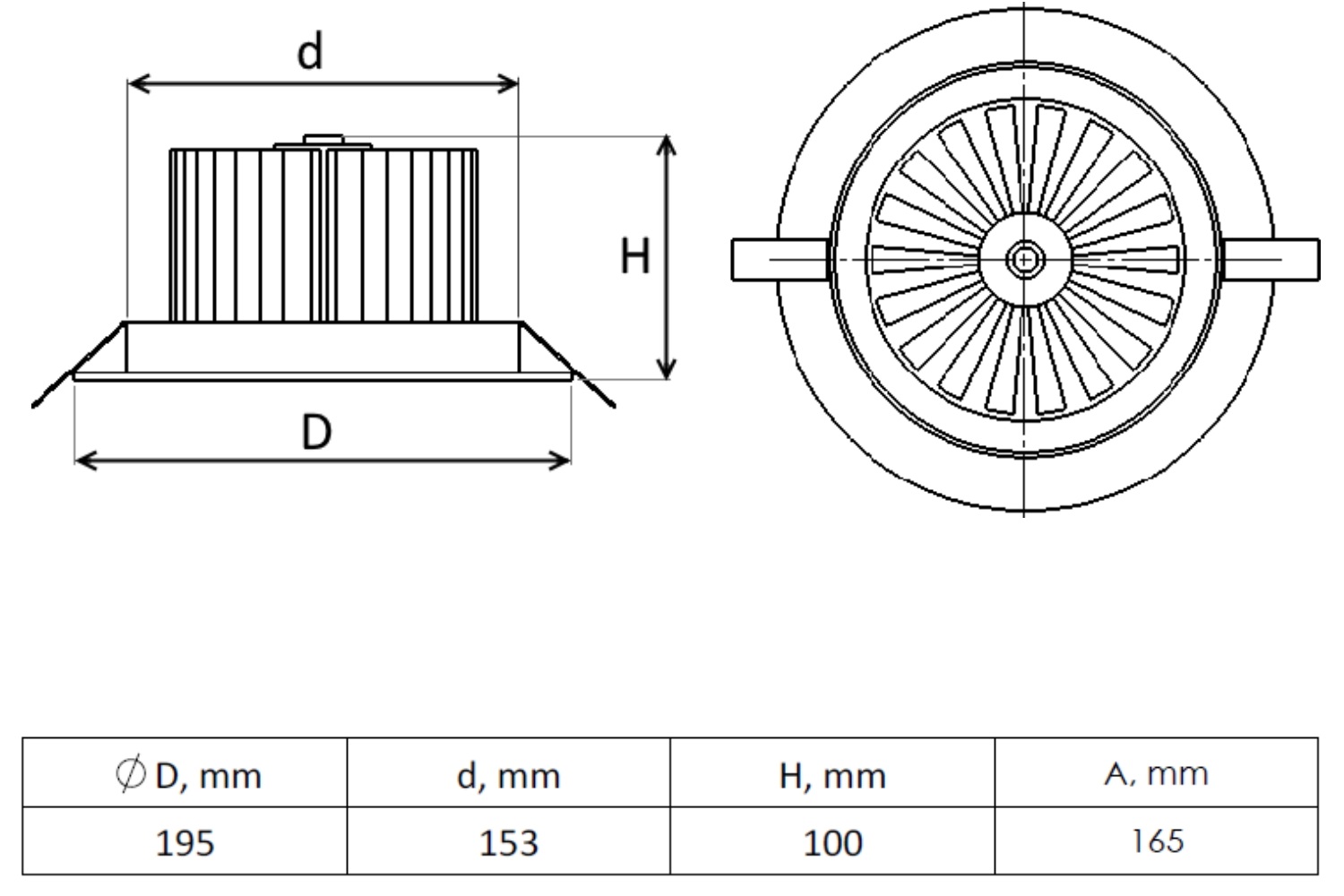

CCT-KLength (mm)Width
(mm)
Height
(mm)
Cut-Out (mm)Weight
(kg)
RDA144K1417021264000K1951951001650.8
RDA194K1923131244000K1951951001650.8
RDA274K2731141184000K1951951001650.8

Key InformationValue
EnvironmentIndoor
Operating Temp. Range0c to + 35c

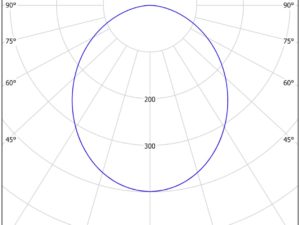

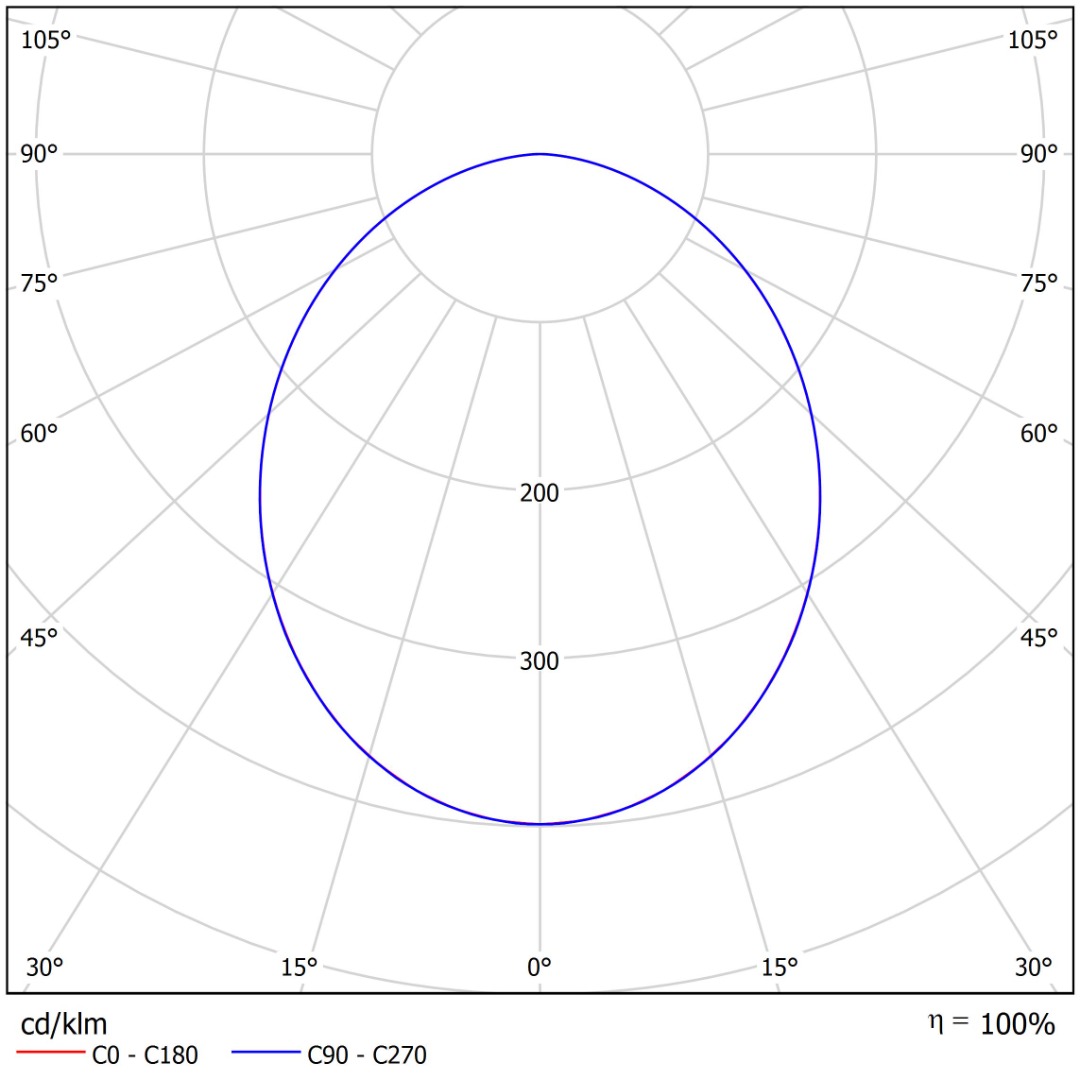

Light DistributionDirect
HousingAluminium
Mains Voltage220-240V, 0/50-60Hz
SCDM3
Protection Class IECI
ColourWhite, RAL9016
LED LifetimeH: 50000-55000-60000/L80B10
Ingress ProtectionIP44
Impact ResistanceIK04
Optical SystemFaceted aluminium reflector, 60°, opal PMMA diffuser
ProductValue
/LSLVDALI dimmable driver
/SDSwitch dim dimmable driver
/M33 hour maintained emergency
/S33 hour self-test emergency
/L33 hour DALI self-test emergency
/RXXXXSpecially finished to RAL**** colour name
3K3000K Colour temperature
/3K/90Colour temperature 3000K, CRI 90+
/4K/90Colour temperature 4000K, CRI 90+
/27K/95Colour temperature 2700K, CRI 95+ NATURAL
/3K/95Colour temperature 3000K, CRI 95+ NATURAL
/4K/95Colour temperature 4000K, CRI 95+ NATURAL
