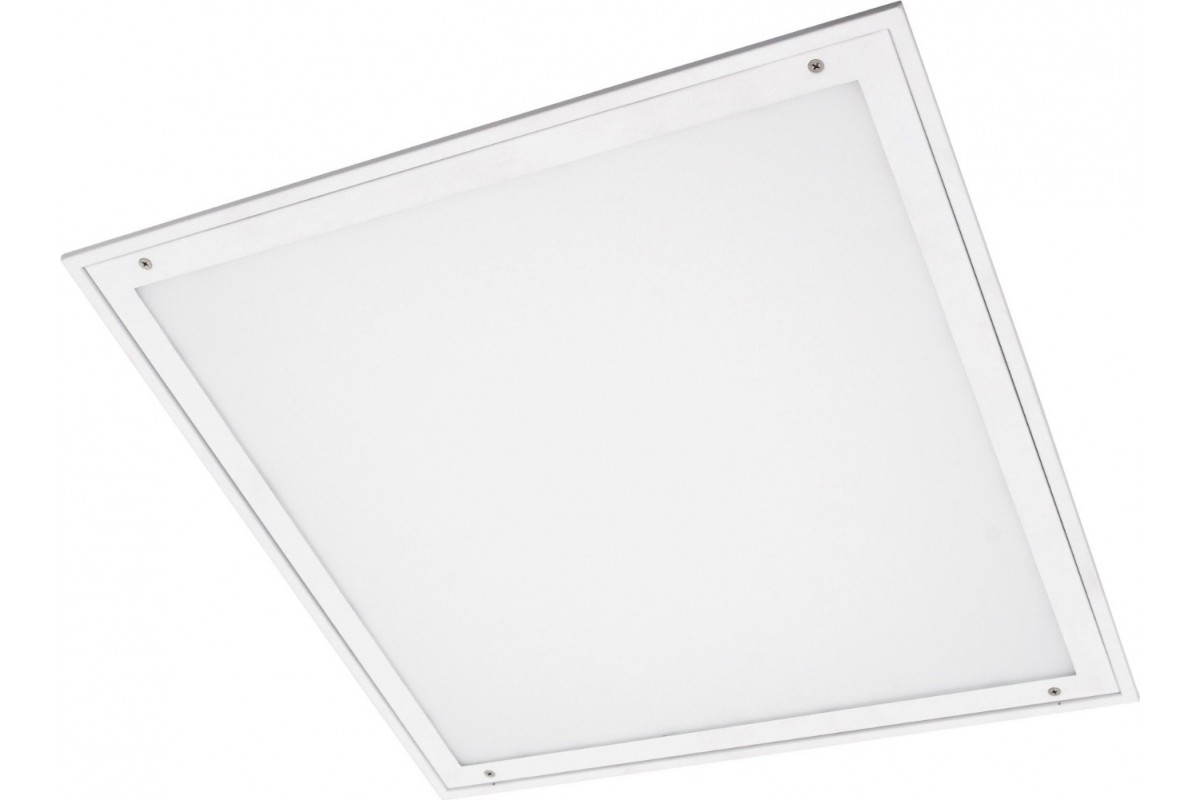

Specifically designed for cleanroom environments, the recessed LED luminaire provides uniform direct lighting through a chemically resistant opal acrylic diffuser, ensuring consistent illumination while maintaining stringent cleanliness standards.
Encased in a durable steel housing finished in white (RAL9003), the fixture is suitable for installation in modular suspended ceilings (600/625) or ceilings with cut-out openings, utilizing optional mounting brackets for flexible placement. Ideal for indoor use in industrial settings, healthcare facilities, and laboratories, it combines high performance with a design that supports the demanding hygiene requirements of these environments.

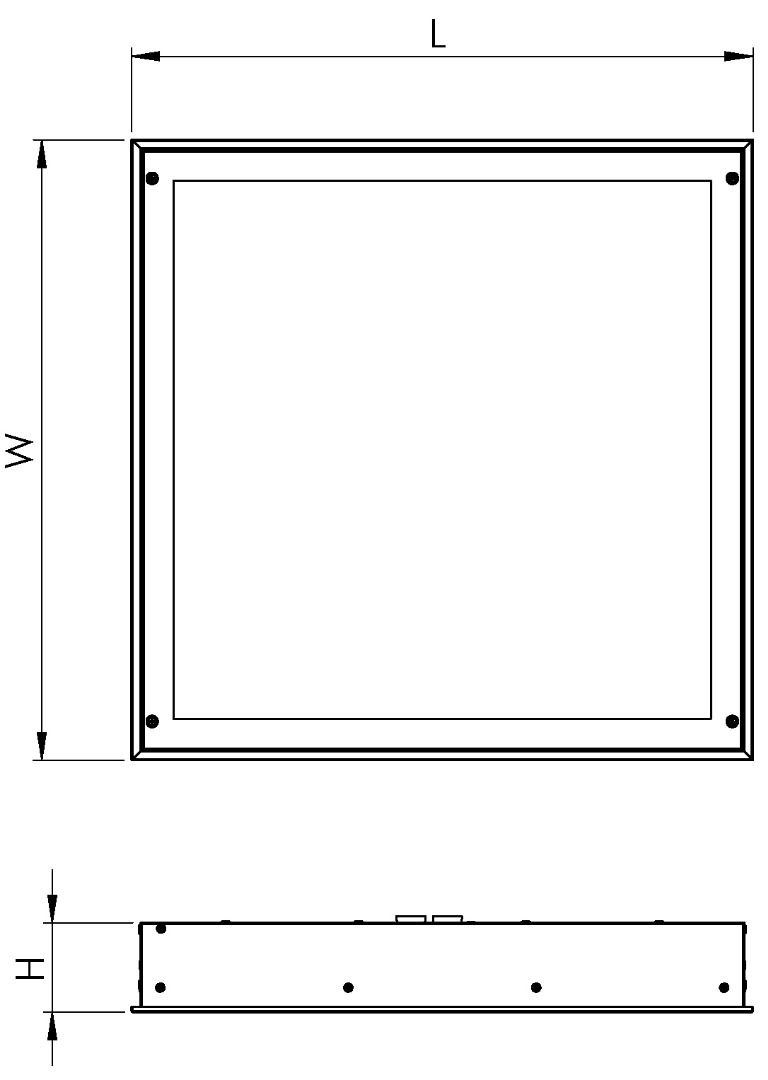

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| QRR264KA | 26 | 3322 | 128 | 4000K | 595 | 595 | 85 | 4.5 |
| QRR324KA | 32 | 4332 | 134 | 4000K | 595 | 595 | 85 | 4.5 |
| QRR344KA | 34 | 4429 | 131 | 4000K | 595 | 595 | 85 | 4.5 |
| QRR434KA | 43 | 5776 | 135 | 4000K | 595 | 595 | 85 | 4.5 |
| QRR334KB | 33 | 4060 | 125 | 4000K | 595 | 595 | 85 | 4.4 |
| QRR384KB | 38 | 4691 | 122 | 4000K | 595 | 595 | 85 | 4.4 |
| QRR574KB | 57 | 6485 | 115 | 4000K | 595 | 595 | 85 | 4.4 |
| QRR344KC | 34 | 4429 | 131 | 4000K | 1195 | 295 | 85 | 4.5 |
| QRR494KC | 49 | 6137 | 127 | 4000K | 1195 | 295 | 85 | 4.5 |
| QRR724KC | 72 | 9205 | 128 | 4000K | 1195 | 295 | 85 | 4.5 |
| QRR504KD | 50 | 6644 | 134 | 4000K | 1195 | 595 | 85 | 9 |
| QRR724KD | 72 | 9205 | 128 | 4000K | 1195 | 595 | 85 | 9 |
| QRR654KD | 65 | 8858 | 135 | 4000K | 1195 | 595 | 85 | 9 |
| QRR954KD | 95 | 12273 | 129 | 4000K | 1195 | 595 | 85 | 9 |
| QRR424KE | 42 | 5537 | 133 | 4000K | 1495 | 295 | 85 | 6 |
| QRR604KE | 60 | 7671 | 128 | 4000K | 1495 | 295 | 85 | 6 |
| QRR894KE | 89 | 11506 | 129 | 4000K | 1495 | 295 | 85 | 6 |
