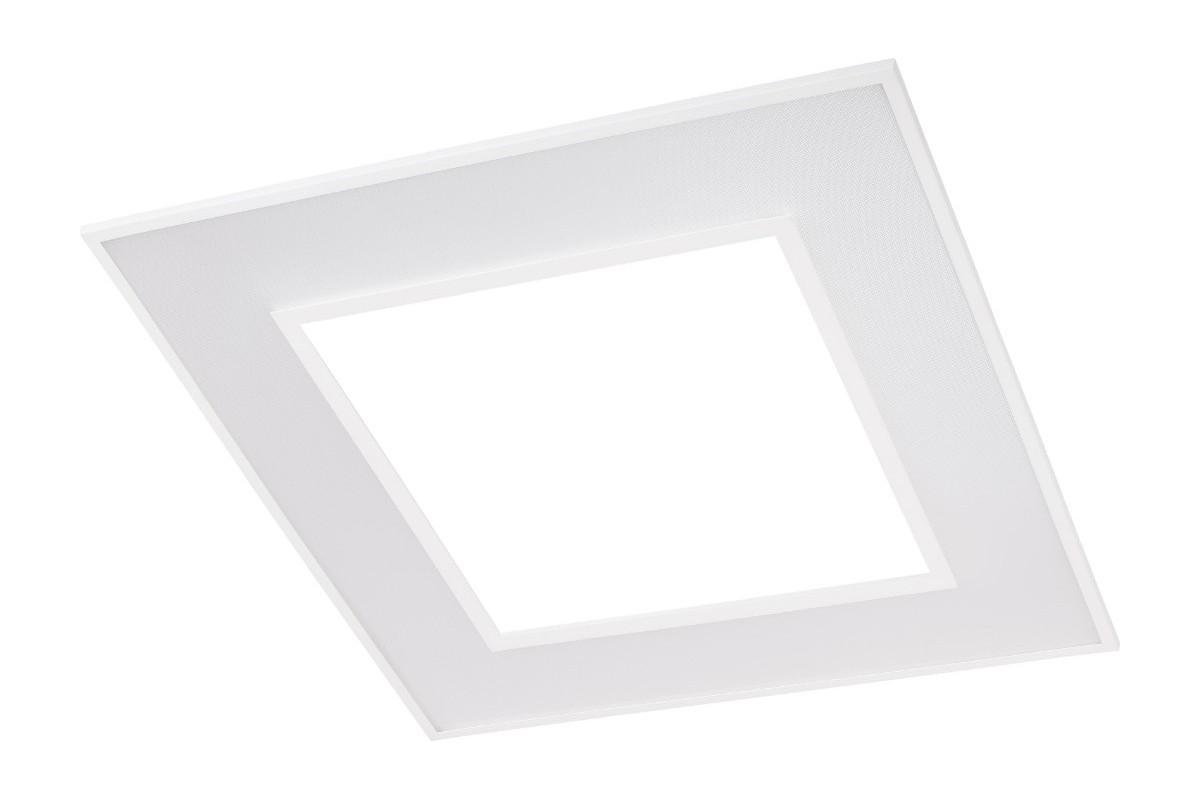

The recessed mounted LED luminaire offers direct light distribution, delivering efficient and uniform illumination ideal for a wide range of indoor environments. Constructed with a durable steel housing finished in white (RAL9003S), it seamlessly integrates into modular suspended ceilings or ceilings featuring cut-out openings when paired with a separately ordered mounting frame.
Well-suited for offices, educational spaces, corridors, retail areas, and public venues, the luminaire combines functional lighting with a sleek, modern design, making it a versatile choice for both commercial and public settings.

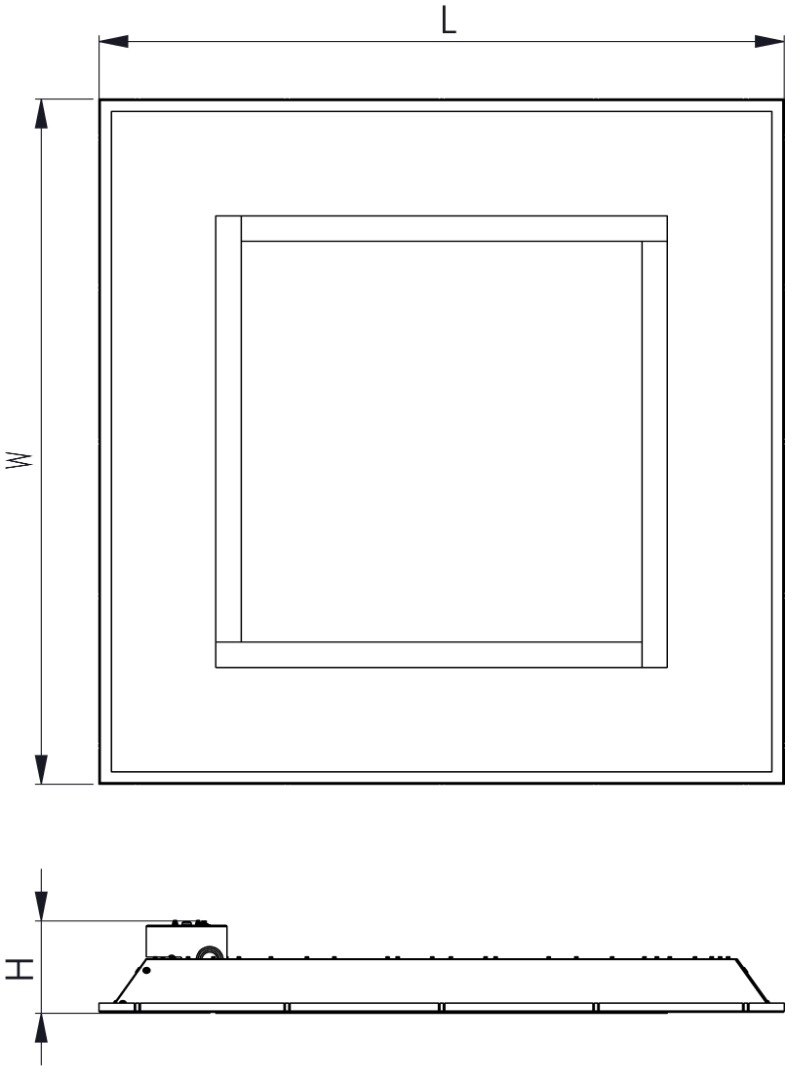

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| OCQ174K/UGR | 17 | 2326 | 136 | 4000K | 595 | 595 | 82 | 3 |
| OCQ214K/UGR | 21 | 2884 | 136 | 4000K | 595 | 595 | 82 | 3 |
| OCQ254K/UGR | 25 | 3430 | 135 | 4000K | 595 | 595 | 82 | 3 |
| OCQ304K/UGR | 30 | 3929 | 132 | 4000K | 595 | 595 | 82 | 3 |
| OCQ394K/UGR | 39 | 4910 | 126 | 4000K | 595 | 595 | 82 | 3 |
