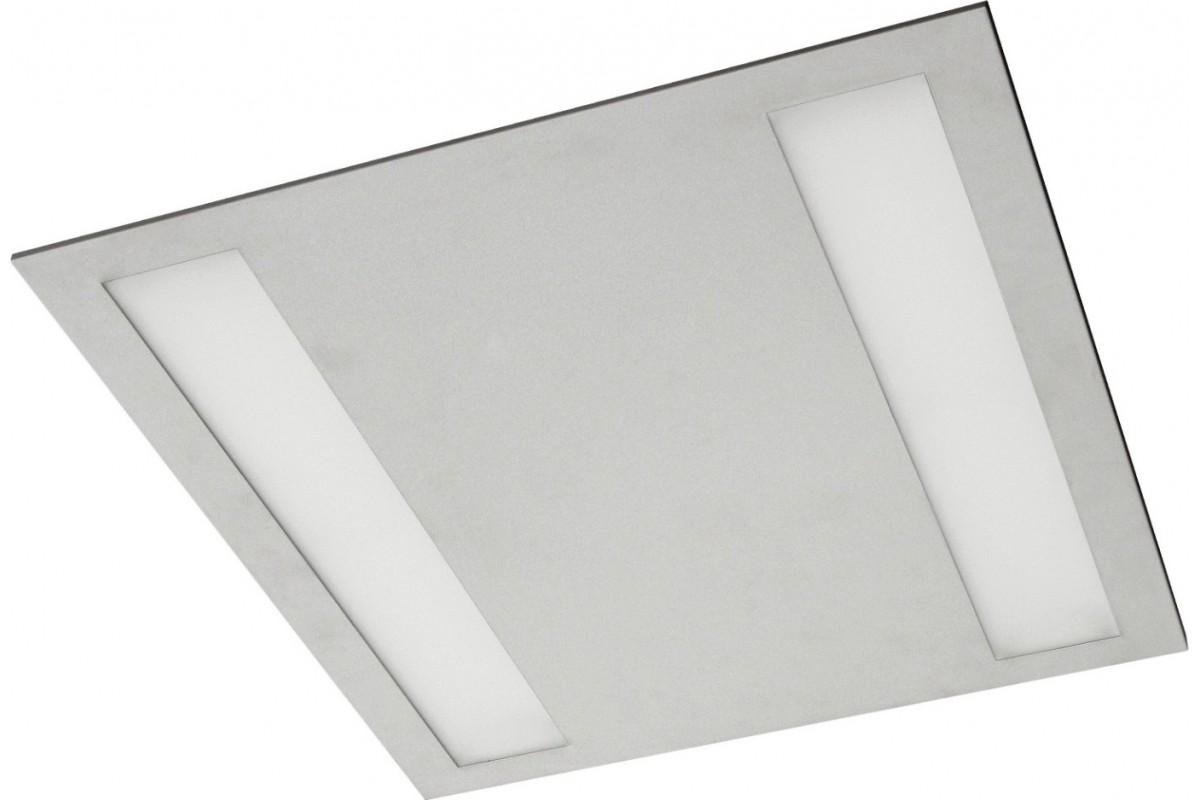

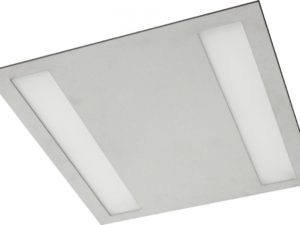

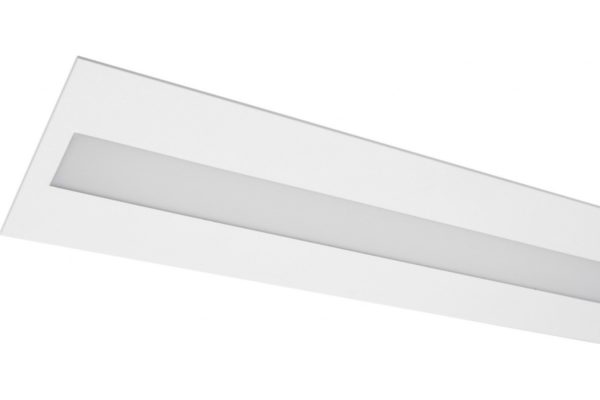

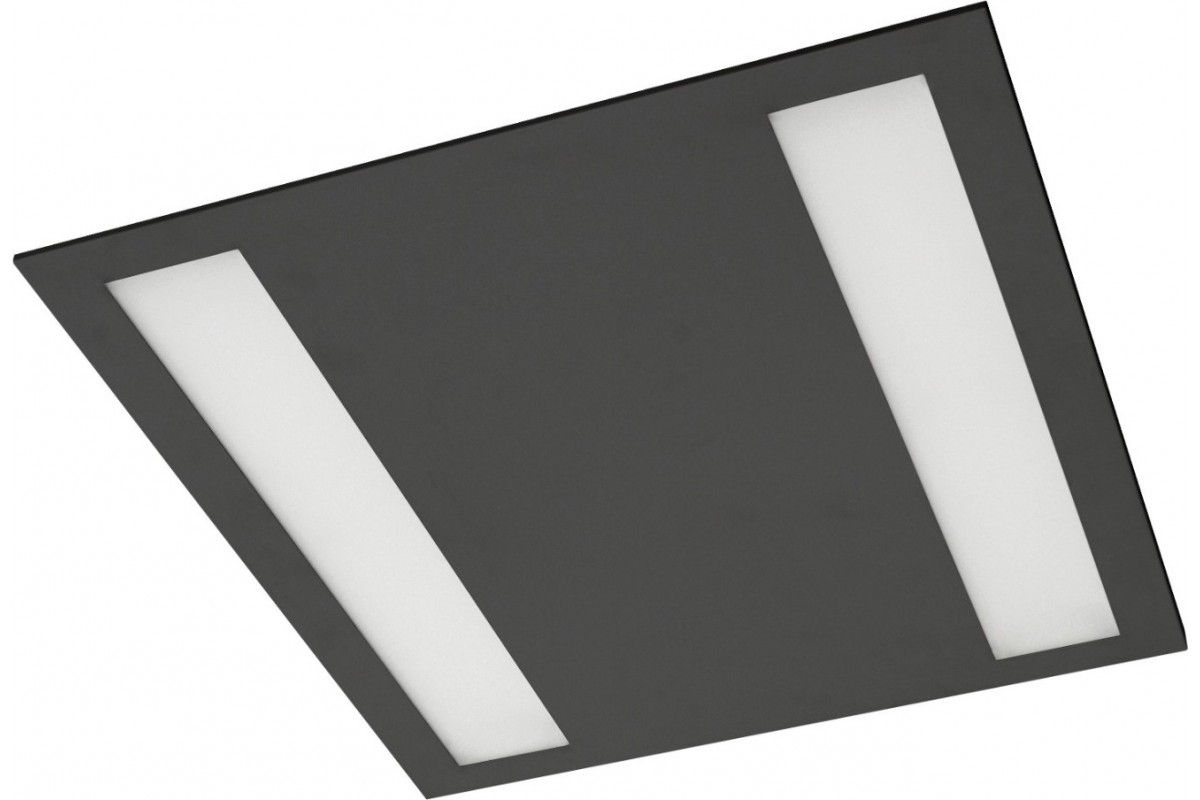

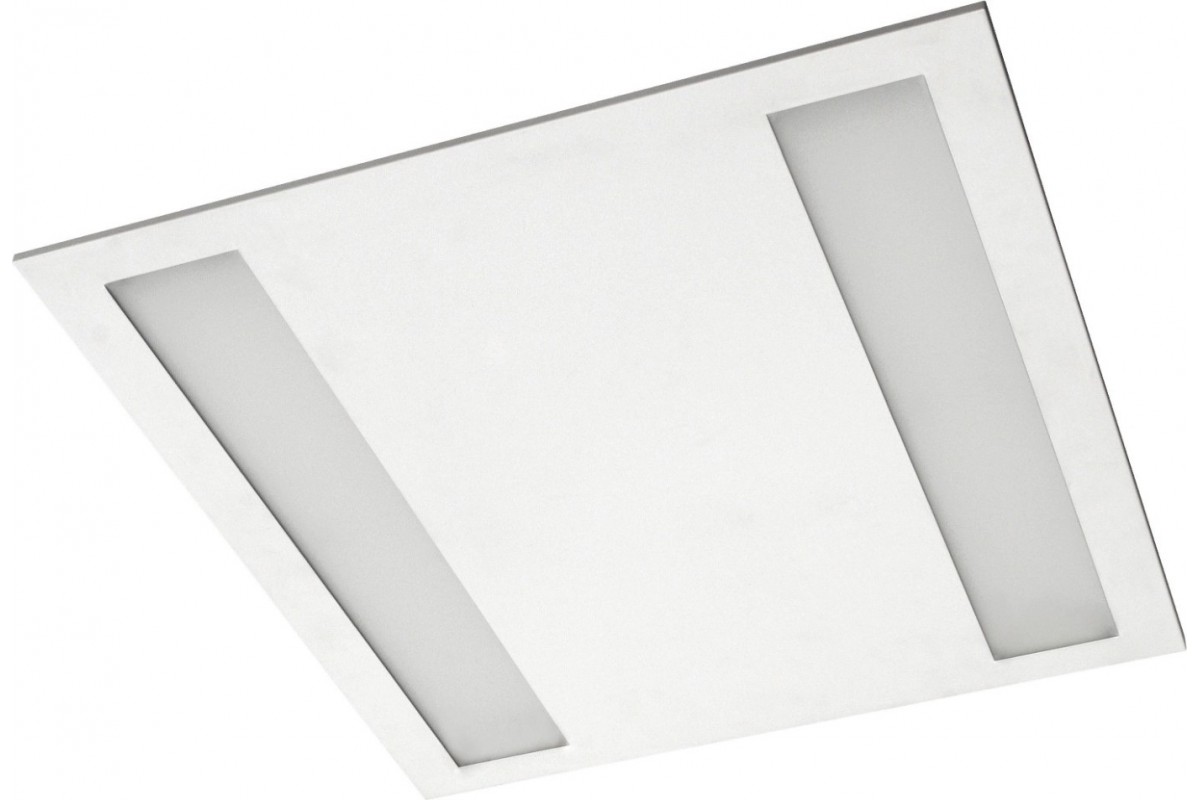

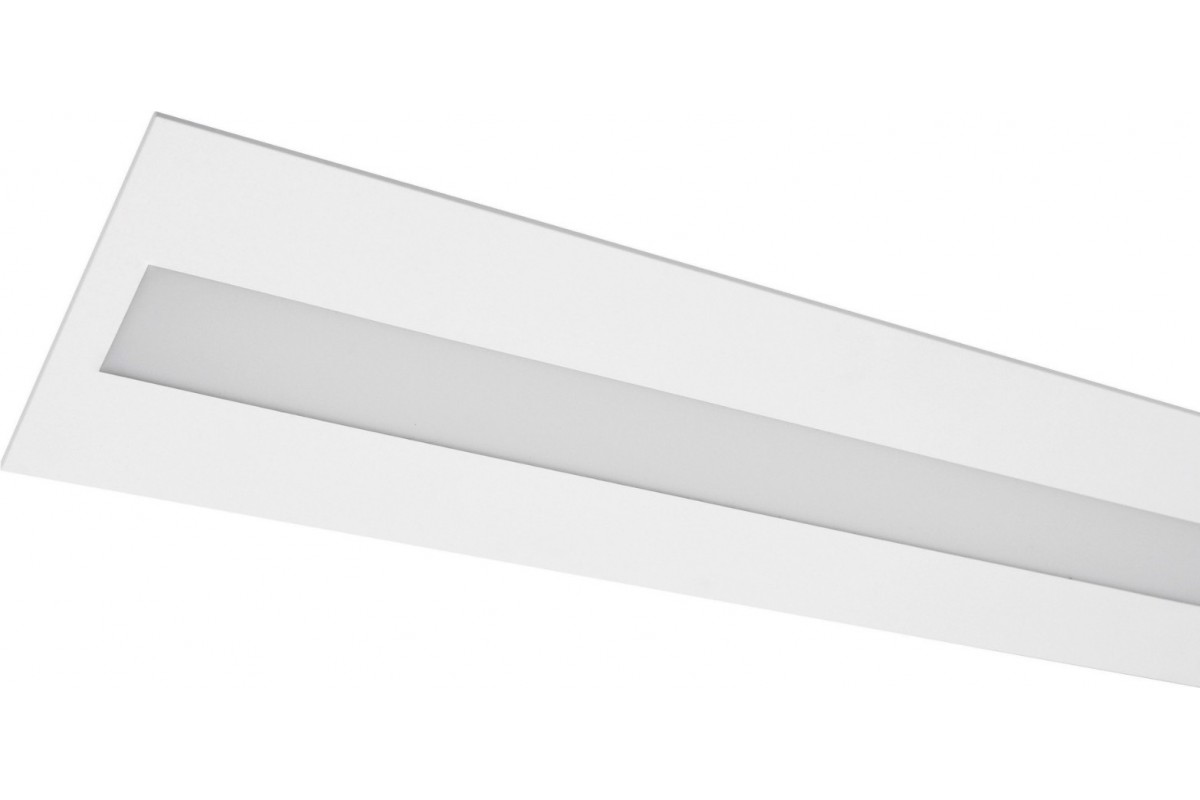

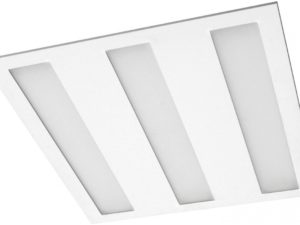

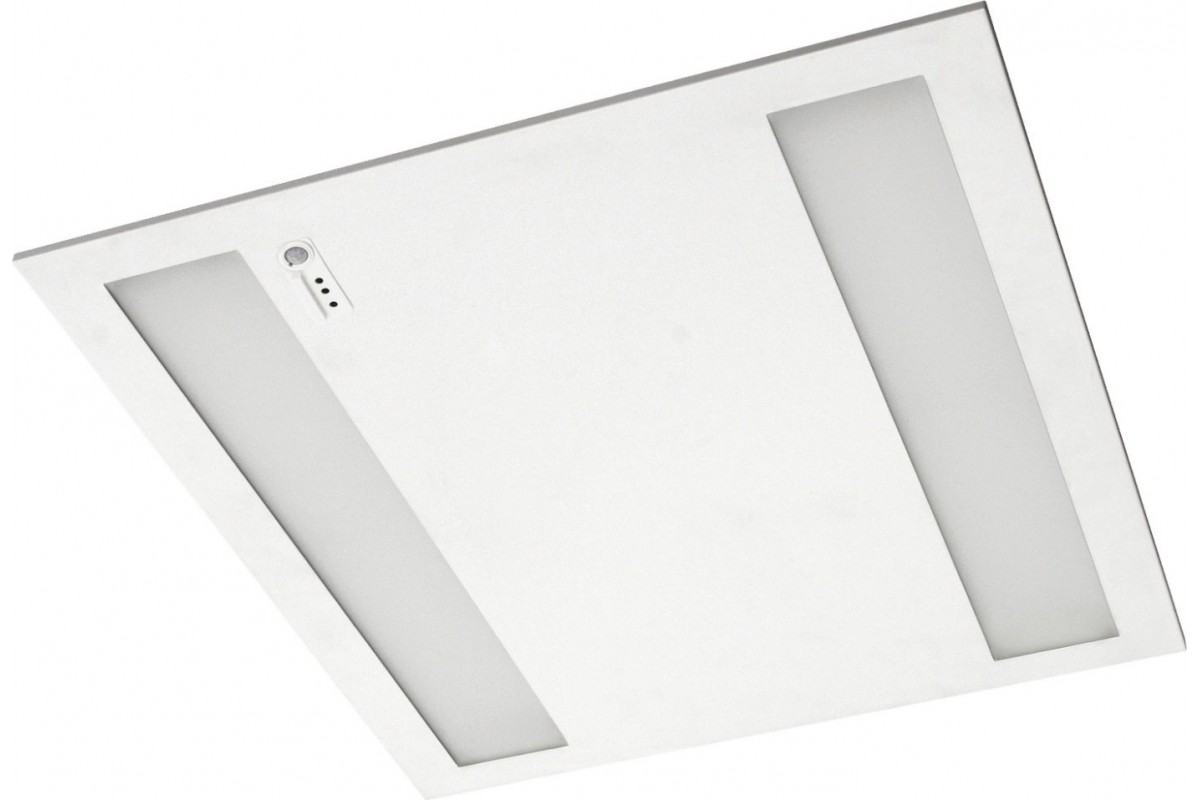

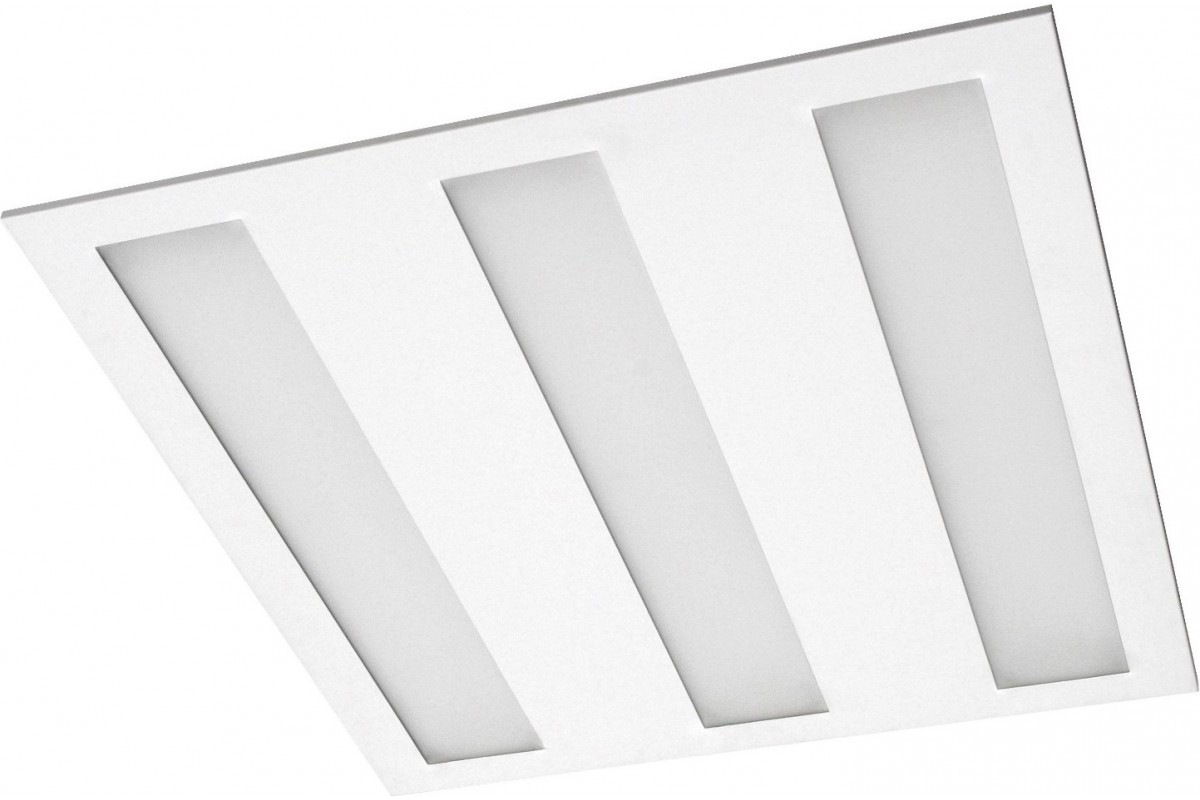

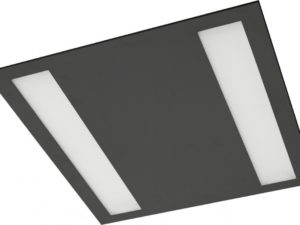

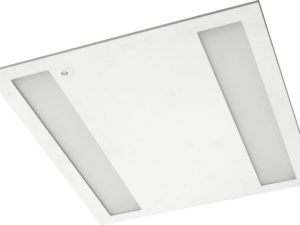

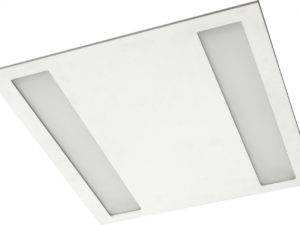

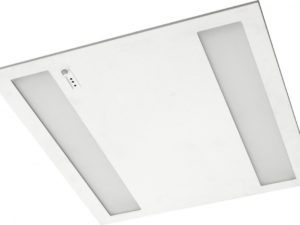

Delivering efficient direct lighting, the recessed-mounted LED luminaire is a versatile solution tailored for a wide range of indoor applications. Its robust steel housing, finished in clean white (RAL9003), allows for seamless integration into modular suspended ceilings (600) or ceilings with cut-out openings, with an optional mounting frame available to accommodate different installation needs.
Ideally suited for office spaces, educational facilities, corridors, retail environments, and public areas, the luminaire pairs reliable performance with a sleek, modern design?making it an excellent choice for spaces where functionality and aesthetics go hand in hand.

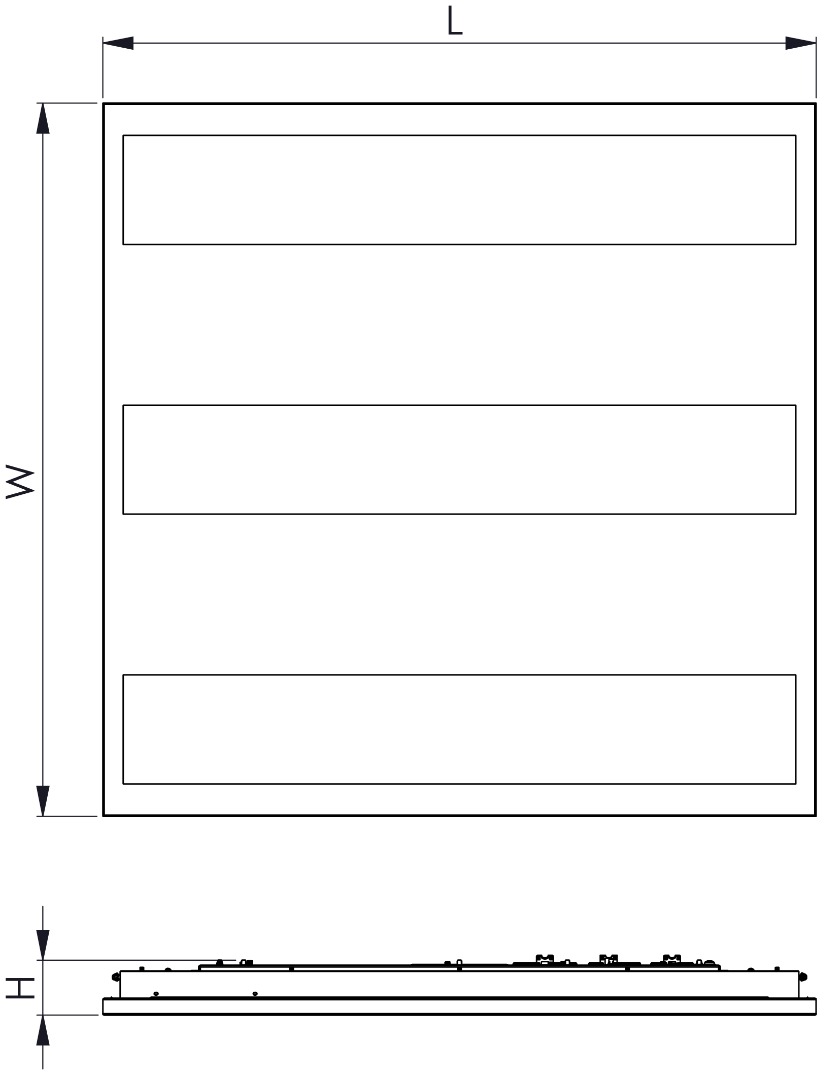

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| OCP94KA | 9 | 1440 | 147 | 4000K | 595 | 295 | 40 | 2 |
| OCP134KA | 13 | 1994 | 140 | 4000K | 595 | 295 | 40 | 2 |
| OCP204KA | 20 | 2992 | 140 | 4000K | 595 | 295 | 40 | 2 |
| OCP184KB | 18 | 2879 | 152 | 4000K | 595 | 595 | 40 | 3.5 |
| OCP284KB | 28 | 4172 | 139 | 4000K | 595 | 595 | 40 | 3.5 |
| OCP344KB | 34 | 5457 | 151 | 4000K | 595 | 595 | 40 | 3.5 |
| OCP264KB | 26 | 4319 | 156 | 4000K | 595 | 595 | 40 | 3.6 |
| OCP384KB | 38 | 5983 | 145 | 4000K | 595 | 595 | 40 | 3.6 |
| OCP514KB | 51 | 8186 | 151 | 4000K | 595 | 595 | 40 | 3.6 |
| OCP184KC | 18 | 2879 | 152 | 4000K | 1195 | 295 | 40 | 3.5 |
| OCP284KC | 28 | 4172 | 139 | 4000K | 1195 | 295 | 40 | 3.5 |
| OCP344KC | 34 | 5457 | 151 | 4000K | 1195 | 295 | 40 | 3.5 |
| OCP354KD | 35 | 5758 | 156 | 4000K | 1195 | 595 | 40 | 6.5 |
| OCP514KD | 51 | 7978 | 147 | 4000K | 1195 | 595 | 40 | 6.5 |
| OCP654KD | 65 | 10859 | 156 | 4000K | 1195 | 595 | 40 | 6.5 |
