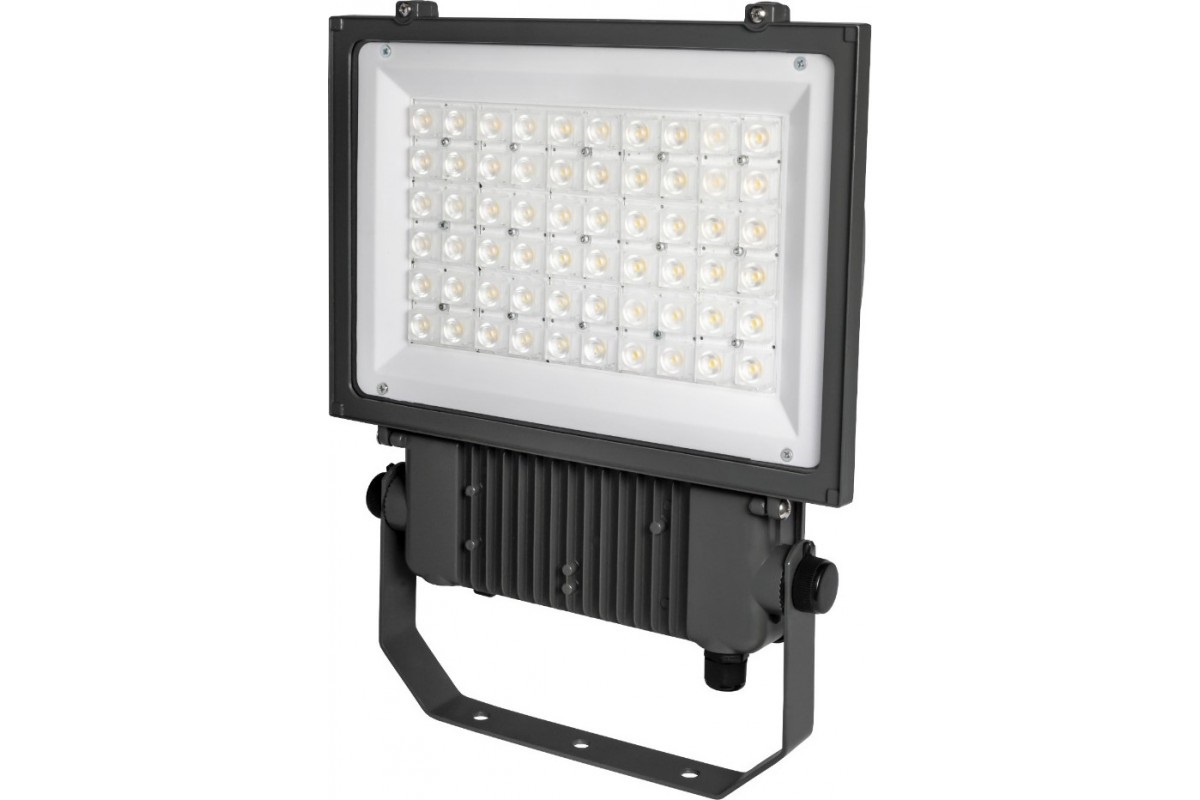

Delivering powerful and efficient direct light distribution, the surface-mounted LED floodlight is perfectly suited for a wide range of outdoor lighting applications. Its design emphasizes durability, incorporating a robust optical system with precision lenses and a tempered glass diffuser for superior impact resistance. The high-quality aluminium housing, finished in a sleek dark grey (RAL 7043), complements modern architectural aesthetics with ease.
Versatility is a key feature, allowing installation on both horizontal and vertical surfaces. Whether illuminating parks, public areas, industrial zones, parking facilities, sports grounds, building fa?ades, or streetscapes, the floodlight ensures dependable performance and enduring resilience in demanding outdoor conditions.
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| MPF284KA/90 | 28 | 4774 | 168 | 4000K | 291 | 230 | 58 | 1.9 |
| MPF514KA/90 | 51 | 8279 | 164 | 4000K | 291 | 230 | 58 | 1.9 |
| MPF654KA/90 | 65 | 10224 | 158 | 4000K | 291 | 230 | 58 | 1.9 |
| MPF674KB/90 | 67 | 11039 | 164 | 4000K | 338 | 280 | 59 | 2.8 |
| MPF884KB/90 | 88 | 13633 | 156 | 4000K | 338 | 280 | 59 | 2.8 |
| MPF1004KC/90 | 100 | 16558 | 166 | 4000K | 381 | 312 | 62 | 3.6 |
| MPF1304KC/90 | 130 | 20449 | 158 | 4000K | 381 | 312 | 62 | 3.6 |
| MPF1534KC/90 | 153 | 23259 | 152 | 4000K | 381 | 312 | 62 | 3.6 |
| MPF1254KD/90 | 125 | 20698 | 166 | 4000K | 444 | 353 | 66 | 5 |
| MPF1624KD/90 | 162 | 25561 | 157 | 4000K | 444 | 353 | 66 | 5 |
| MPF1984KE/90 | 198 | 33116 | 168 | 4000K | 515 | 420 | 87 | 7.6 |
| MPF2354KF/90 | 235 | 38774 | 165 | 4000K | 565 | 460 | 100 | 10.5 |
| MPF2704KF/90 | 270 | 43126 | 160 | 4000K | 565 | 460 | 100 | 10.5 |
| MPF3224KF/90 | 322 | 50687 | 158 | 4000K | 565 | 460 | 100 | 10.5 |
