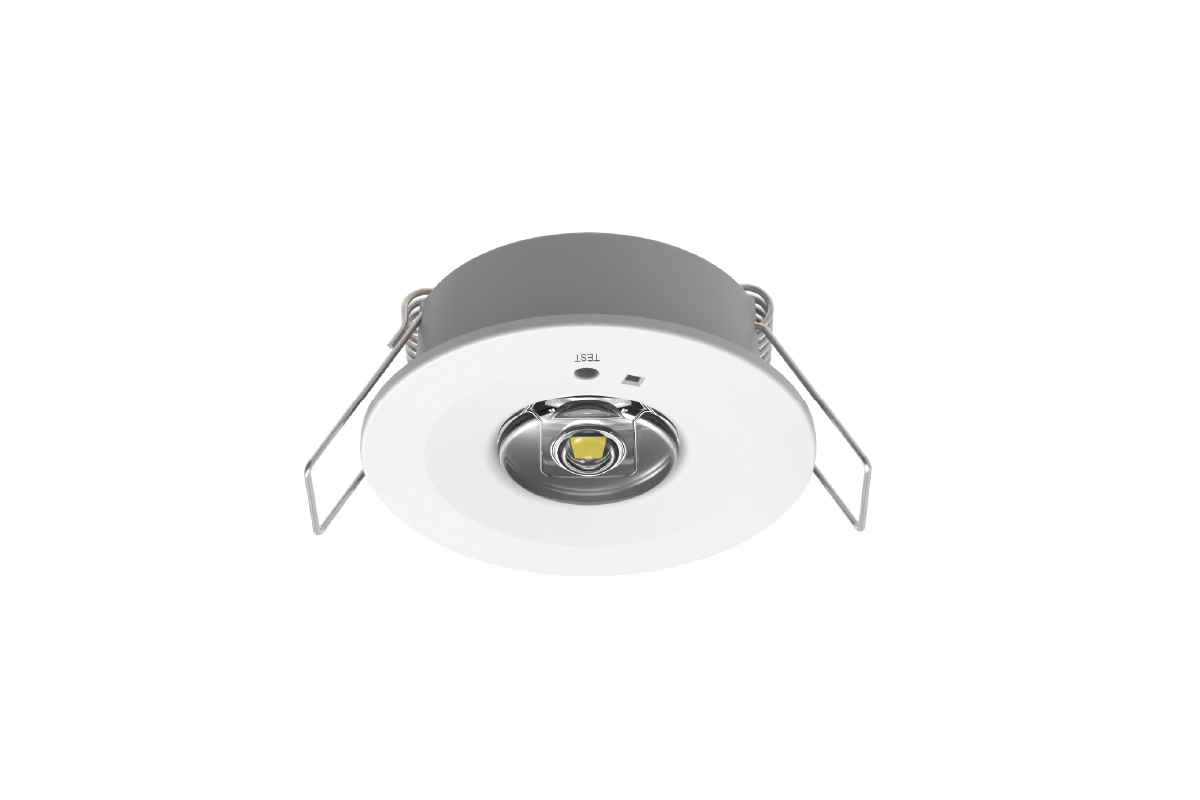

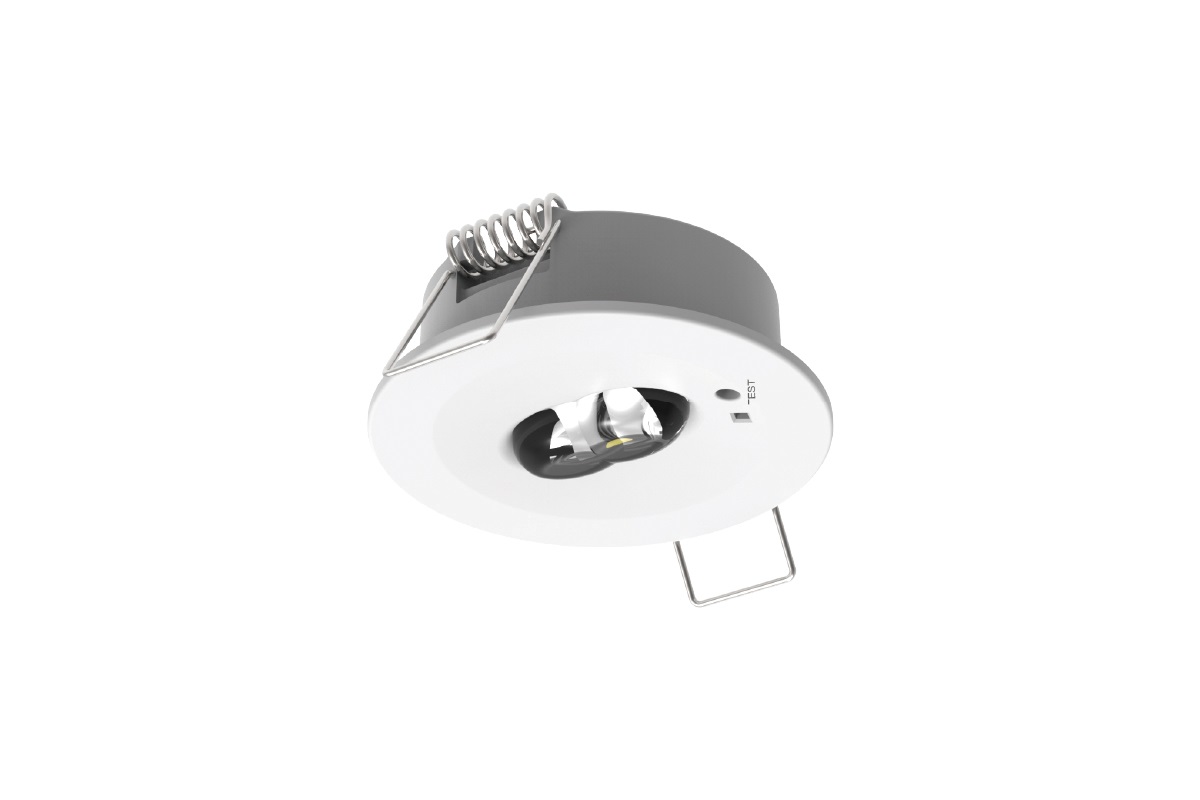

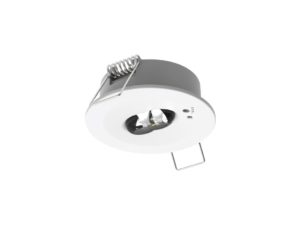

Engineered for versatility, this emergency lighting unit comes with interchangeable lenses tailored for both open area and corridor applications, delivering 140 lumens for open spaces and 160 lumens for corridors. Its compact design cleverly incorporates a foldable driver and battery, making it ideal for installation in shallow ceiling voids. Crafted from durable polycarbonate, the unit operates efficiently within an ambient temperature range of 0C to 45C and carries an IP20 rating, making it well-suited for indoor environments.
Powered by a reliable LiFePO4 3.2V 1.5Ah battery, the luminaire supports multiple operational modes including non-maintained, standard, and self-test functions to ensure dependable performance and simplified maintenance compliance. Designed specifically for recessed mounting, it provides a discreet yet effective emergency lighting solution that fits seamlessly into a variety of commercial and public spaces.

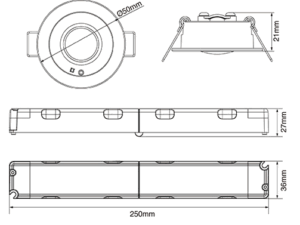

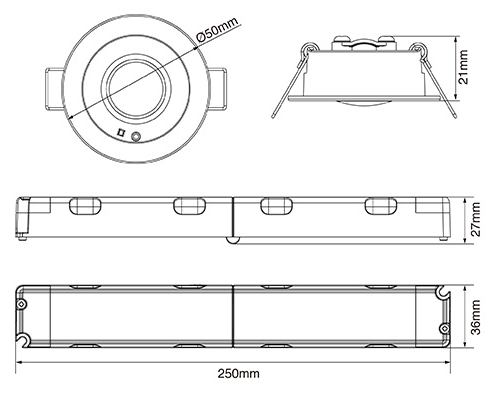

Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Cut-Out (mm) |
---|---|---|---|---|---|---|---|---|
MOR3W/V/NM3 | 1 | 140/160 | 140/160 | 6500 | 850 | 850 | 21 | 44 |
MOR3W/V/NS3 | 1 | 140/160 | 140/160 | 6500 | 850 | 850 | 21 | 44 |
