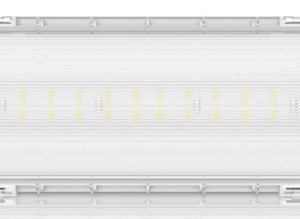

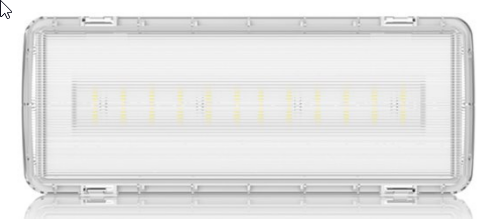

Engineered for durability, efficiency, and adaptability, this high-performance emergency LED bulkhead delivers powerful illumination with a 24-meter viewing distance, making it an excellent choice for both emergency lighting and signage in commercial and public environments. Its robust construction includes IP65-rated protection against dust and water ingress, along with an IK07 impact rating, ensuring reliable operation even in demanding conditions.

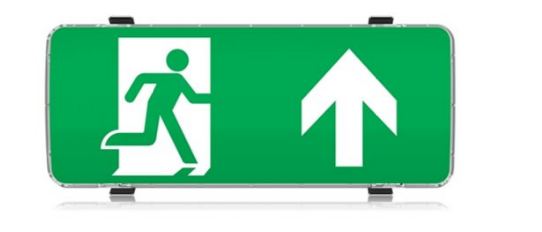

Designed to support both maintained and non-maintained operation modes, the luminaire also offers a recessed mounting option to suit various installation needs. A built-in status indicator enables quick visual diagnostics, while the included legend pack adds flexibility for different signage requirements. Finished in sleek white or black, it features quick push-terminal installation, simplifying setup and reducing installation time.

Order CodeWattageDelivered Lumens
(ta +25°C)
System Efficacy
(lm/W)

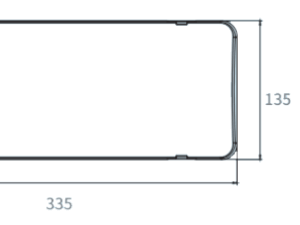

CCT-KLength (mm)Width
(mm)
Height
(mm)
MEBARHO9W/M3964972500033513577
MEBARHO9W/L3964972500033513577
MEBARHO9W/LW3964972500033513577
MEBARHO18W/M318117065500033513577
MEBARHO18W/L318117065500033513577
MEBARHO18W/LW318117065500033513577
