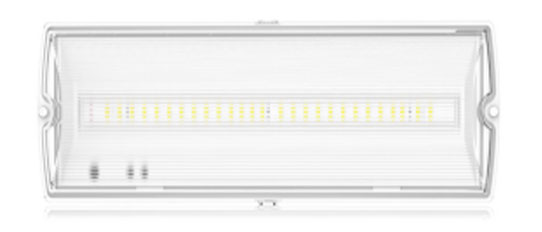

Designed to deliver reliable safety in emergency situations, this versatile LED emergency bulkhead is suitable for both open-area (anti-panic) and escape route applications. Its sleek, slim profile and lightweight construction make it ideal for ceiling or over-door mounting, with flexible surface and recessed installation options to fit various site requirements.
Supporting a wide range of control technologies including self-test and DALI protocols, this bulkhead offers dependable emergency lighting performance. Its versatility and durability make it well-suited for a broad spectrum of indoor and outdoor environments.

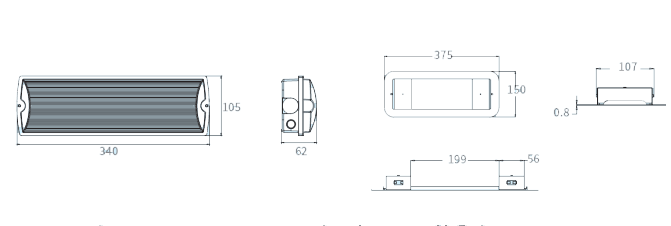

Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|
MEBAR6W/M3 | 6 | 200 | 33 | 5000 | 340 | 105 | 62 | |
MEBAR6W/L3 | 6 | 200 | 33 | 5000 | 340 | 105 | 62 | |
MEBAR6W/LW3 | 6 | 200 | 33 | 5000 | 340 | 105 | 62 |
