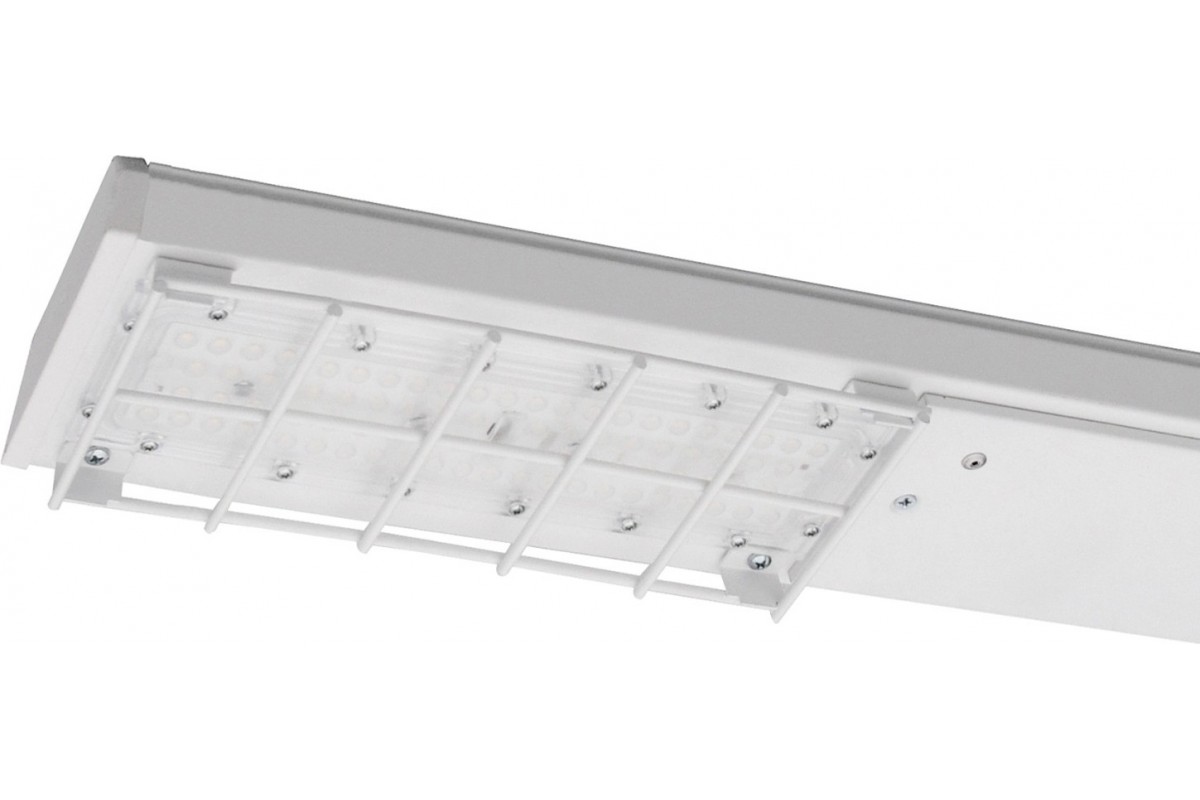

Built to deliver high-performance lighting in demanding indoor environments, the surface mounted high-bay LED luminaire provides precise, direct illumination through expertly crafted lenses. Featuring a silicone rubber gasket and impact-resistant construction, it ensures exceptional durability and reliable operation even in tough conditions. The sturdy aluminium housing, finished in clean white (RAL 9003), complements industrial interiors with a sleek, professional look.
Ideal for ceiling or wall installation, the luminaire is perfectly suited for industrial facilities, warehouses, expansive halls, sports venues, and transport terminals offering efficient and robust lighting exactly where it’s needed most.

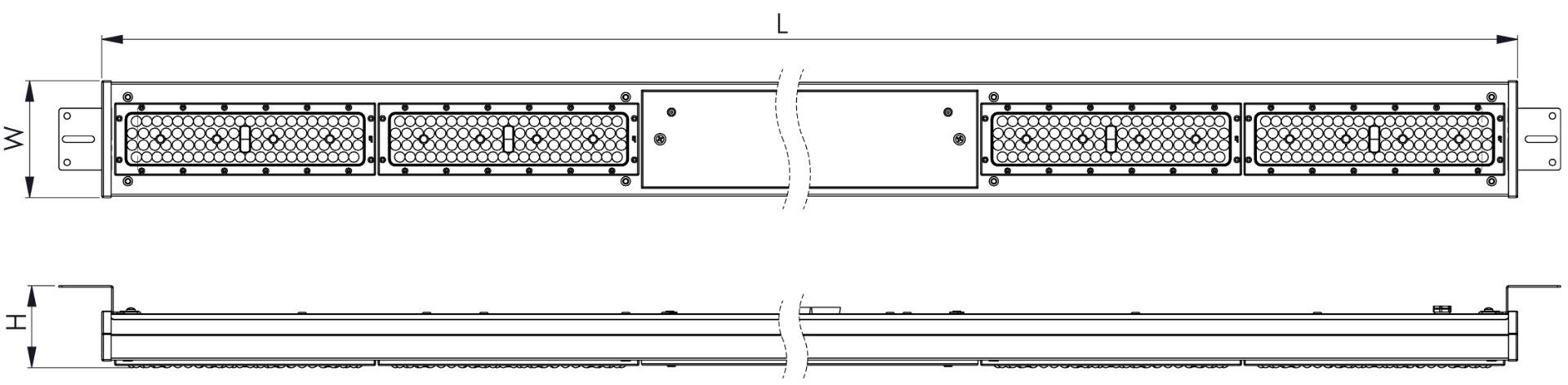

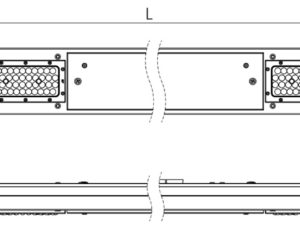

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| LWHSPT594KA/90 | 59 | 9480 | 161 | 4000K | 935 | 114 | 91 | 1.9 |
| LWHSPT704KA/90 | 70 | 11179 | 159 | 4000K | 935 | 114 | 91 | 1.9 |
| LWHSPT834KA/90 | 83 | 12891 | 156 | 4000K | 935 | 114 | 91 | 1.9 |
| LWHSPT874KB/90 | 87 | 14147 | 163 | 4000K | 1190 | 114 | 91 | 2.6 |
| LWHSPT1044KB/90 | 104 | 16768 | 161 | 4000K | 1190 | 114 | 91 | 2.6 |
| LWHSPT1224KB/90 | 122 | 19237 | 158 | 4000K | 1190 | 114 | 91 | 2.6 |
| LWHSPT1154KC/90 | 115 | 18863 | 165 | 4000K | 1444 | 114 | 91 | 3.3 |
| LWHSPT1374KC/90 | 137 | 22357 | 163 | 4000K | 1444 | 114 | 91 | 3.3 |
| LWHSPT1504KC/90 | 150 | 23925 | 160 | 4000K | 1444 | 114 | 91 | 3.3 |
| LWHSPT1634KC/90 | 163 | 25649 | 158 | 4000K | 1444 | 114 | 91 | 3.3 |
| LWHSPT1734KD/90 | 173 | 28148 | 163 | 4000K | 1953 | 114 | 91 | 4.6 |
| LWHSPT2074KD/90 | 207 | 33363 | 161 | 4000K | 1953 | 114 | 91 | 4.6 |
| LWHSPT2444KD/90 | 244 | 38273 | 157 | 4000K | 1953 | 114 | 91 | 4.6 |
