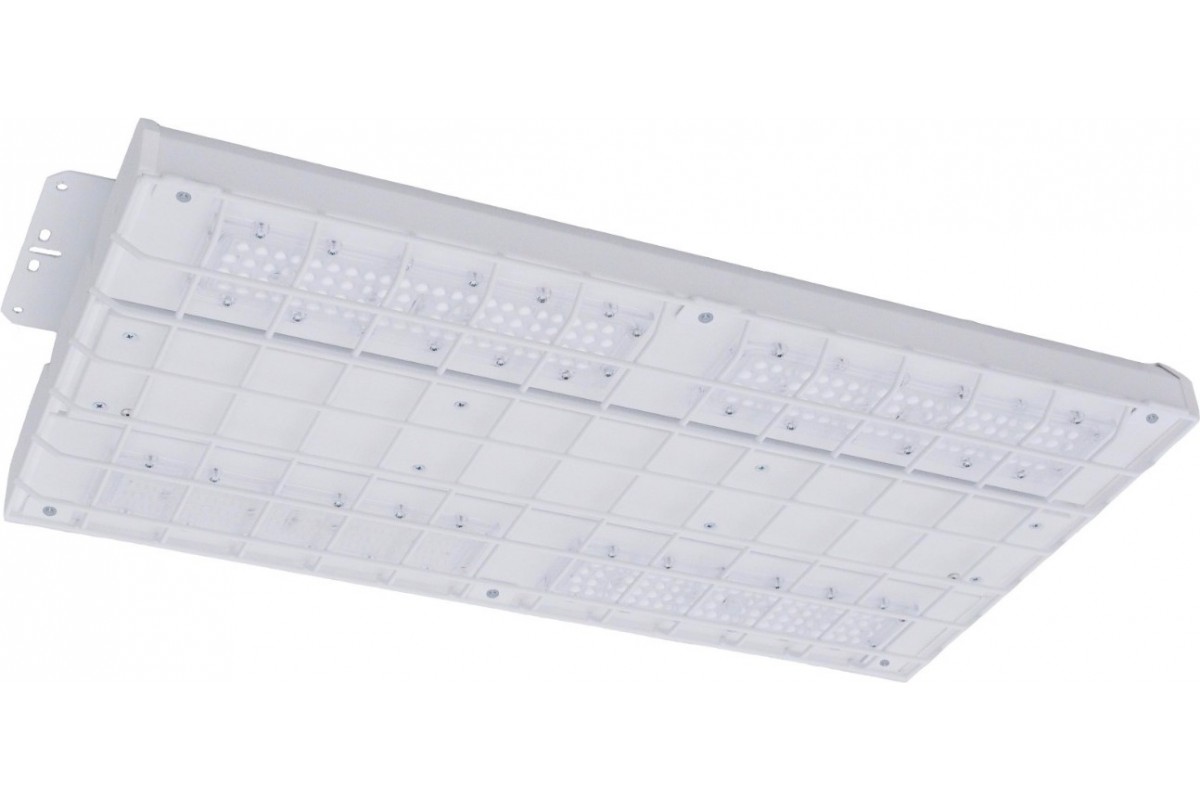

Engineered for reliable, high-output lighting in demanding indoor environments, the surface mounted high-bay LED luminaire delivers direct illumination through advanced lenses. Equipped with a silicone rubber gasket and impact-resistant construction, it ensures enhanced durability and long-lasting protection. The robust aluminium housing, finished in clean white (RAL 9003), combines strength with a sleek, professional appearance.
Suitable for both ceiling and wall mounting, this versatile luminaire is perfect for industrial facilities, warehouses, halls, sports venues, and transport terminals offering efficient, resilient illumination exactly where it’s needed most.

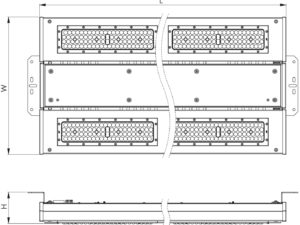

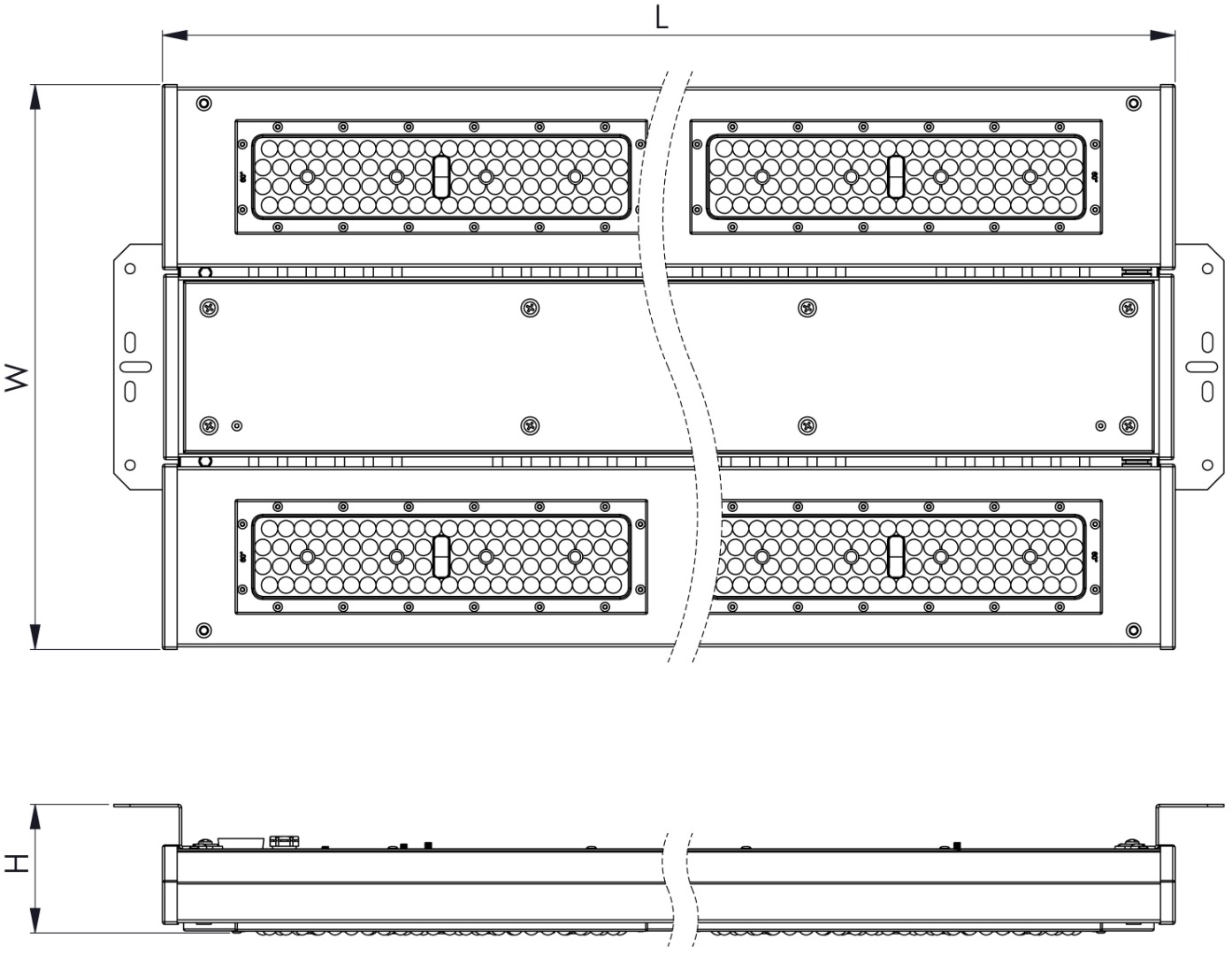

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| IWSSPT414KA/90 | 41 | 6769 | 167 | 4000K | 435 | 343 | 93 | 2.8 |
| IWSSPT474KA/90 | 47 | 7684 | 165 | 4000K | 435 | 343 | 93 | 2.8 |
| IWSSPT594KA/90 | 59 | 9480 | 162 | 4000K | 435 | 343 | 93 | 2.8 |
| IWSSPT704KA/90 | 70 | 11179 | 160 | 4000K | 435 | 343 | 93 | 2.8 |
| IWSSPT834KA/90 | 83 | 12891 | 156 | 4000K | 435 | 343 | 93 | 2.8 |
| IWSSPT914KB/90 | 91 | 15367 | 169 | 4000K | 645 | 343 | 93 | 4.3 |
| IWSSPT1154KB/90 | 115 | 18863 | 165 | 4000K | 645 | 343 | 93 | 4.3 |
| IWSSPT1394KB/90 | 139 | 22357 | 161 | 4000K | 645 | 343 | 93 | 4.3 |
| IWSSPT1634KB/90 | 163 | 25649 | 158 | 4000K | 645 | 343 | 93 | 4.3 |
| IWSSPT1714KC/90 | 171 | 28148 | 164 | 4000K | 945 | 343 | 93 | 6.5 |
| IWSSPT2074KC/90 | 207 | 33363 | 161 | 4000K | 945 | 343 | 93 | 6.5 |
| IWSSPT2444KC/90 | 244 | 38273 | 157 | 4000K | 945 | 343 | 93 | 6.5 |
