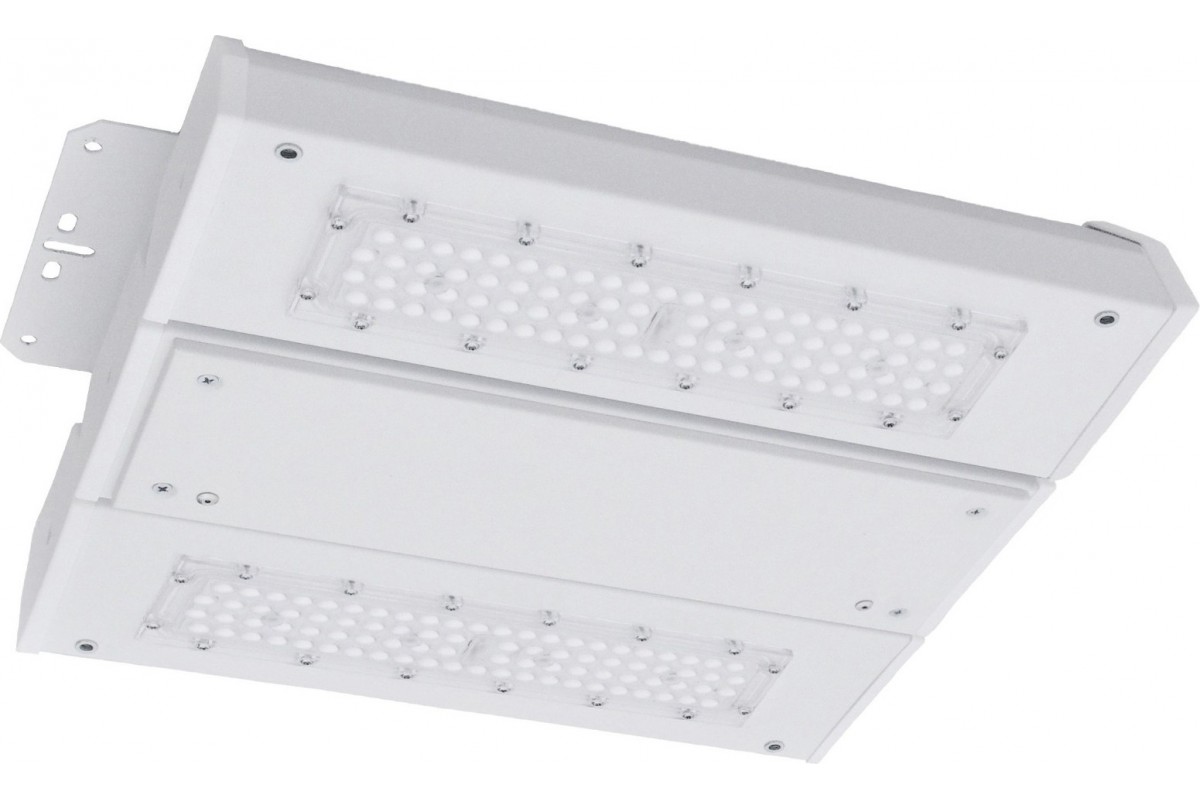

Offering versatile installation options for both surface-mounted and suspended setups, the high-bay LED luminaire delivers powerful, direct illumination tailored for demanding indoor environments. Featuring precision lenses, a silicone rubber gasket, and impact-resistant construction, it guarantees durability and consistent performance even in industrial settings. The aluminium housing, finished in crisp white (RAL 9003), provides a clean, modern aesthetic that fits seamlessly into functional spaces.
Perfectly suited for industries, warehouses, halls, sports facilities, and transport terminals, the luminaire combines high performance, robust protection, and flexible mounting options to address a broad spectrum of lighting requirements.

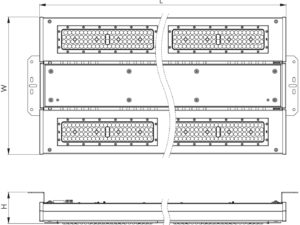

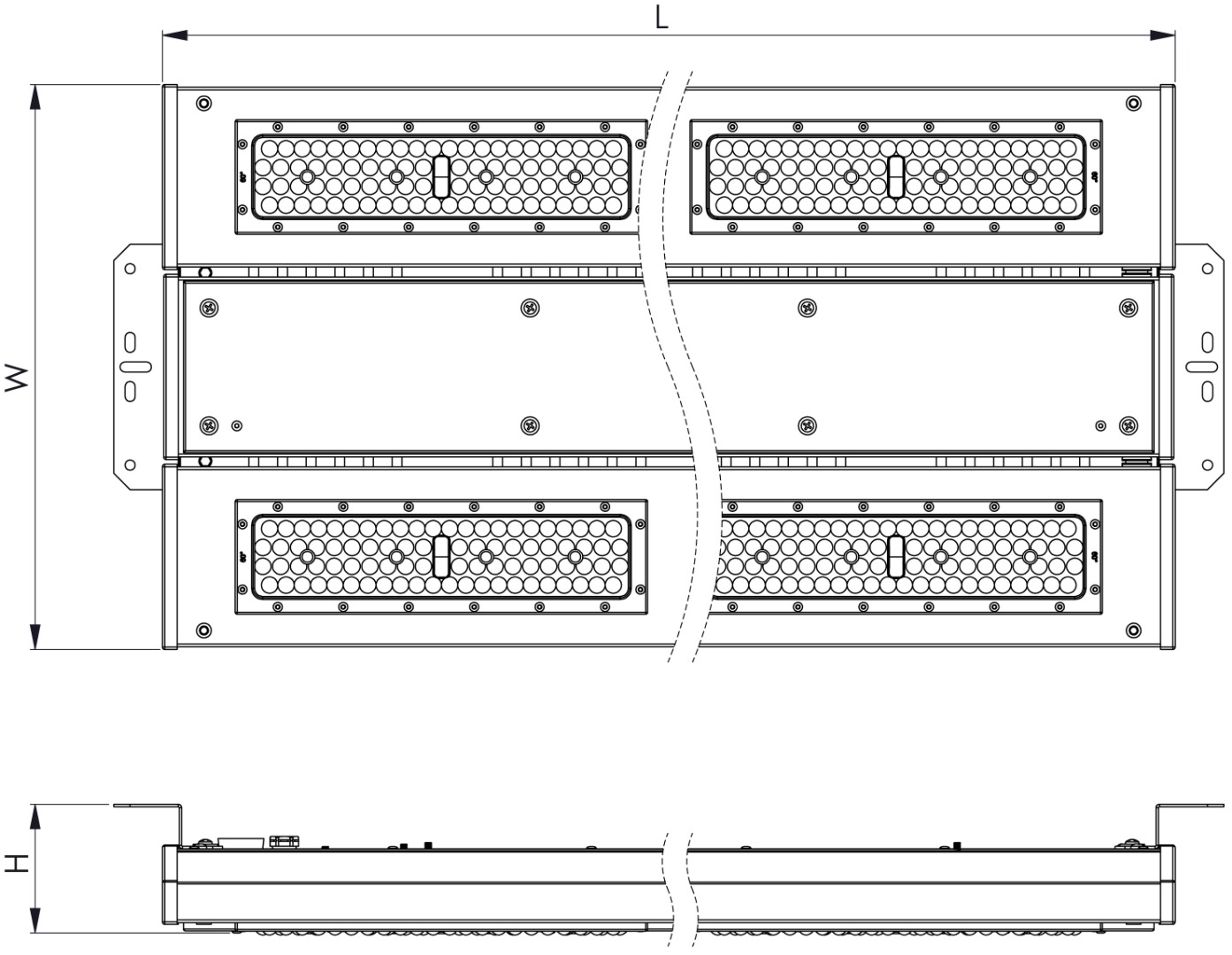

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| IWS414KA/90 | 41 | 7477 | 185 | 4000K | 435 | 343 | 78 | 2.8 |
| IWS474KA/90 | 47 | 8488 | 182 | 4000K | 435 | 343 | 78 | 2.8 |
| IWS594KA/90 | 59 | 10472 | 178 | 4000K | 435 | 343 | 78 | 2.8 |
| IWS704KA/90 | 70 | 12348 | 176 | 4000K | 435 | 343 | 78 | 2.8 |
| IWS834KA/90 | 83 | 14240 | 173 | 4000K | 435 | 343 | 78 | 2.8 |
| IWS914KB/90 | 91 | 16975 | 186 | 4000K | 645 | 343 | 78 | 4.3 |
| IWS1154KB/90 | 115 | 20837 | 182 | 4000K | 645 | 343 | 78 | 4.3 |
| IWS1394KB/90 | 139 | 24697 | 178 | 4000K | 645 | 343 | 78 | 4.3 |
| IWS1634KB/90 | 163 | 28333 | 174 | 4000K | 645 | 343 | 78 | 4.3 |
| IWS1714KC/90 | 171 | 31094 | 181 | 4000K | 945 | 343 | 78 | 6.5 |
| IWS2074KC/90 | 207 | 36854 | 178 | 4000K | 945 | 343 | 78 | 6.5 |
| IWS2444KC/90 | 244 | 42279 | 174 | 4000K | 945 | 343 | 78 | 6.5 |
