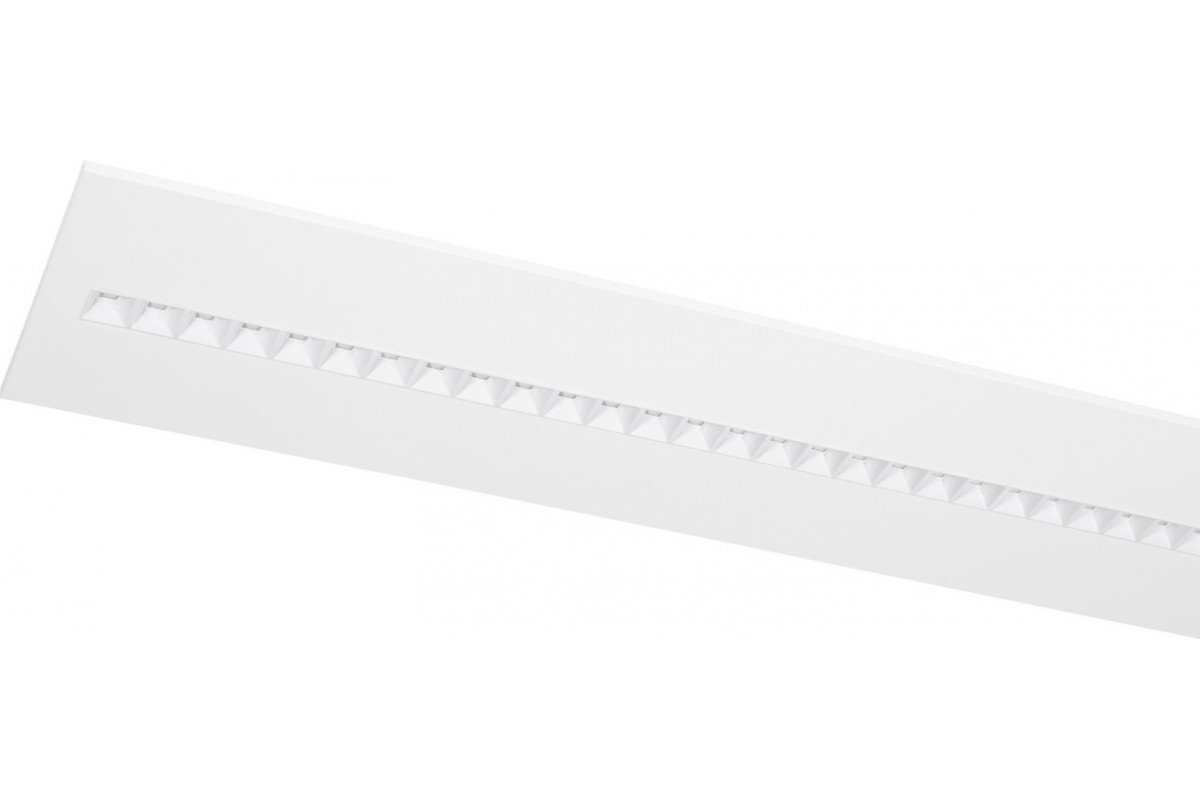

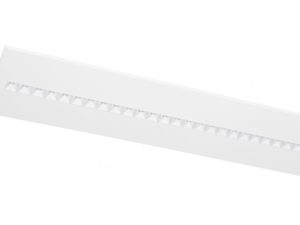

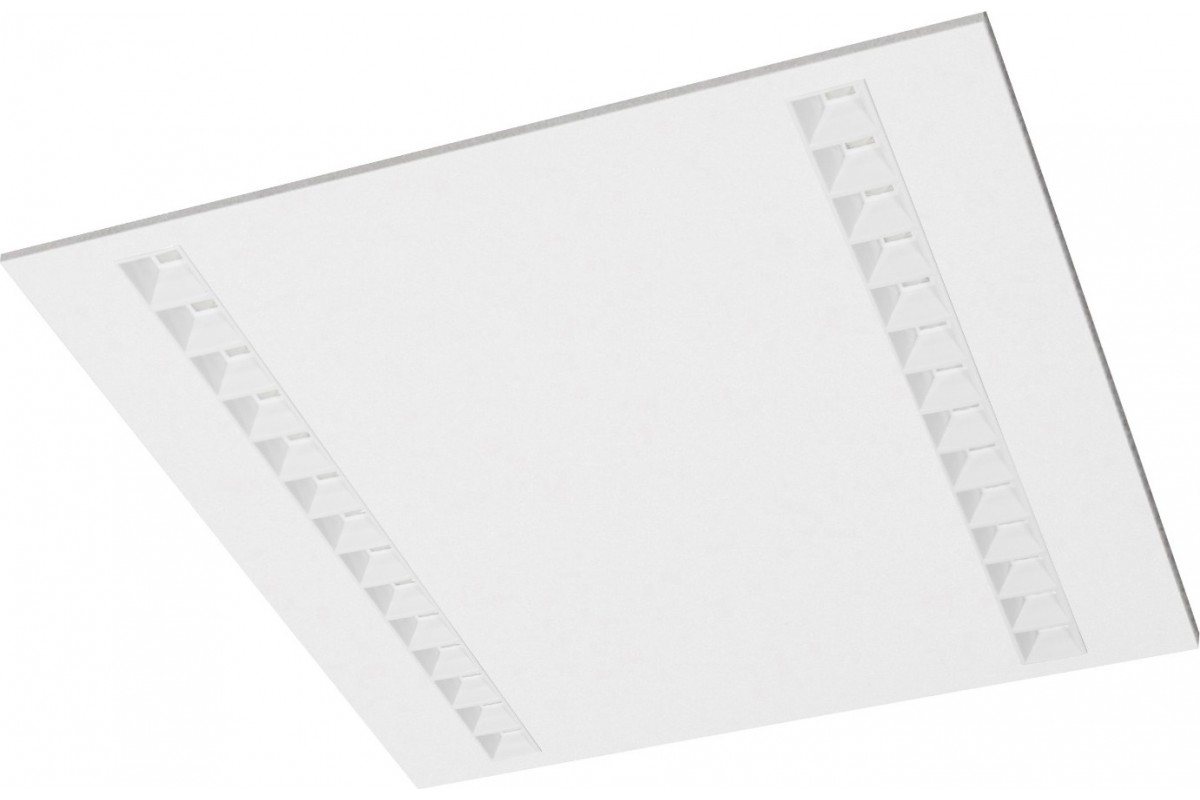

Offering clean, direct light distribution, the recessed-mounted LED luminaire emphasizes visual comfort and energy efficiency. Its precision-engineered optical system, featuring a double parabolic reflector and integrated lenses, delivers low-glare illumination, making it ideal for spaces where clarity and comfort are paramount.
Constructed from durable steel and finished in a crisp white (RAL 9003S), the luminaire integrates seamlessly into modern interior environments. Designed for flexible installation, it fits modular suspended ceilings or ceilings with cut-out openings, with mounting frames available separately for convenience.
Perfectly suited for offices, educational facilities, corridors, retail areas, and public spaces, the luminaire balances performance, aesthetics, and adaptability to fulfill the requirements of contemporary lighting design.
Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|
HREC94KA/WR | 9 | 1428 | 155 | 4000K | 595 | 295 | 31 | 1.7 |
HREC114KA/WR | 11 | 1752 | 158 | 4000K | 595 | 295 | 31 | 1.7 |
HREC134KA/WR | 13 | 2065 | 154 | 4000K | 595 | 295 | 31 | 1.7 |
HREC164KA/WR | 16 | 2380 | 152 | 4000K | 595 | 295 | 31 | 1.7 |
HREC184KB/WR | 18 | 2920 | 166 | 4000K | 595 | 595 | 31 | 2.7 |
HREC224KB/WR | 22 | 3583 | 164 | 4000K | 595 | 595 | 31 | 2.7 |
HREC264KB/WR | 26 | 4222 | 162 | 4000K | 595 | 595 | 31 | 2.7 |
HREC314KB/WR | 31 | 4867 | 158 | 4000K | 595 | 595 | 31 | 2.7 |
HREC184KC/WR | 18 | 2920 | 166 | 4000K | 1195 | 295 | 31 | 2.8 |
HREC224KC/WR | 22 | 3583 | 164 | 4000K | 1195 | 295 | 31 | 2.8 |
HREC264KC/WR | 26 | 4222 | 162 | 4000K | 1195 | 295 | 31 | 2.8 |
HREC314KC/WR | 31 | 4867 | 158 | 4000K | 1195 | 295 | 31 | 2.8 |
HREC344KD/WR | 34 | 5840 | 173 | 4000K | 1195 | 595 | 31 | 4.8 |
HREC424KD/WR | 42 | 7165 | 171 | 4000K | 1195 | 595 | 31 | 4.8 |
HREC514KD/WR | 51 | 8445 | 136 | 4000K | 1195 | 595 | 31 | 4.8 |
HREC594KD/WR | 59 | 9733 | 165 | 4000K | 1195 | 595 | 31 | 4.8 |
