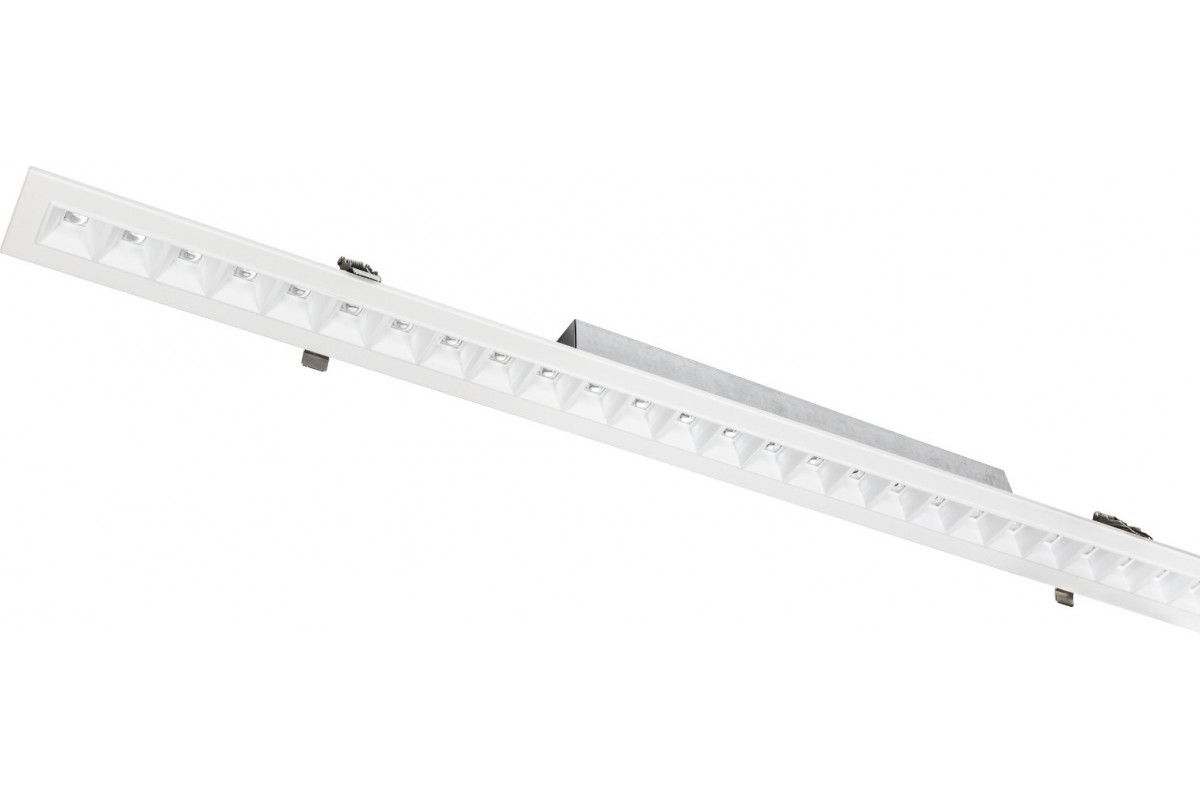

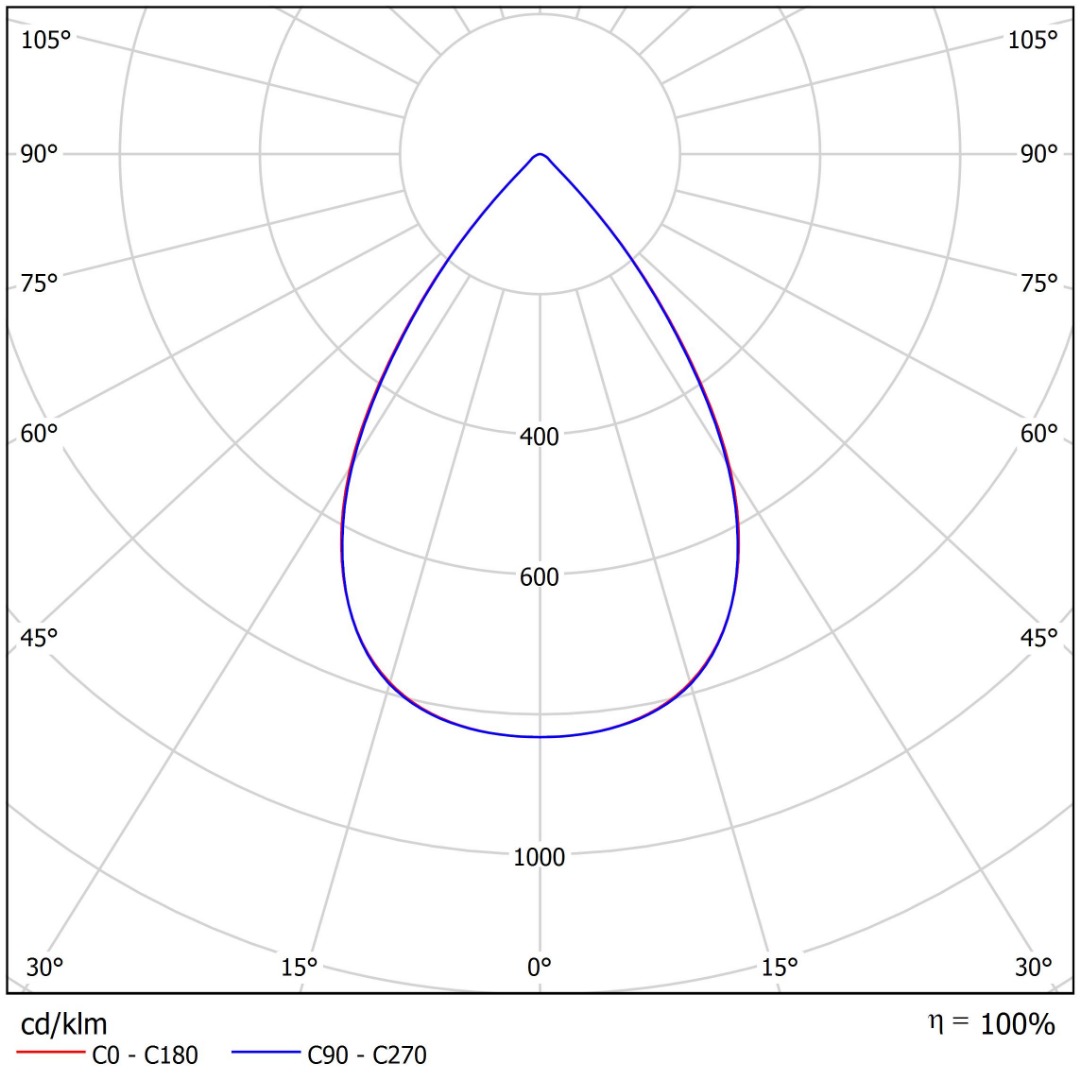

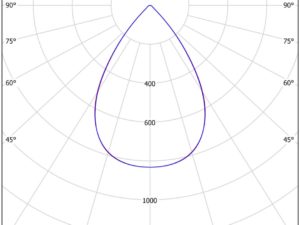

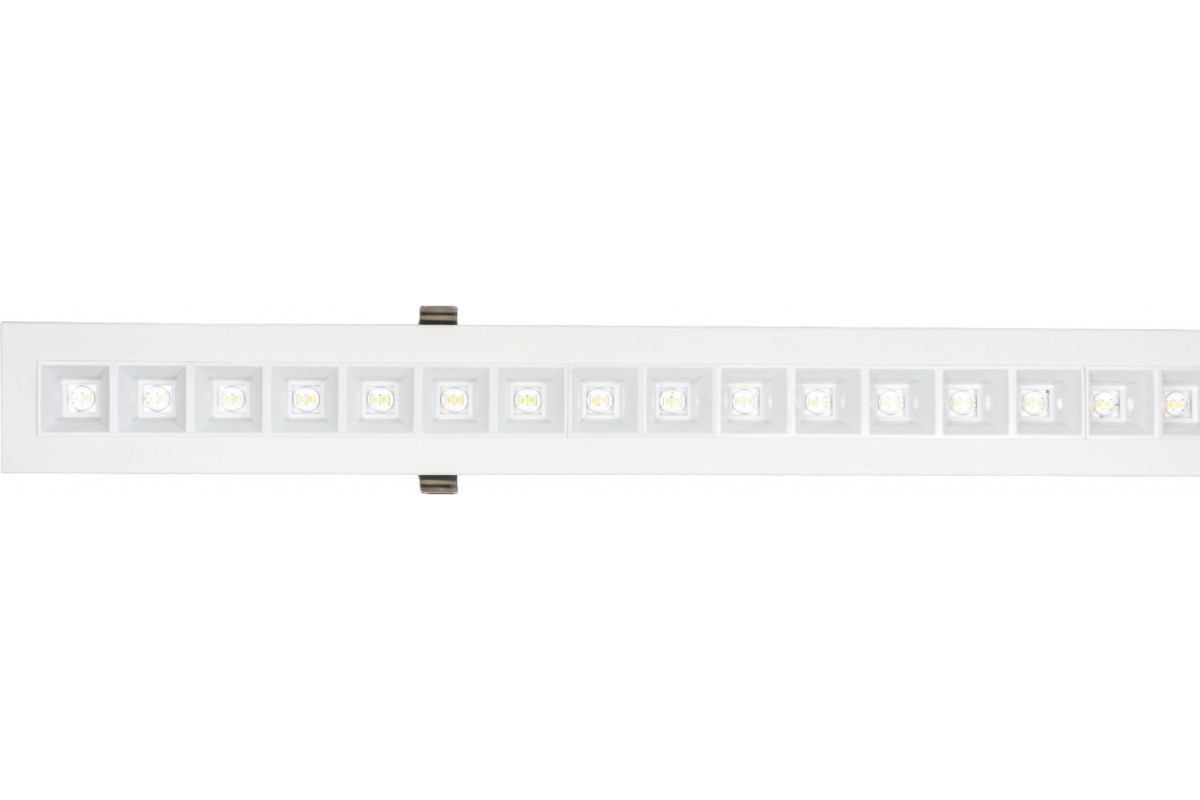

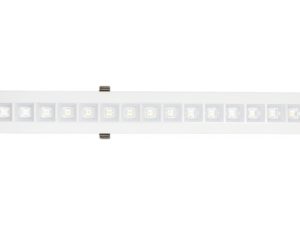

Delivering efficient and direct lighting, the recessed-mounted LED luminaire is designed with a focus on visual comfort and precise control. Its advanced optical system incorporates a double parabolic reflector paired with integrated lenses, ensuring low-glare illumination that is well suited to visually demanding indoor environments.

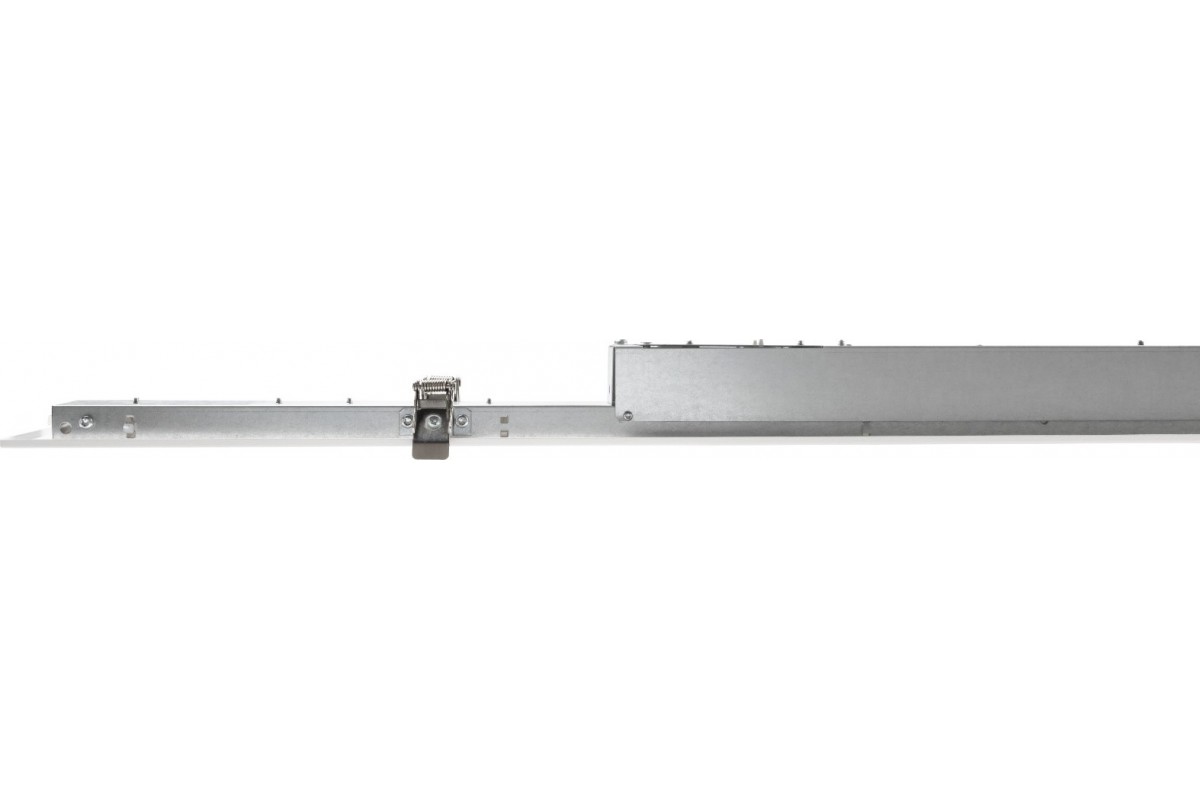

Crafted from durable steel and finished in a crisp white (RAL 9003S), the luminaire presents a sleek and unobtrusive profile. Engineered for installation in ceilings with cut-out openings, it adapts seamlessly to both new construction and retrofit projects.
Ideal for offices, educational institutions, corridors, retail spaces, and other public indoor areas, the luminaire offers a harmonious blend of high performance, refined aesthetics, and flexible installation options.

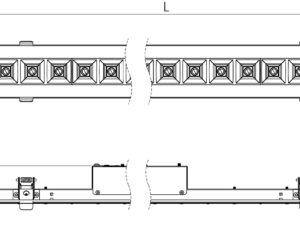

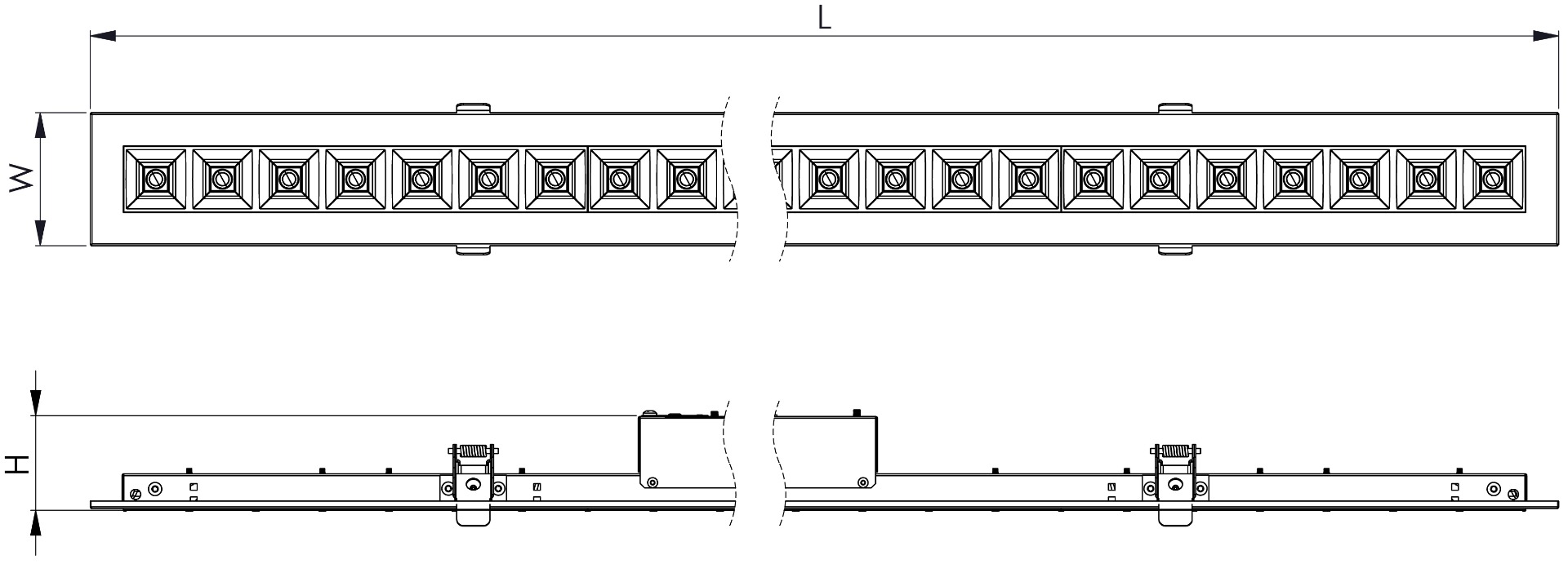

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Cut-Out (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|
| HLIN104KA/WR | 10 | 1460 | 151 | 4000K | 600 | 80 | 62 | 570 x 70 | 1.3 |
| HLIN114KA/WR | 11 | 1791 | 158 | 4000K | 600 | 80 | 62 | 570 x 70 | 1.3 |
| HLIN144KA/WR | 14 | 2111 | 153 | 4000K | 600 | 80 | 62 | 570 x 70 | 1.3 |
| HLIN164KA/WR | 16 | 2433 | 149 | 4000K | 600 | 80 | 62 | 570 x 70 | 1.3 |
| HLIN184KB/WR | 18 | 2920 | 166 | 4000K | 1156 | 80 | 62 | 1128 x 70 | 1.7 |
| HLIN224KB/WR | 22 | 3583 | 164 | 4000K | 1156 | 80 | 62 | 1128 x 70 | 1.7 |
| HLIN264KB/WR | 26 | 4223 | 162 | 4000K | 1156 | 80 | 62 | 1128 x 70 | 1.7 |
| HLIN314KB/WR | 31 | 4867 | 158 | 4000K | 1156 | 80 | 62 | 1128 x 70 | 1.7 |
