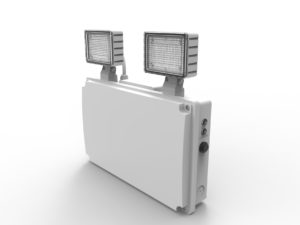

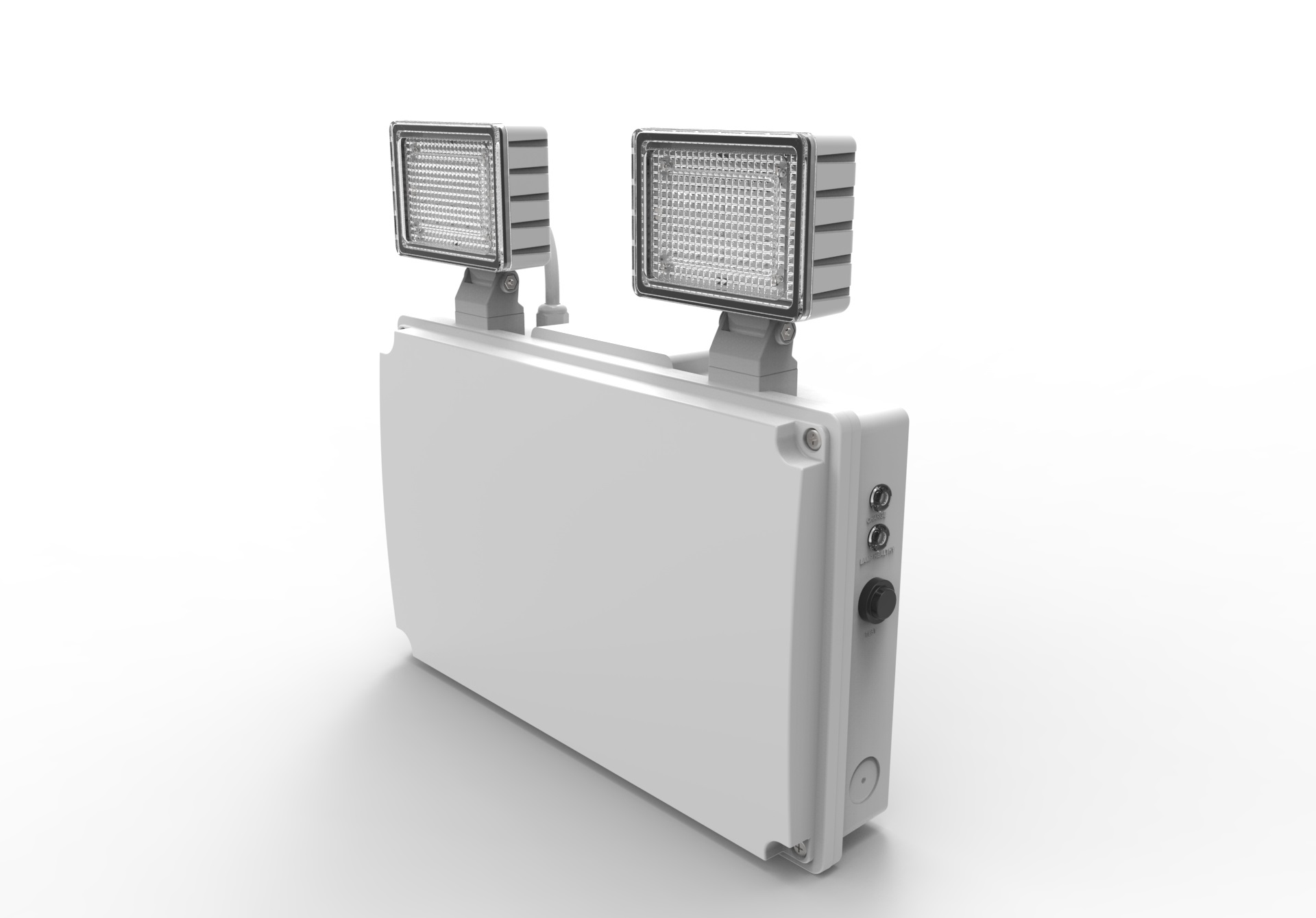

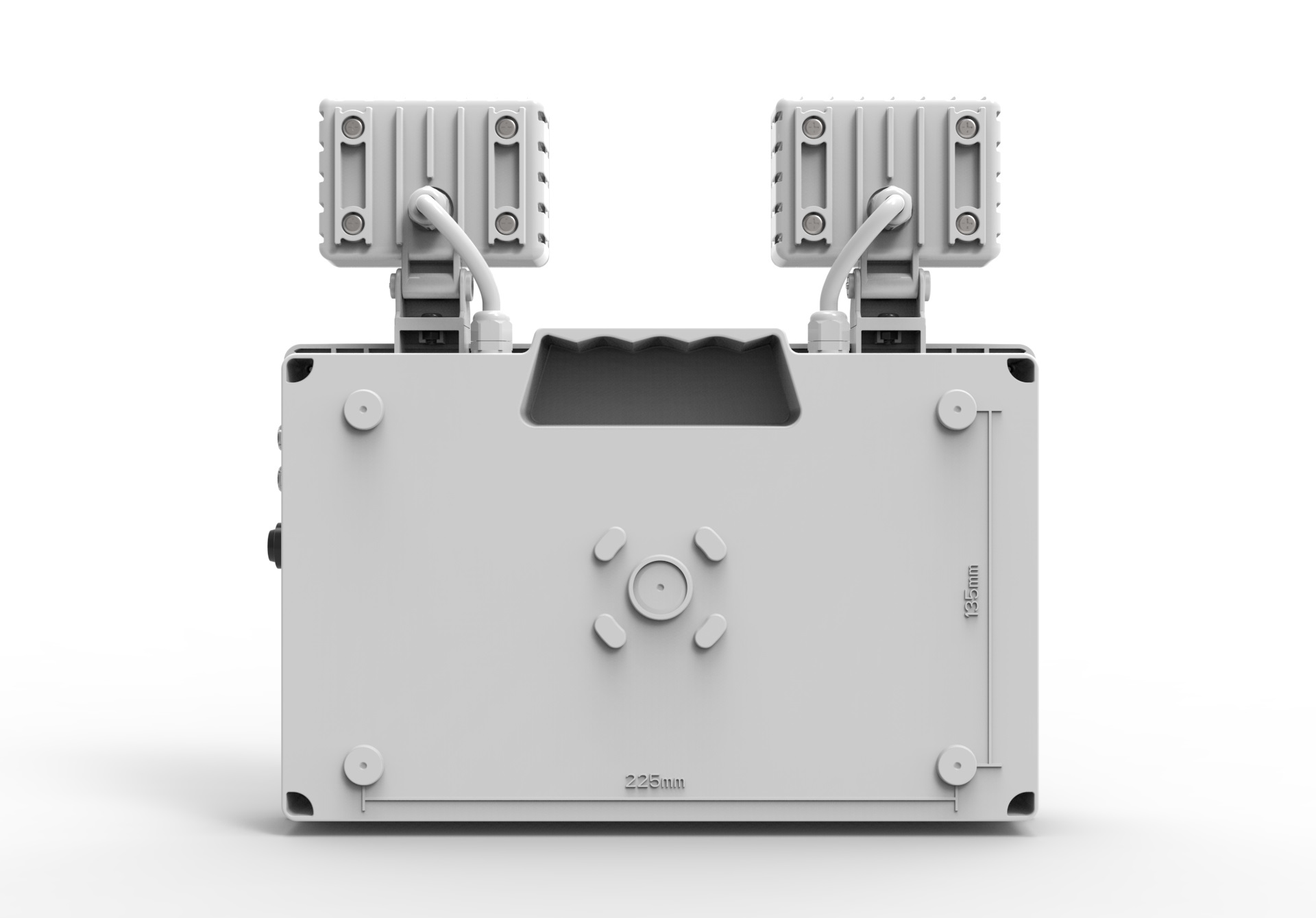

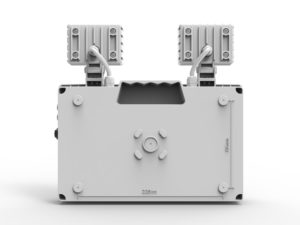

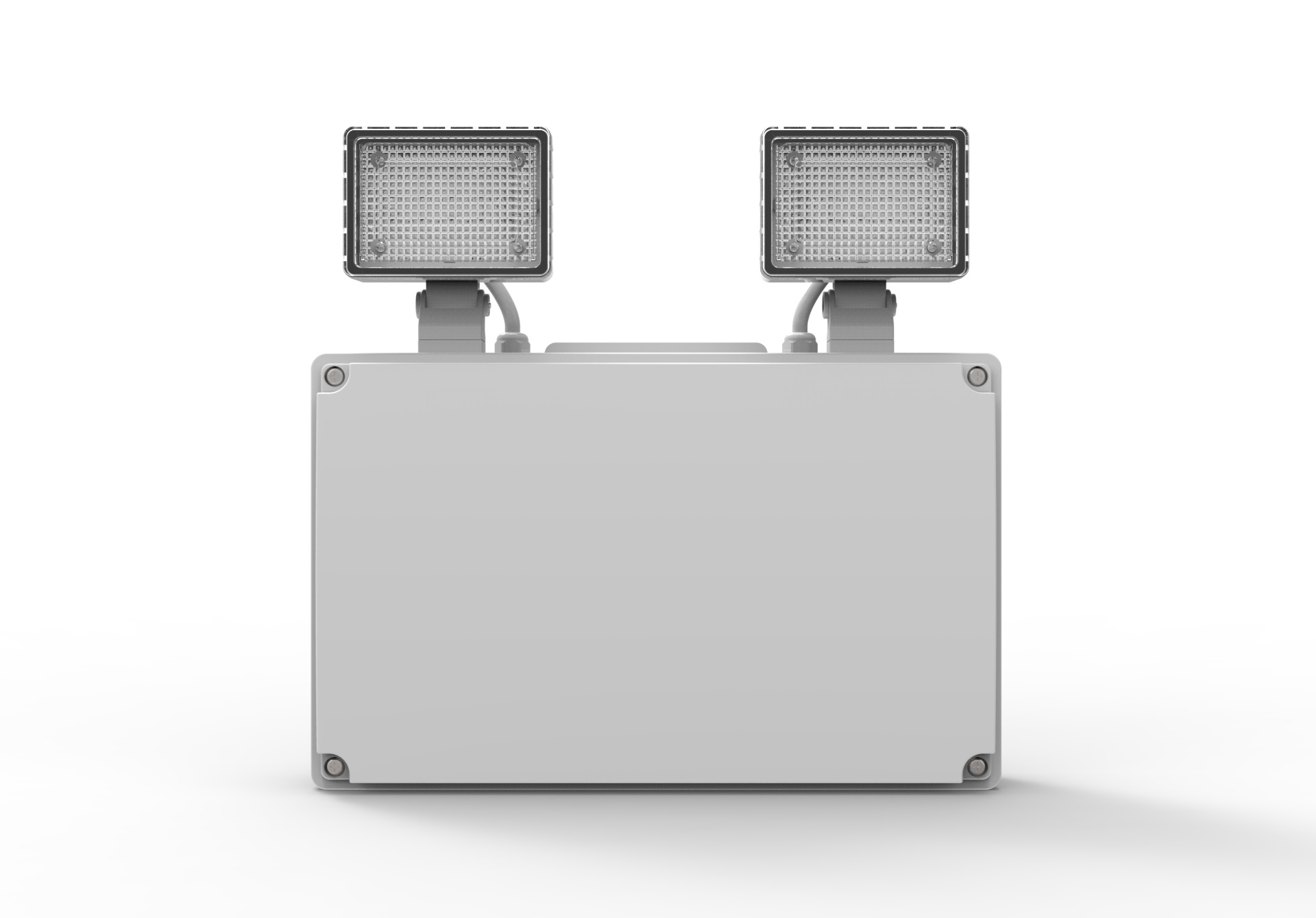

Boasting a robust and modern design, the emergency lighting unit is equipped with two powerful heads delivering 500 and 1000 lumens respectively, ensuring strong and reliable illumination when it matters most. Built from durable polycarbonate and intended for wall mounting, it performs efficiently across ambient temperatures ranging from 0C to 45C.
Engineered for demanding environments, the luminaire carries an IP65 rating to safeguard against dust and water ingress, making it well-suited for harsher conditions. Energy-efficient operation is maintained through low input power consumption ranging between 2.5W and 4.5W. Additionally, a specialized AC110V yellow version is available for applications requiring distinct color-coded emergency indications.

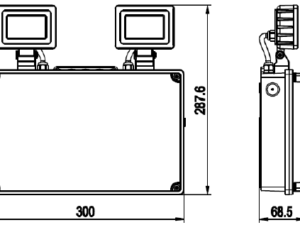

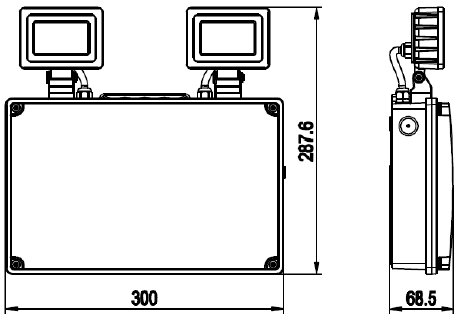

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) |
|---|---|---|---|---|---|---|---|
| ETSIP65565K/NM3 | 5 | 500 | 100 | 6500 | 300 | 287.5 | 68.5 |
| ETSIP65565K/S3 | 5 | 500 | 100 | 6500 | 300 | 287.5 | 68.5 |
| ETSIP65965K/NM3 | 9 | 1000 | 111 | 6500 | 300 | 287.5 | 68.5 |
| ETSIP65965K/S3 | 9 | 1000 | 111 | 6500 | 300 | 287.5 | 68.5 |
