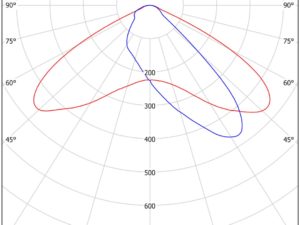

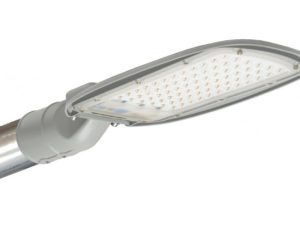

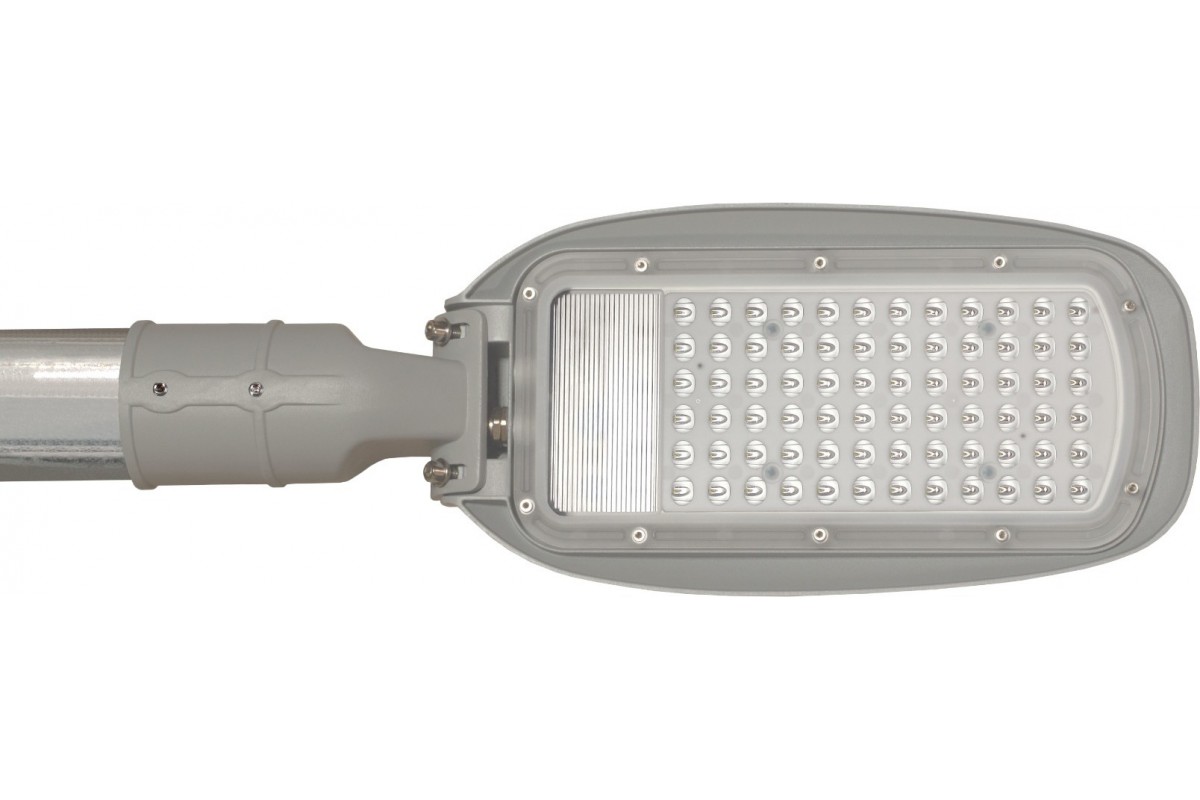

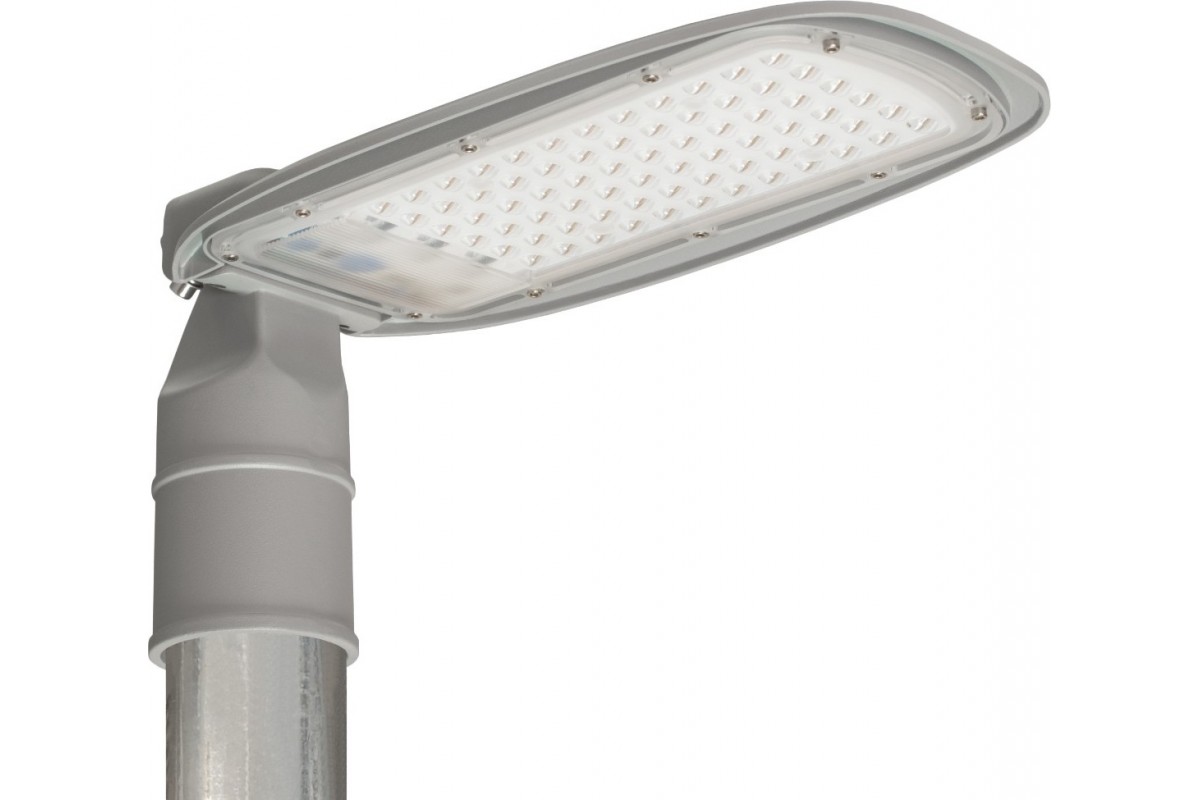

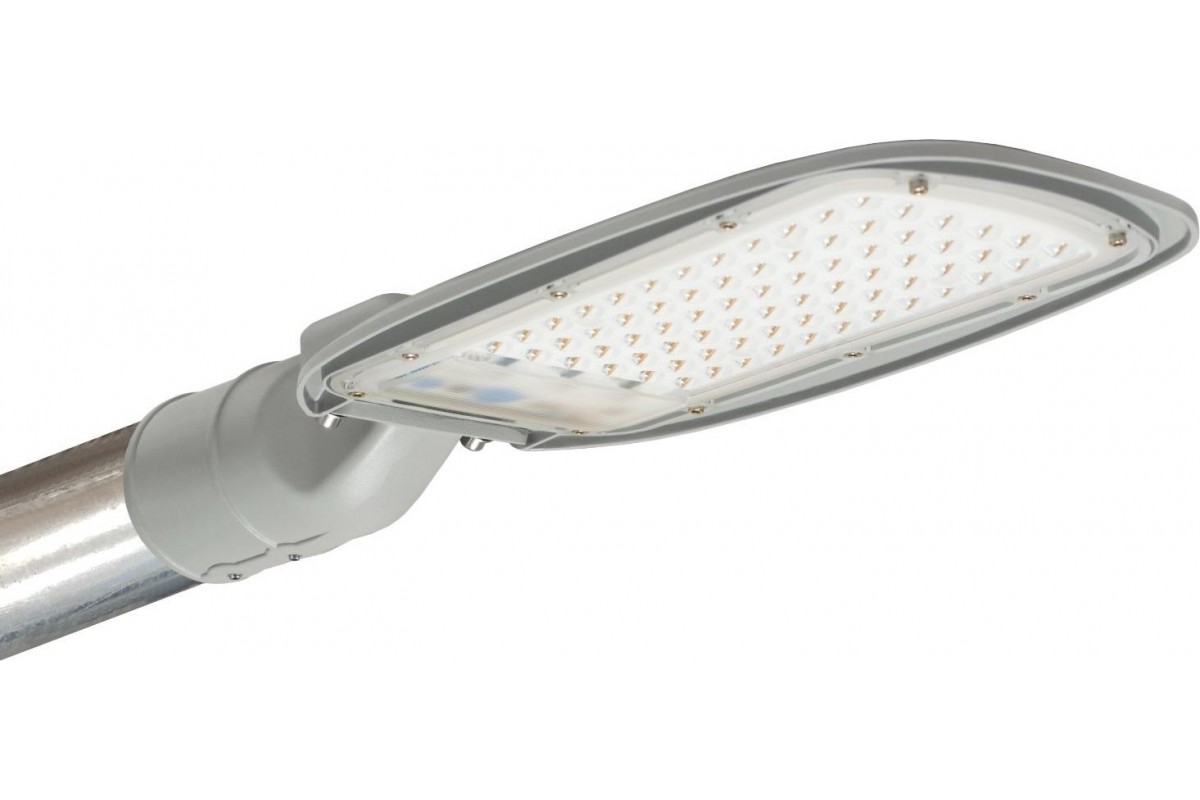

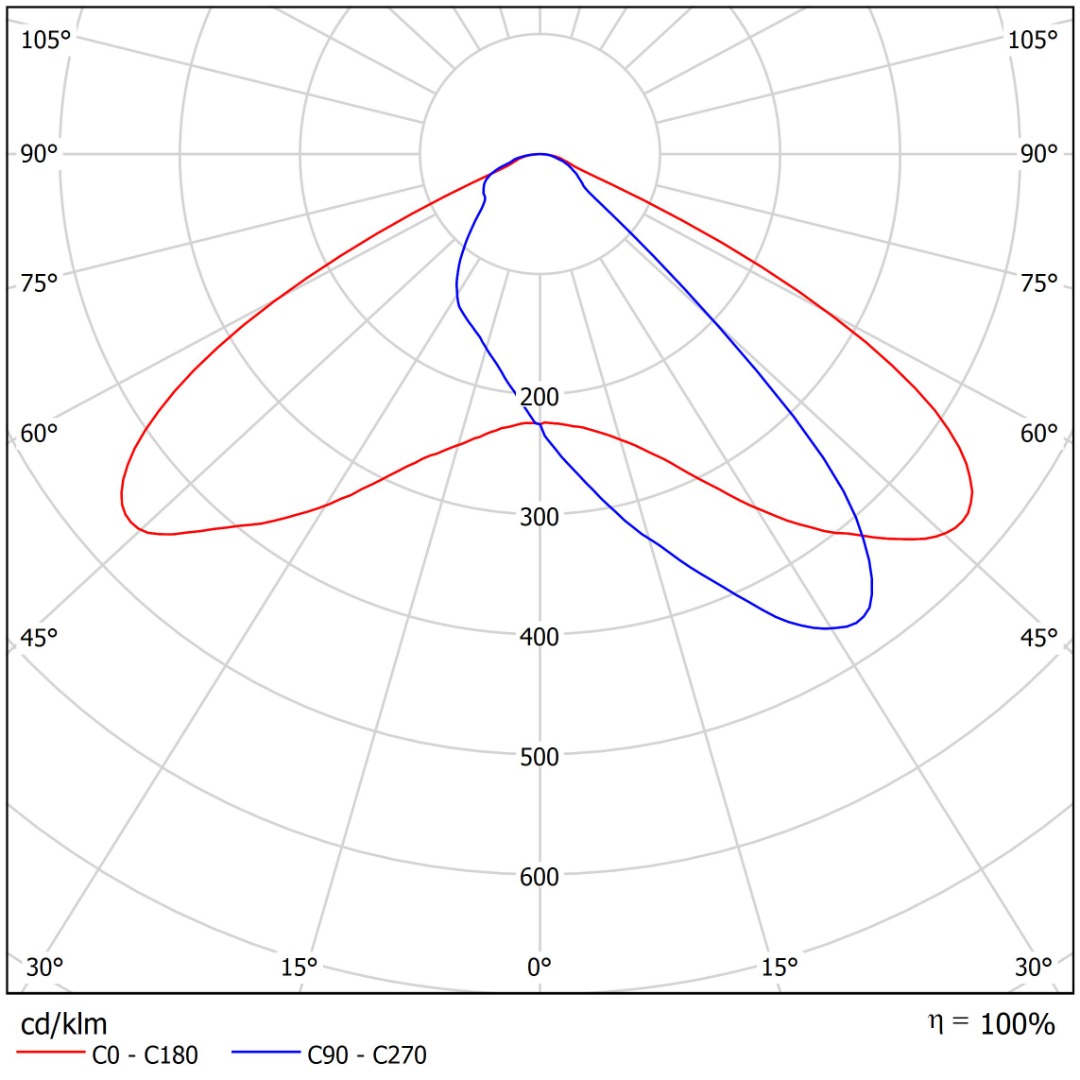

Engineered to provide dependable direct illumination, the pole-mounted basic LED street luminaire is well-suited for outdoor settings including public spaces and parking areas. Its UV-stabilized, impact-resistant polycarbonate asymmetric street optics ensure efficient light distribution while maintaining long-lasting performance in challenging conditions.

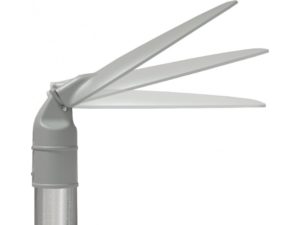

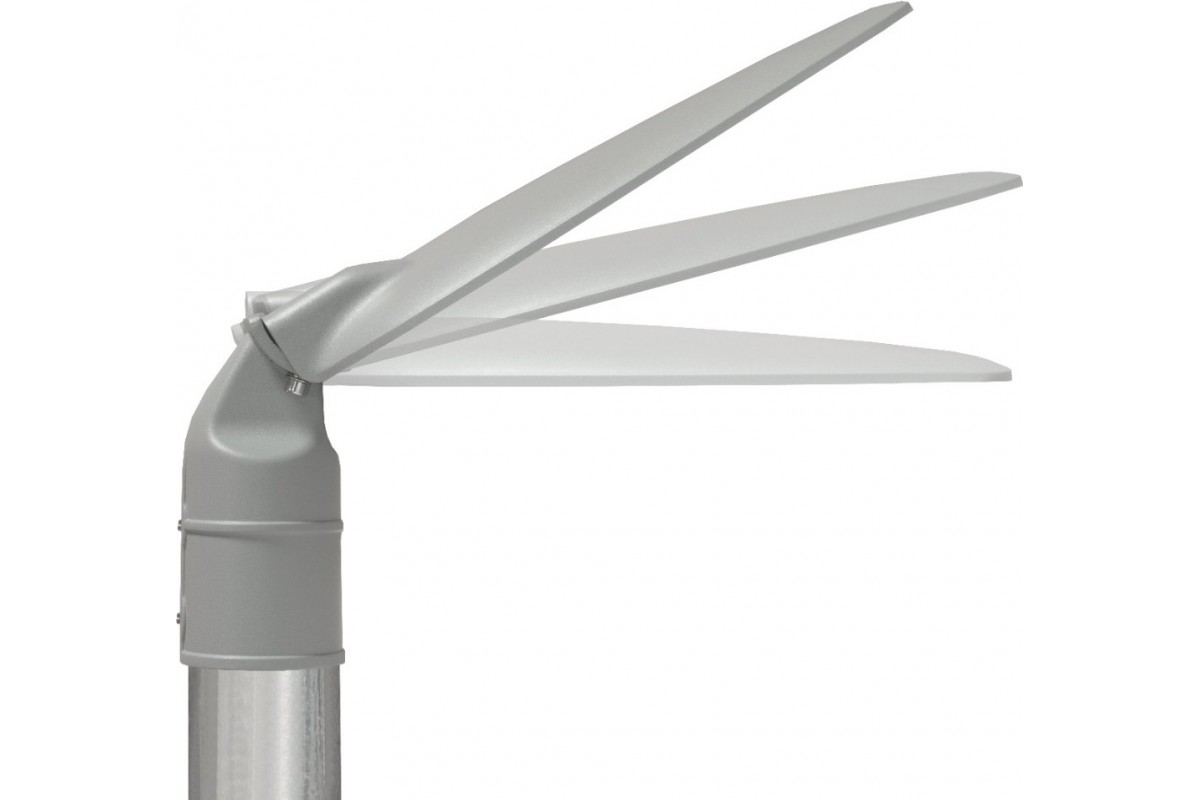

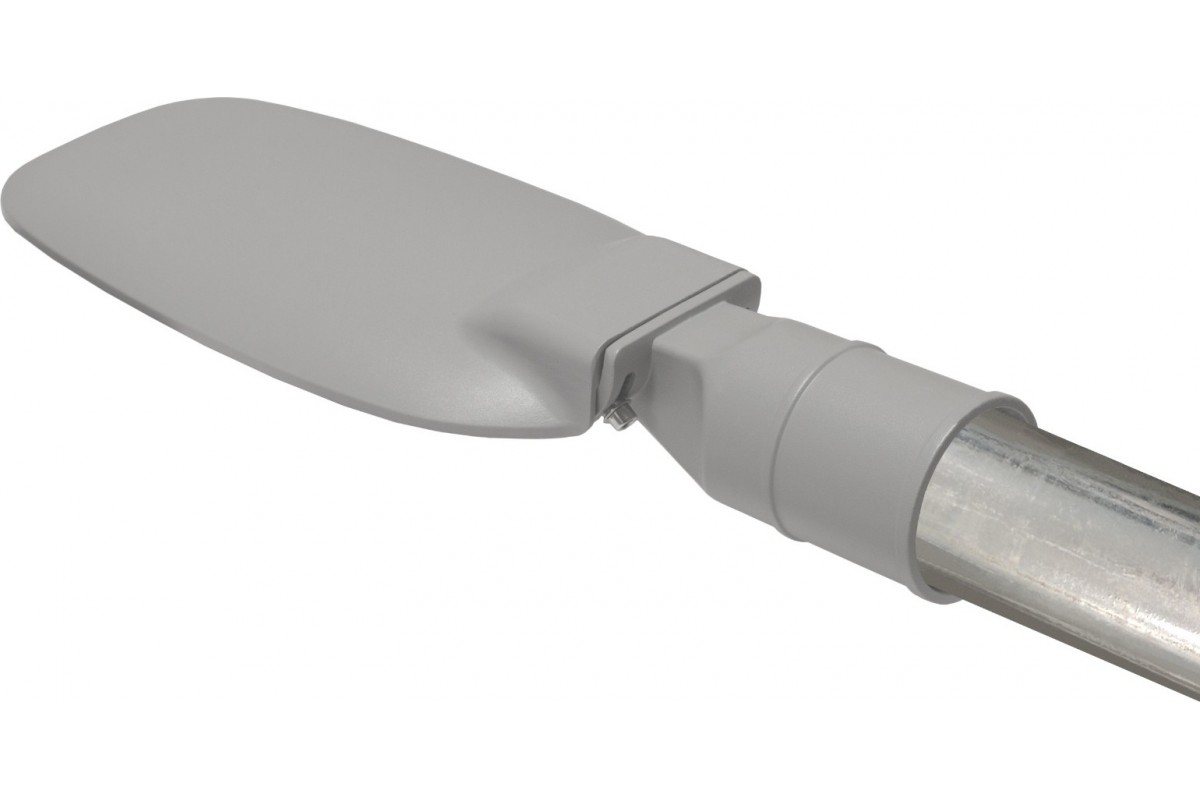

Encased in a sturdy aluminium housing finished in light grey (RAL 7042), the luminaire offers excellent weather resistance. Its flexible mounting system supports installation on Ø60mm horizontal or vertical poles, with the added option of wall mounting through an available bracket, making it adaptable to a variety of urban lighting needs.
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| EST304K | 30 | 3600 | 120 | 4000K | 437 | 165 | 72 | 1 |
| EST504K | 50 | 5500 | 110 | 4000K | 447 | 166 | 72 | 1 |
| EST704K | 70 | 8400 | 120 | 4000K | 545 | 225 | 72 | 1.7 |
