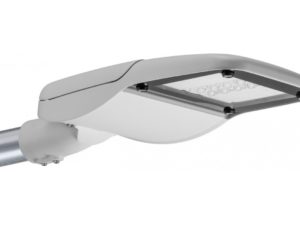

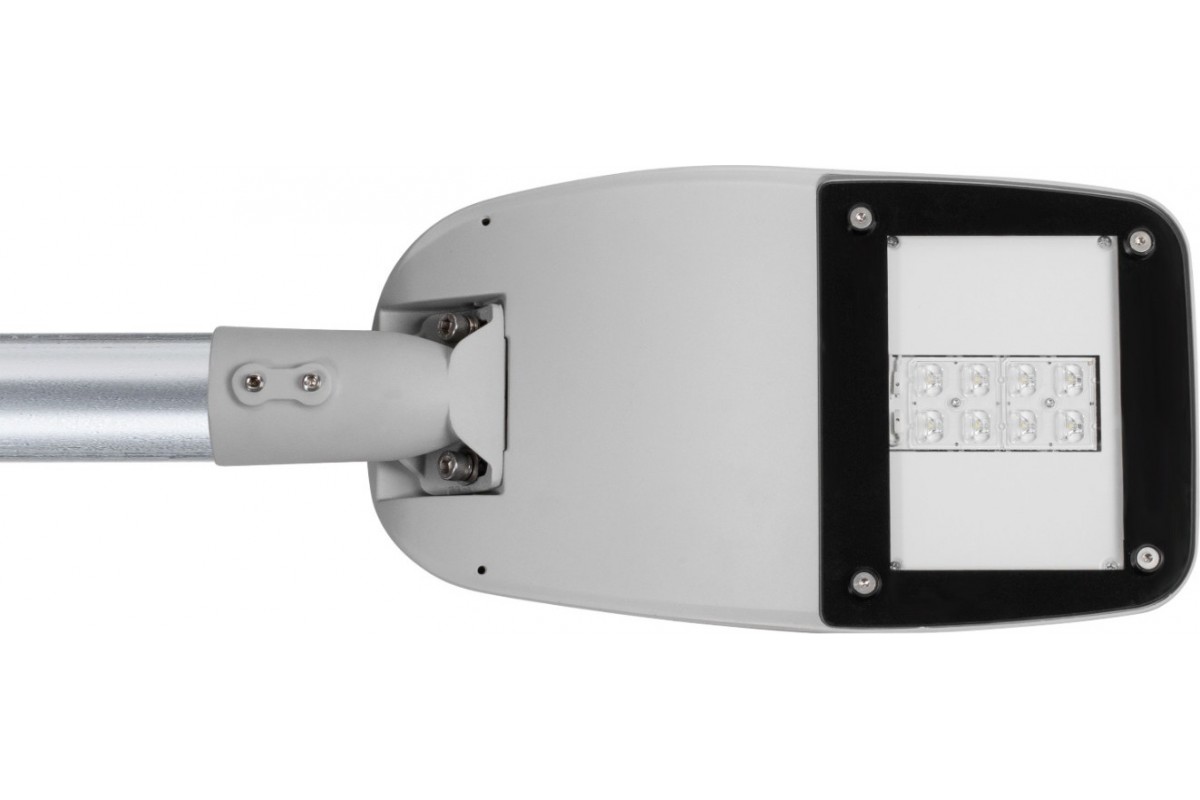

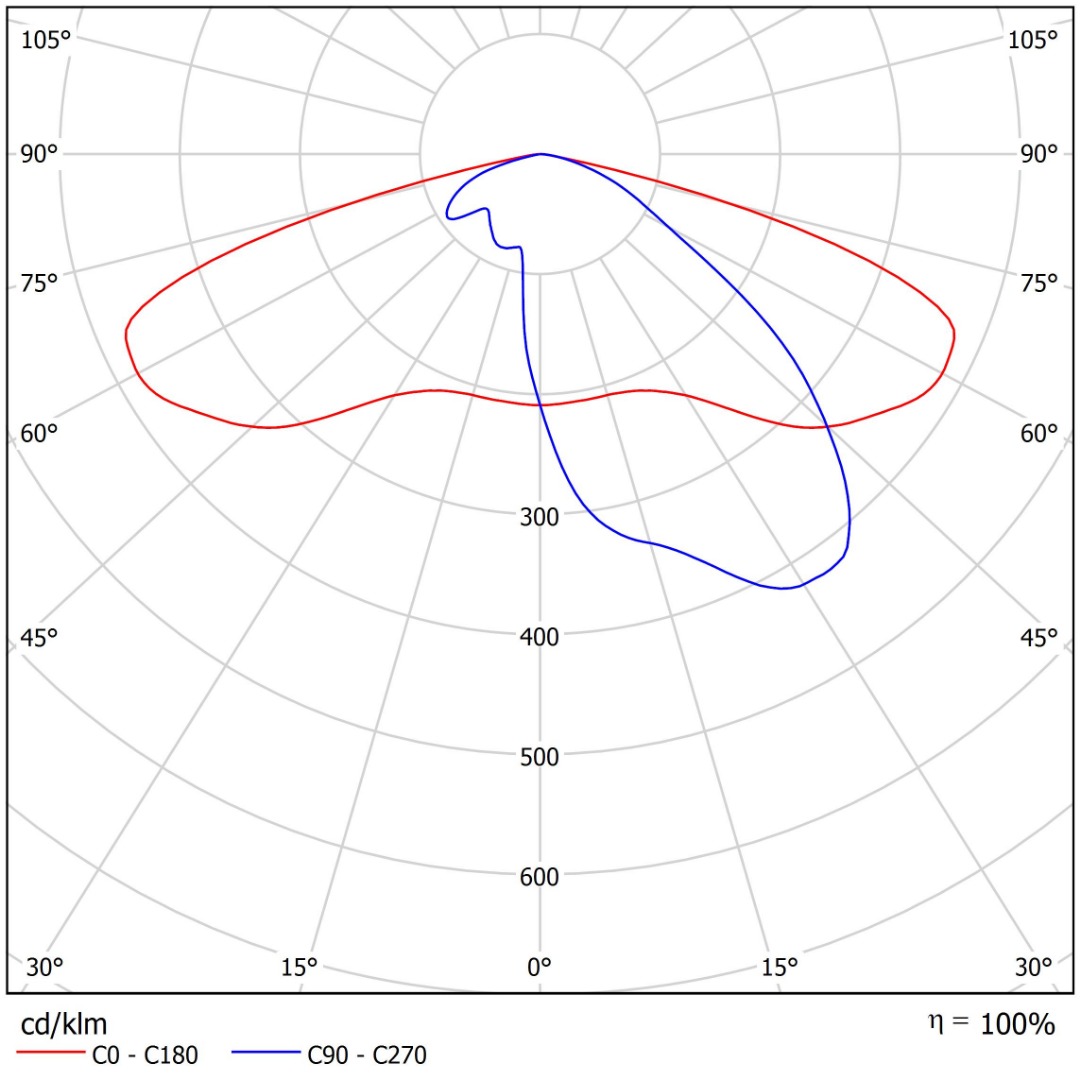

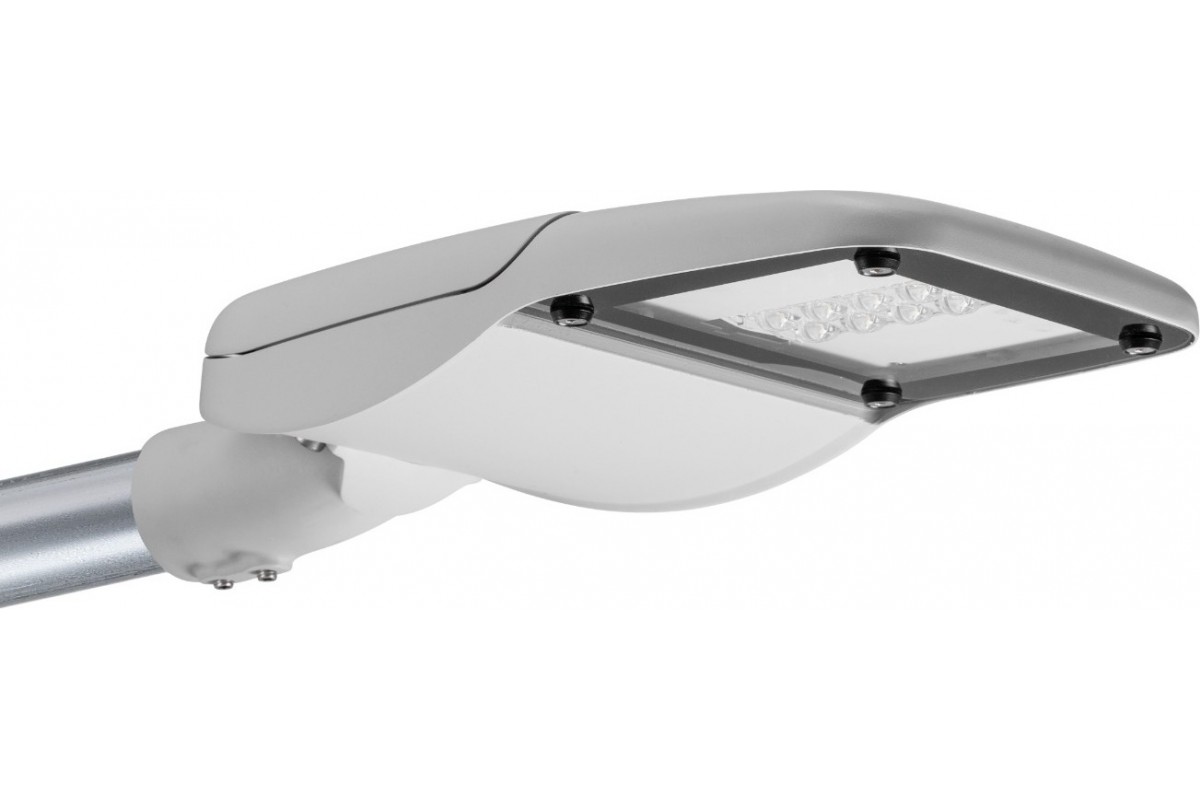

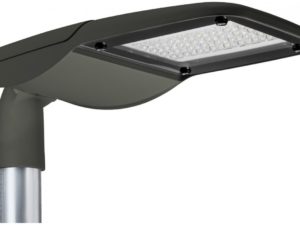

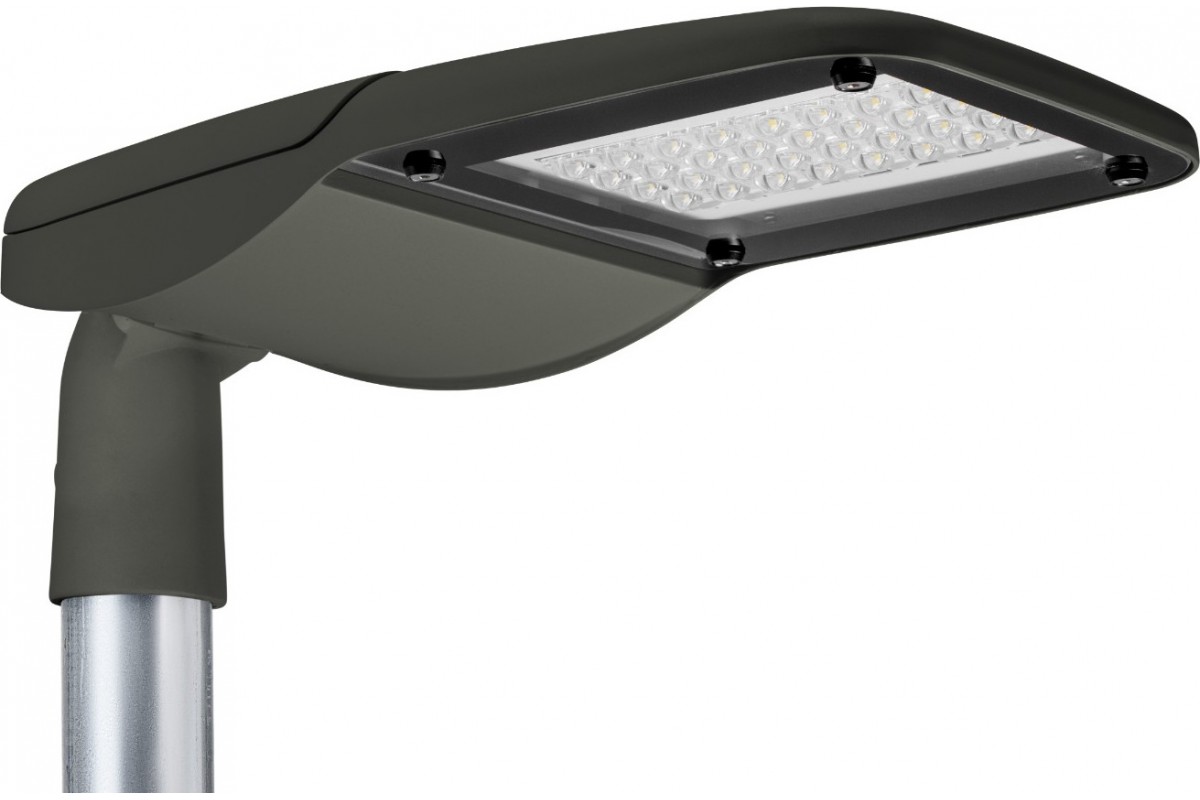

Engineered to provide high-performance direct illumination, the pole-mounted LED street luminaire is specially crafted for streets, public spaces, and parking areas. Its advanced optical system combines precision lenses with an impact-resistant tempered glass diffuser, delivering reliable, efficient lighting designed to withstand demanding conditions.

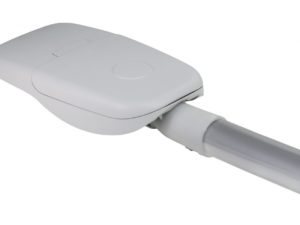

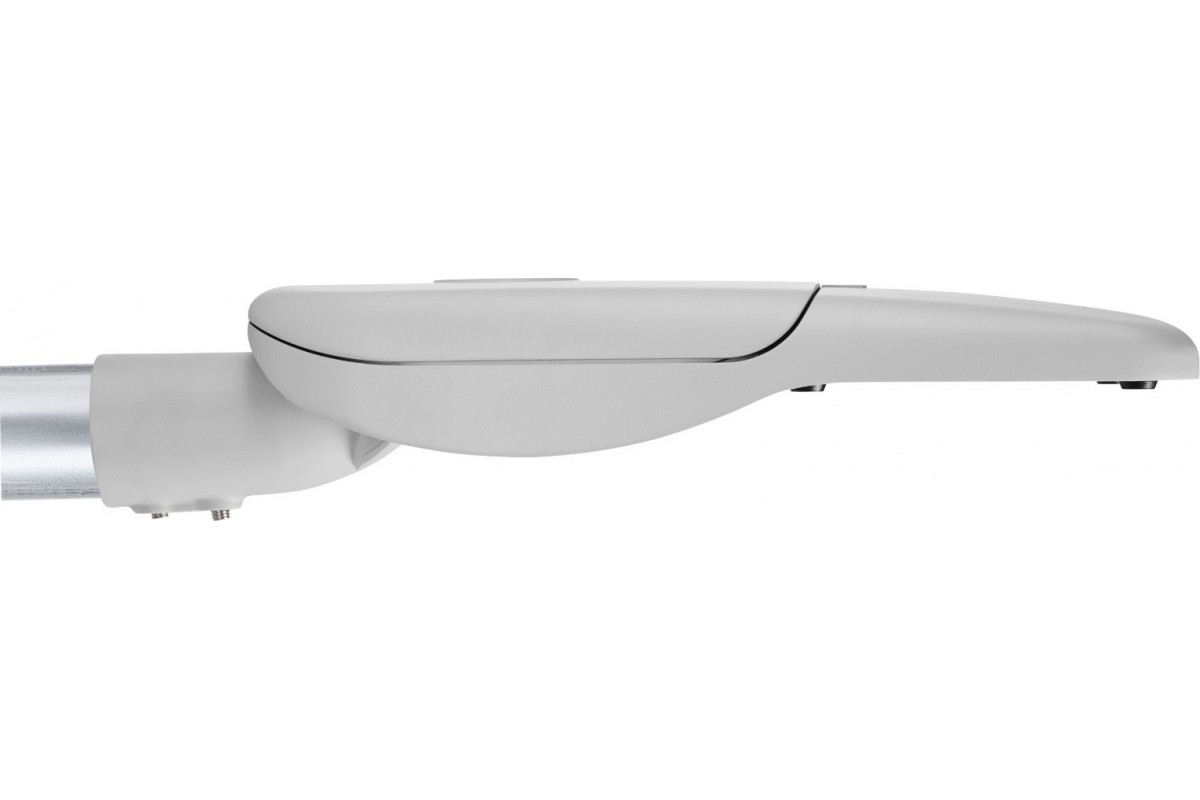

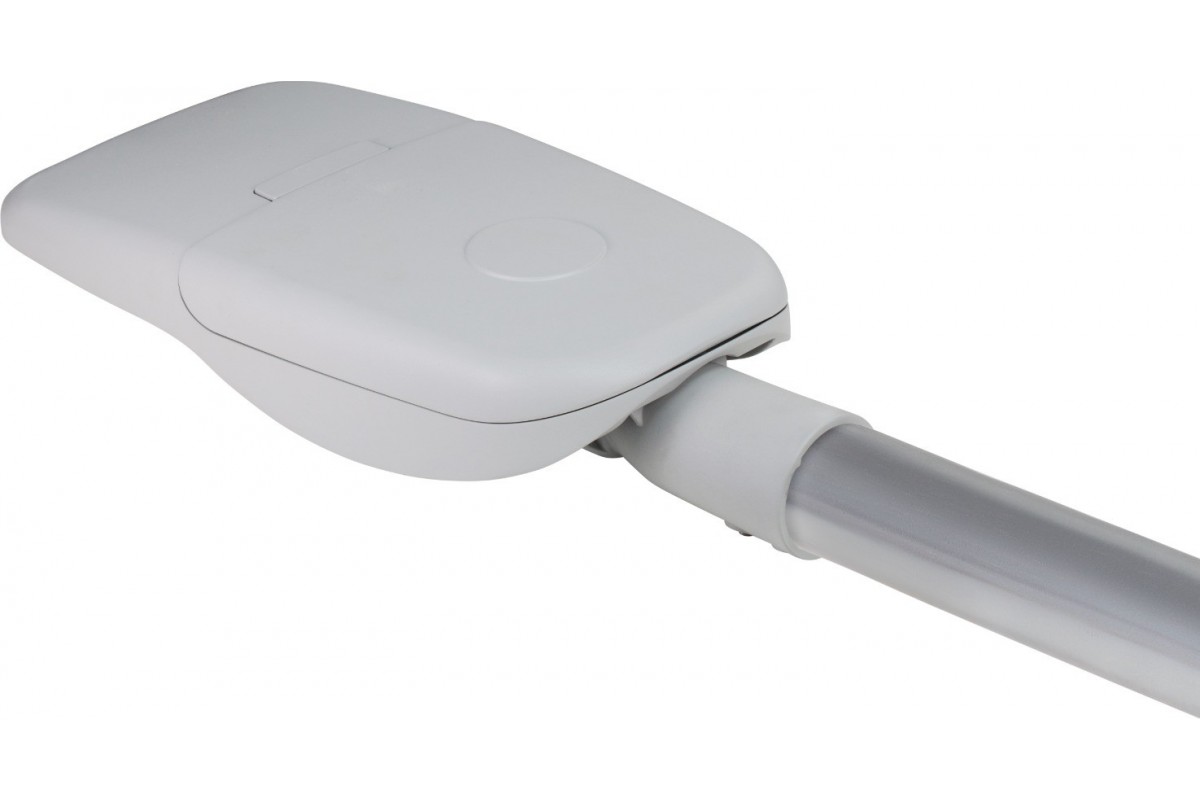

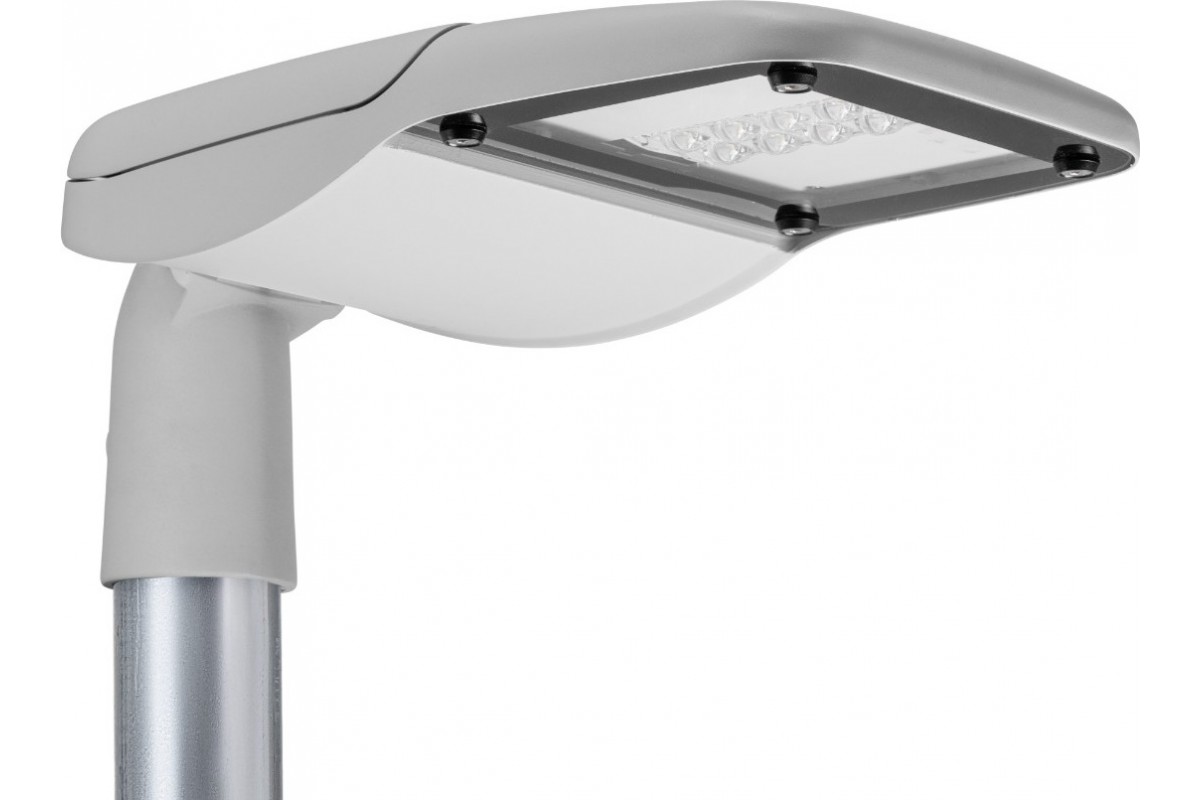

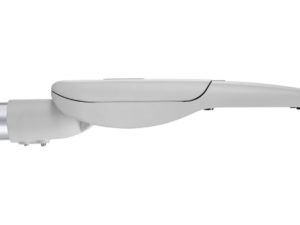

Encased in a sleek aluminium housing finished in light grey (RAL7035), the luminaire offers a modern aesthetic that complements urban environments. Its versatile mounting options accommodate both horizontal and vertical 60mm poles, as well as wall installations (with a separately available mounting bracket). Adjustable tilt angles of 15° further enhance flexibility, allowing precise alignment to optimize light distribution for a variety of outdoor applications.

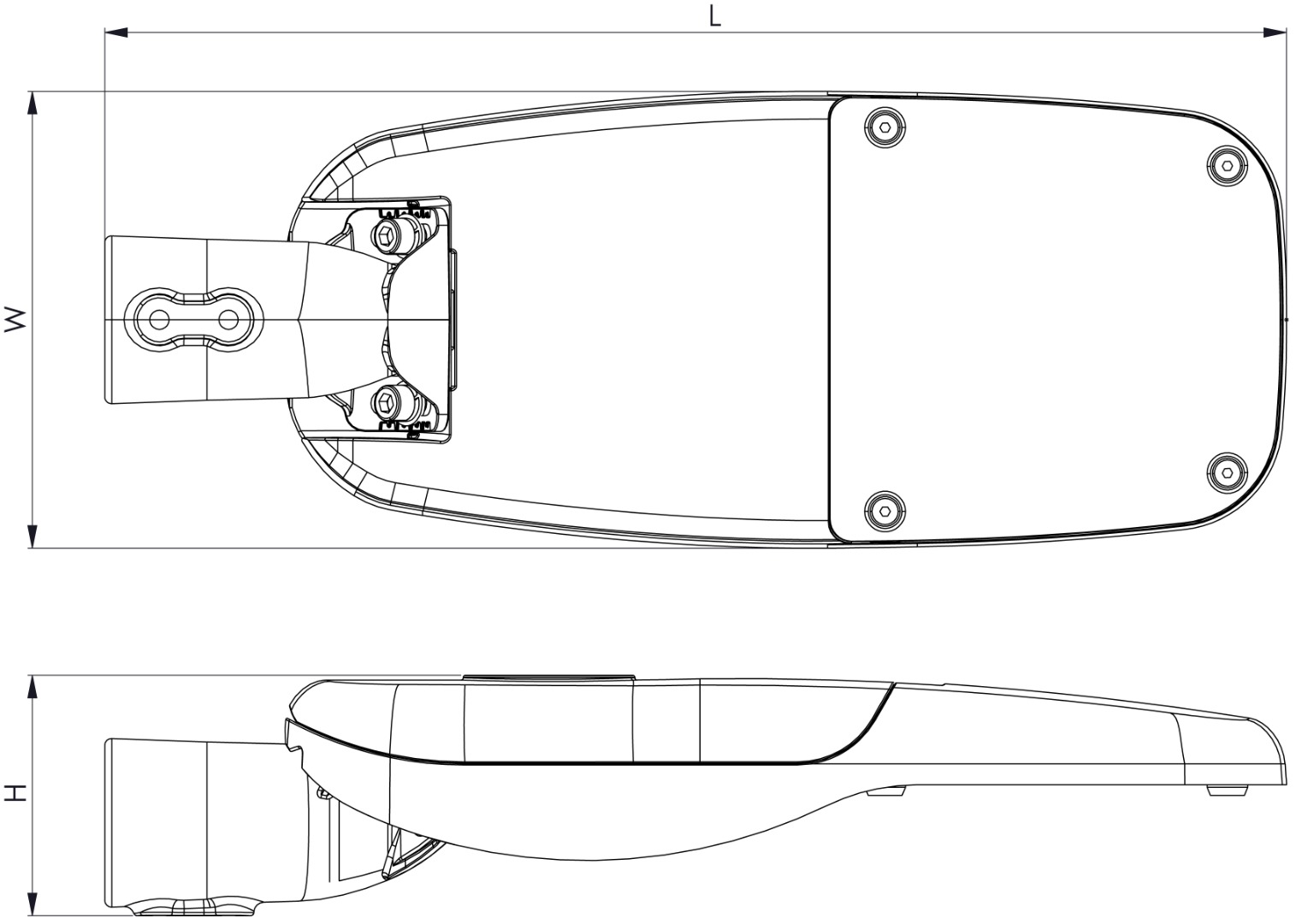

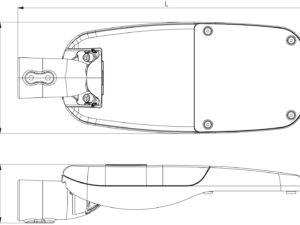

| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | Length (mm) | Width (mm) | Height (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|
| CTY134KA/AOM1 | 13 | 1897 | 152 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY154KA/AOM1 | 15 | 2233 | 148 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY174KA/AOM1 | 17 | 2582 | 150 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY204KA/AOM1 | 20 | 2892 | 146 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY224KA/AOM1 | 22 | 3223 | 145 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY264KA/AOM1 | 26 | 3667 | 140 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY244KA/AOM1 | 24 | 3793 | 159 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY294KA/AOM1 | 29 | 4466 | 155 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY344KA/AOM1 | 34 | 5163 | 154 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY394KA/AOM1 | 39 | 5785 | 149 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY444KA/AOM1 | 44 | 6446 | 147 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY524KA/AOM1 | 52 | 7335 | 142 | 4000K | 525 | 205 | 102 | 3.5 |
| CTY364KA/AOM1 | 36 | 5690 | 159 | 4000K | 525 | 250 | 102 | 4.9 |
| CTY434KA/AOM1 | 43 | 6700 | 155 | 4000K | 525 | 250 | 102 | 4.9 |
| CTY514KA/AOM1 | 51 | 7745 | 152 | 4000K | 525 | 250 | 102 | 4.9 |
| CTY594KA/AOM1 | 59 | 8677 | 148 | 4000K | 525 | 250 | 102 | 5 |
| CTY674KA/AOM1 | 67 | 9669 | 145 | 4000K | 525 | 250 | 102 | 5 |
| CTY784KA/AOM1 | 78 | 11002 | 141 | 4000K | 525 | 250 | 102 | 5 |
| CTY484KB/AOM1 | 48 | 7586 | 157 | 4000K | 625 | 288 | 102 | 7.2 |
| CTY584KB/AOM1 | 58 | 8933 | 155 | 4000K | 625 | 288 | 102 | 7.2 |
| CTY684KB/AOM1 | 68 | 10327 | 152 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY774KB/AOM1 | 77 | 11569 | 150 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY884KB/AOM1 | 88 | 12892 | 147 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY1034KB/AOM1 | 103 | 14669 | 142 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY724KB/AOM1 | 72 | 11379 | 159 | 4000K | 625 | 288 | 102 | 7.2 |
| CTY874KB/AOM1 | 87 | 13399 | 155 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY1014KB/AOM1 | 101 | 15490 | 154 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY1164KB/AOM1 | 116 | 17354 | 150 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY1324KB/AOM1 | 132 | 19338 | 147 | 4000K | 625 | 288 | 102 | 7.3 |
| CTY954KC/AOM1 | 95 | 15173 | 161 | 4000K | 776 | 320 | 102 | 9.4 |
| CTY1144KC/AOM1 | 114 | 17866 | 156 | 4000K | 776 | 320 | 102 | 9.4 |
| CTY1354KC/AOM1 | 135 | 20653 | 154 | 4000K | 776 | 320 | 102 | 9.4 |
| CTY1554KC/AOM1 | 155 | 23138 | 150 | 4000K | 776 | 320 | 102 | 9.4 |
| CTY1764KC/AOM1 | 176 | 25784 | 147 | 4000K | 776 | 320 | 102 | 9.4 |
