PROLEDEM LES
Suspended double-sided LED IP40 emergency exit sign.

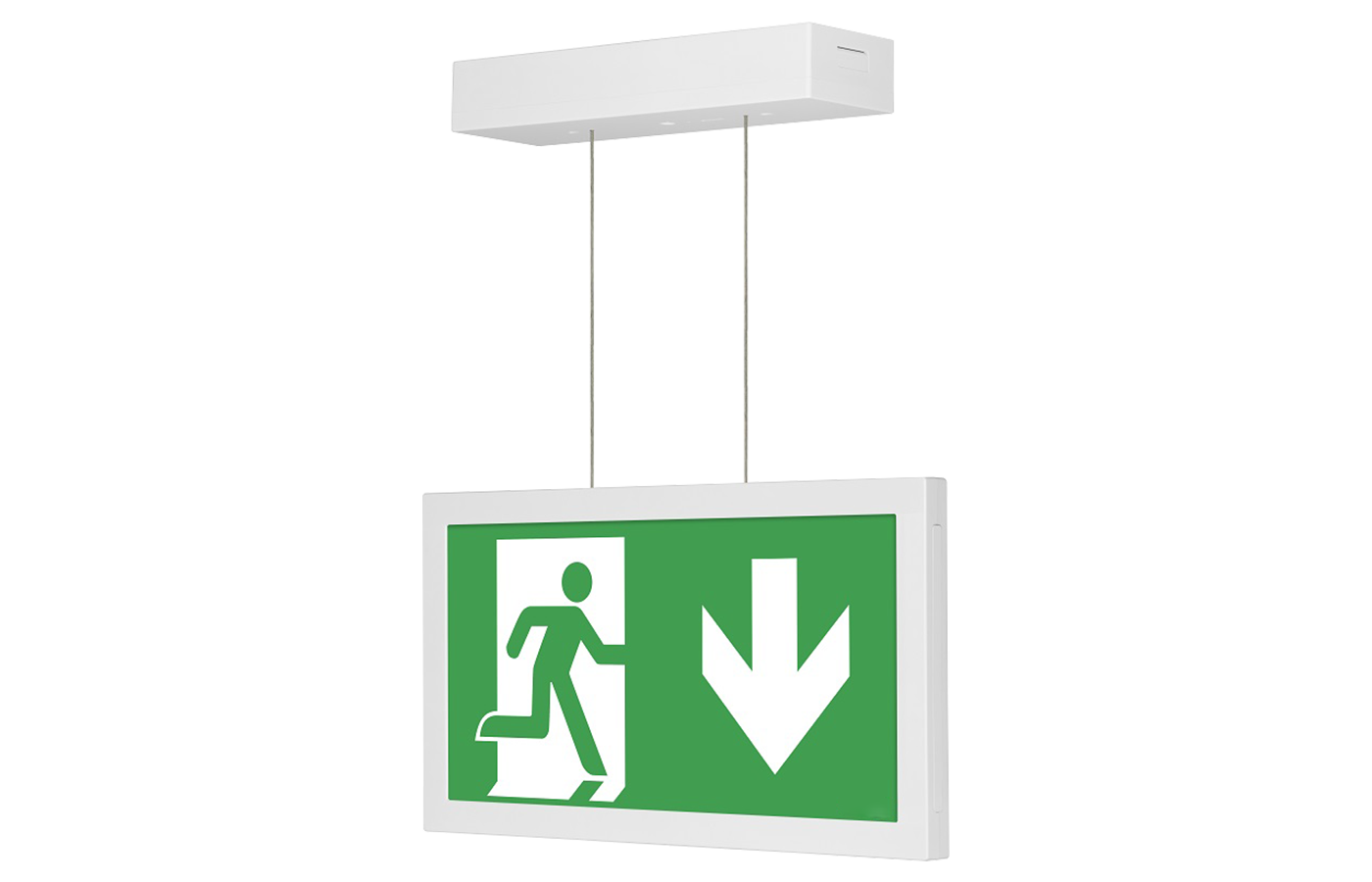

PROLEDEM LES

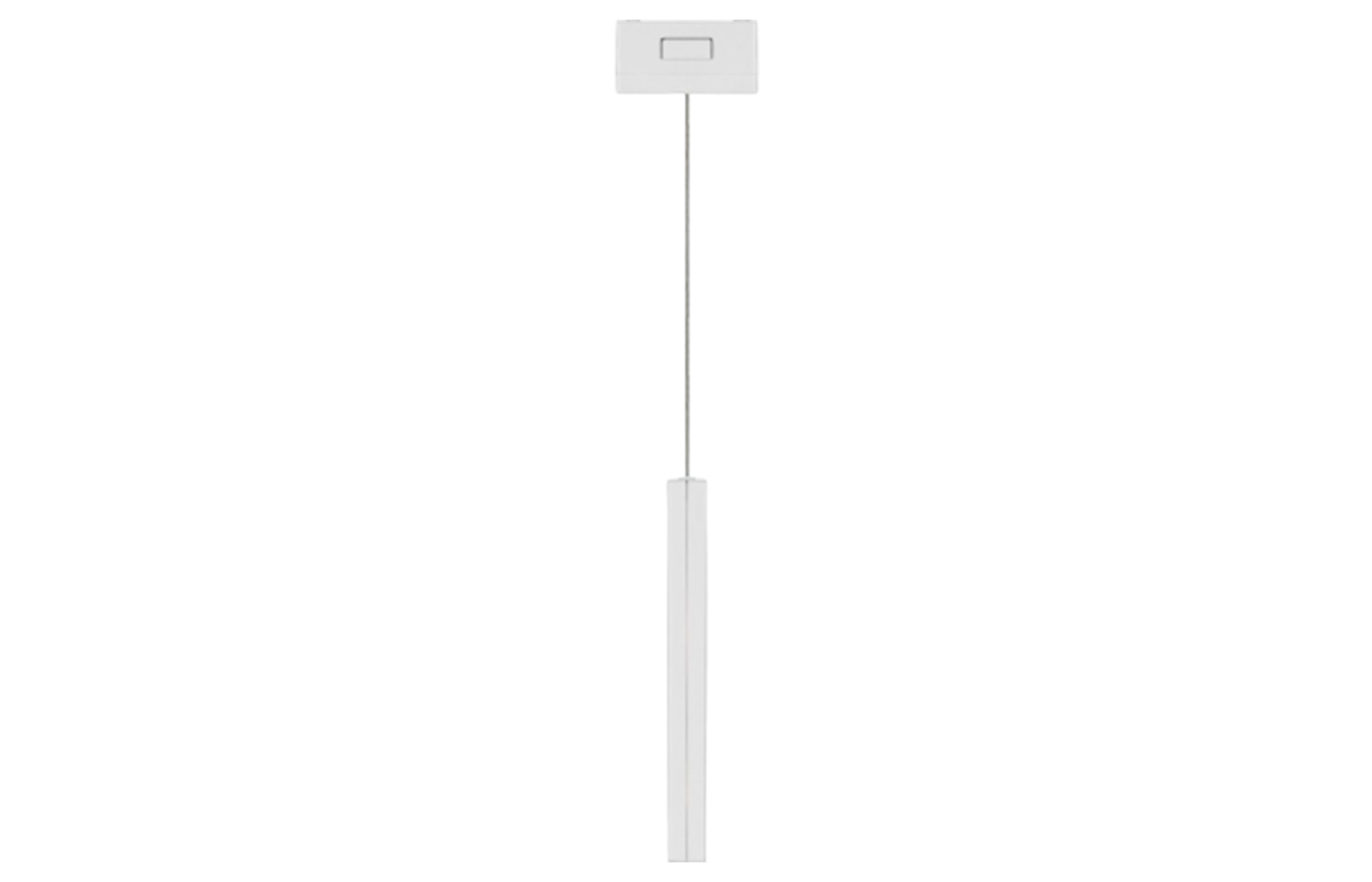

PROLEDEM LES Side View
A suspended double-sided IP40 LED emergency exit sign with an adjustable 1m suspension cable. Supplied with legend kit (Down, Left, Right).
Standard Features
- White polycarbonate body.
- Clear PMMA diffuser.
- Dual operation - maintained or non-maintained.
- Legend kit supplied (Down, Left and Right)
- 30m viewing distance.
- IP40.
- IK02.
- NiCd battery as standard (LiFePO4 for self-test option).
Ambient Temperature Guidance
0°C to +40°C
PROLEDEM LES Specification Guide
Central Battery System
| Order Code | Wattage | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| LES1CB | 1W | 6500 | 337 | 72 | 224 | 1.5 |
Self-Test M/NM
| Order Code | Wattage | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| LES1ST | 1W | 6500 | 337 | 72 | 224 | 1.4 |
Standard M/NM
| Order Code | Wattage | CCT-K | L (mm) | W (mm) | H (mm) | Weight (kg) |
|---|---|---|---|---|---|---|
| LES1 | 1W | 6500 | 337 | 72 | 224 | 1.4 |
To Order Features
(Add suffix to order code)
Accessory Options
- /BLK
- Black thermoplastic body
- /GRY
- Light grey thermoplastic body
PROLEDEM LES Photometry
Please contact us for further information regarding this product.
PROLEDEM LES Downloads
Please contact us for further information regarding this product.
