PROLED100 CLS UGR

Surface or suspended circular luminaire, UGR<19.

PROLED100 CLS UGR
PROLED100 CLS UGR

A decorative surface or suspended LED luminaire with micro prismatic diffuser available in 4 sizes.

Standard Features

  • Powder-coated steel body and gear tray.
  • Micro prismatic diffuser.
  • Quick lock installation system.
  • IP40.
  • IK02.
  • UGR<19.
  • 4 sizes - 300mm, 450mm, 600mm & 900mm diameter.
  • Integral emergency available.
  • RAL colour options.

Applications

  • Offices
  • Schools / Universities
  • Reception Areas
  • Meeting Rooms
  • Corridors
  • Retail

Ambient Temperature Guidance

0°C to +35°C (excluding emergency)

PROLED100 CLS UGR Specification Guide

Order Code Wattage Delivered Lumens (ta +25°C) System Efficacy (lm/W) CCT-K H (mm) Diameter (mm) Weight (kg)
CLS1164KA/UGR 16W 1,780 112 4000 100 300 2.5
CLS1224KA/UGR 21W 2,425 113 4000 100 300 2.5
CLS1304KB/UGR 30W 3,599 119 4000 100 450 4.2
CLS1434KB/UGR 44W 4,891 110 4000 100 450 4.2
CLS1424KC/UGR 45W 5,518 123 4000 100 600 7.5
CLS1654KC/UGR 64W 7,586 119 4000 100 600 7.5
CLS1684KD/UGR 73W 9,330 128 4000 100 900 13.5
CLS1934KD/UGR 94W 11,904 127 4000 100 900 13.5

To Order Features

(Add suffix to order code)

Driver Options

/LSLV
DALI
/SD
Switch dimming control

Sensor Options

/BLT
Integral Bluetooth wireless control
/HMW
Integral microwave sensor

LED CCT Options

/2.7K-6.5K
Tunable White 2700K to 6500K
/BLT/2.7K-6.5K
Tunable White 2700K to 6500K with Bluetooth wireless control

Emergency Options

/L3
Integral 3 hour emergency with DALI interface
/M3
Integral 3 hour emergency
/M3A
Integral 3 hour emergency with auto test function

Accessory Options

/CR2MC
Transparent cable 2m x 3x0.75mm² and ceiling rose
/CR2MSPW
Spiral cable 2m x 3x0.75mm² and ceiling rose
/CR2MW
White cable 2m x3x0.75mm² and ceiling rose
/PSSR
Strain relief for power supply cable
/RALXXXX
RAL colour option - specify RAL colour
/SUSKITCLD
1.5m suspension kit

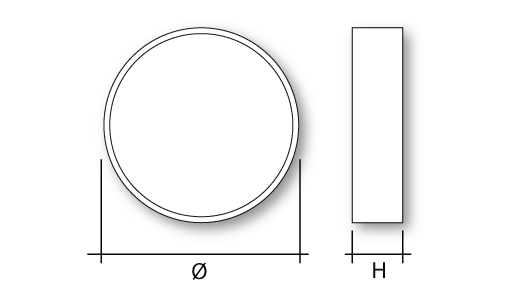

PROLED100 CLS UGR Dimensions

PROLED100 CLS UGR Dimensions

Note: All dimensions are in millimetres.

PROLED100 CLS UGR Photometry

Please contact us for further information regarding this product.
