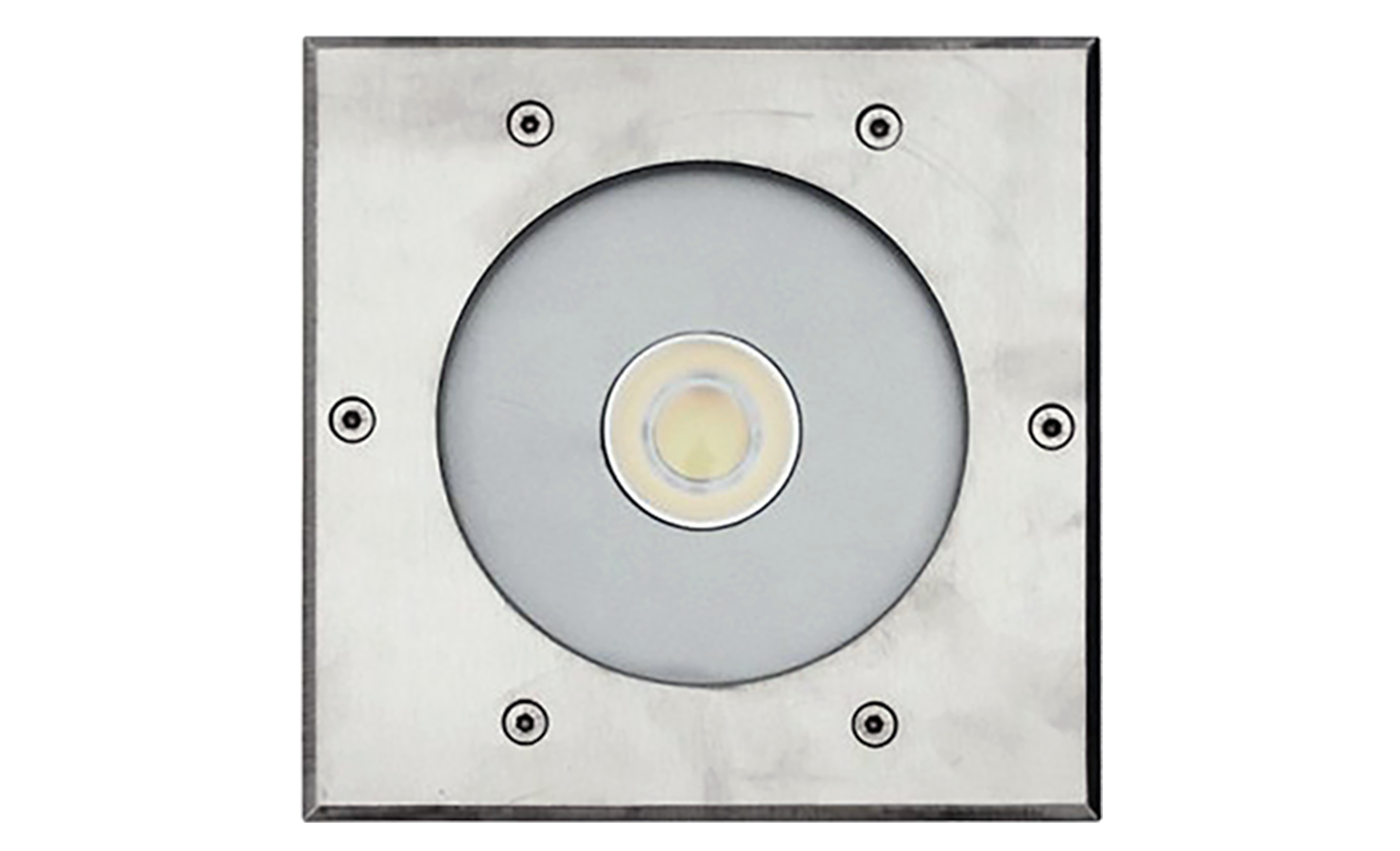

PROLED50 EGS
Recessed Ground.
PROLED50 EGS
A recessed IP67 square ground luminaire with a choice of optics.
Standard Features
- Die cast aluminium body.
- Frosted tempered glass diffuser.
- 316 grade stainless steel cover.
- IP67.
- IK10.
Applications
- Façade
- Public Space
- Park
Ambient Temperature Guidance
-25°C to +40°C
PROLED50 EGS Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | W (mm) | H (mm) | D (mm) | Weight (kg) | Beam Angle |
|---|---|---|---|---|---|---|---|---|---|
| EGS1103K60 | 10W | 1,170 | 113 | 3000 | 200 | 235 | 200 | 4.5 | 60° |
| EGS1114K60 | 11W | 1,071 | 96 | 4000 | 200 | 235 | 200 | 4.5 | 60° |
| EGS1143K60 | 14W | 1,606 | 114 | 3000 | 200 | 235 | 200 | 4.5 | 60° |
| EGS1154K60 | 15W | 1,439 | 94 | 4000 | 200 | 235 | 200 | 4.5 | 60° |
| EGS1213K60 | 21W | 2,229 | 108 | 3000 | 200 | 235 | 200 | 4.5 | 60° |
| EGS1234K60 | 23W | 1,939 | 85 | 4000 | 200 | 235 | 200 | 4.5 | 60° |
To Order Features
(Add suffix to order code)
Driver Options
- /LSLV
- DALI
Accessory Options
- /30X30OPT
- Optics with 30x30° beam angle
- /45X45OPT
- Optics with 45x45° beam angle

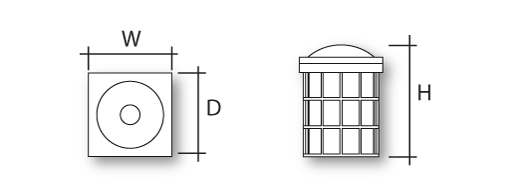

PROLED50 EGS Dimensions
Note: All dimensions are in millimetres.
PROLED50 EGS Photometry
Please contact us for further information regarding this product.
