PROLED100 MPF

Area Flood .

PROLED100 MPF
PROLED100 MPF

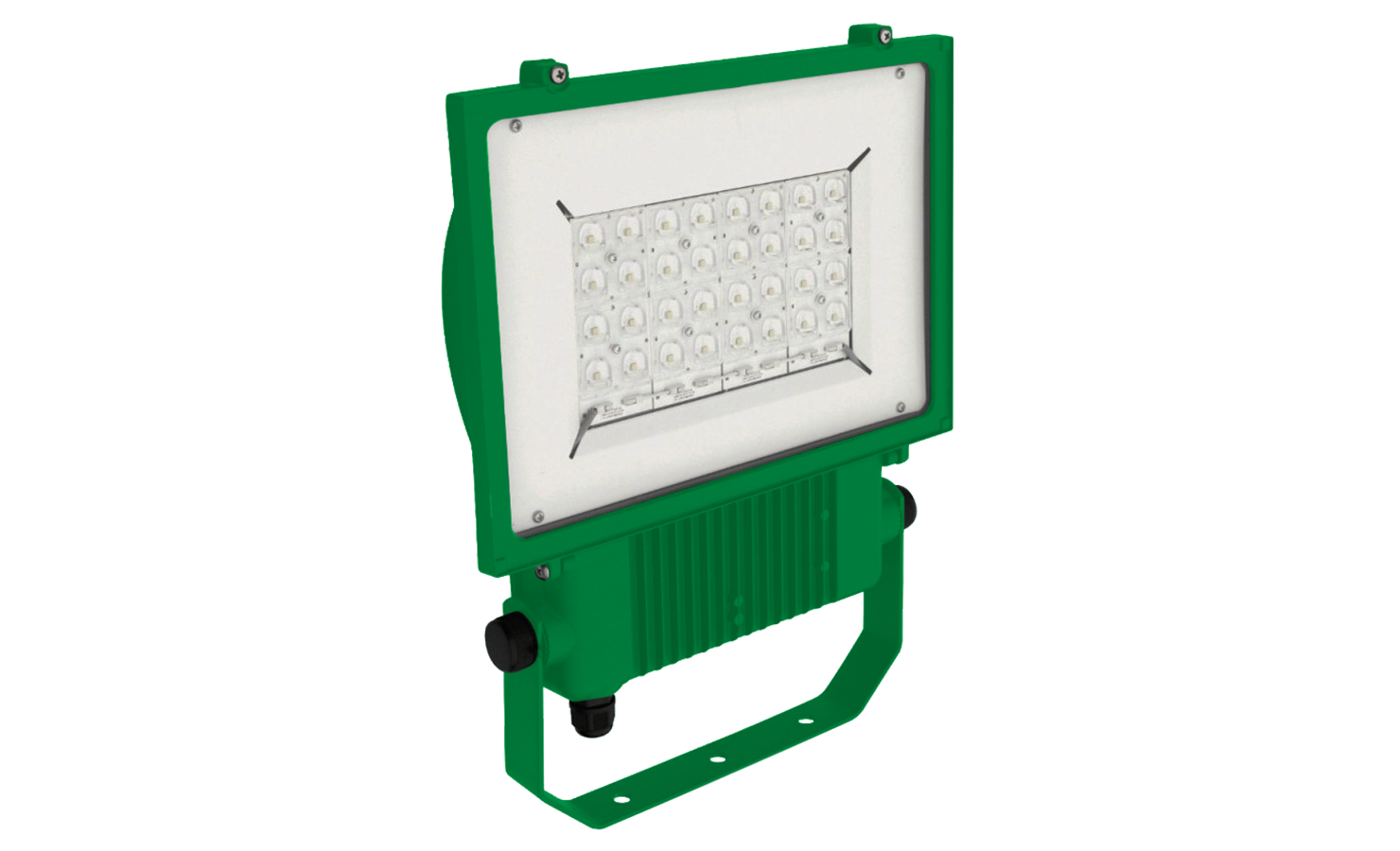

An architectural LED flood light with a wide choice of optics.

Standard Features

  • Die-cast aluminium body with tempered glass cover.
  • Choice of 8 optic packages.
  • IP65/IK08.
  • Timed-dim control option.
  • Traffic Grey B as Standard (RAL 7043), other RAL colour options available.

Applications

  • Industry
  • Car Parks
  • Perimeter Lighting
  • Sports
  • Façade

Ambient Temperature Guidance

-20°C to +40°C

PROLED100 MPF Specification Guide

Order Code Wattage Delivered Lumens (ta +25°C) System Efficacy (lm/W) CCT-K W (mm) H (mm) D (mm) Weight (kg)
MPF1343K90 34W 4,103 119 3000 280 338 60 2.8
MPF1344K90 34W 4,319 125 4000 280 338 60 2.8
MPF1533K90 53W 5,734 108 3000 280 338 60 2.8
MPF1534K90 53W 6,036 114 4000 280 338 60 2.8
MPF1693K90 69W 8,277 120 3000 353 444 66 5.0
MPF1694K90 69W 8,712 126 4000 353 444 66 5.0
MPF11063K90 106W 11,469 108 3000 353 444 66 5.0
MPF11064K90 106W 12,072 114 4000 353 444 66 5.0
MPF11323K90 132W 14,336 108 3000 420 515 87 7.6
MPF11324K90 132W 15,090 114 4000 420 515 87 7.6
MPF11593K90 159W 17,203 108 3000 420 515 87 7.6
MPF11594K90 159W 18,108 114 4000 420 515 87 7.6
MPF12123K90 212W 22,937 108 3000 420 515 87 7.6
MPF12124K90 212W 24,144 114 4000 420 515 87 7.6

To Order Features

(Add suffix to order code)

Driver Options

/CSLV
Dimming via control line
/LSLV
DALI

LED CCT Options

/5000K

Accessory Options

/12X12OPT
Optics with 12x12° beam angle
/30X30OPT
Optics with 30x30° beam angle
/45X45OPT
Optics with 45x45° beam angle
/60X60OPT
Optics with 60x60° beam angle
/ASYOPT1
Optics with asymmetric beam A1
/ASYOPT2
Optics with asymmetric beam A2
/ASYOPT3
Optics with asymmetric beam M1
/RALXXXX
RAL colour option - specify RAL colour

PROLED100 MPF Dimensions

PROLED100 MPF Dimensions

Note: All dimensions are in millimetres.

PROLED100 MPF Photometry

Please contact us for further information regarding this product.
