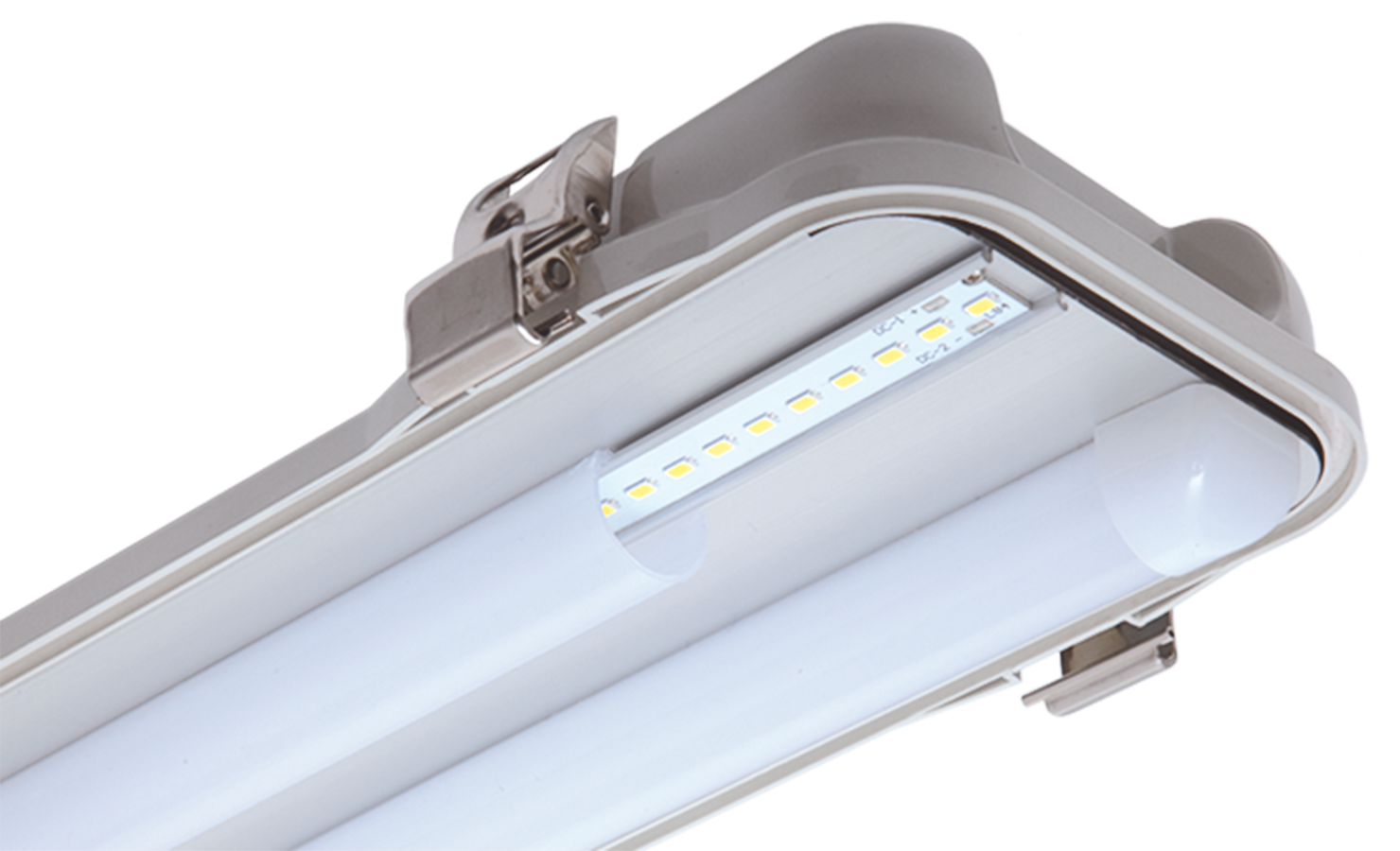

LED IP65 110V 2x12W WEATHERPROOF
Corrosion Resistant LED Luminaires. For construction site use.
LED IP65 110V 2x12W WEATHERPROOF
LED IP65 110V 2x12W Weatherproof
Corrosion Resistant LED Luminaire for use in demanding applications, especially construction sites with 110 volt working. Offering high efficiency and long service life.
Standard Features
- Ultimate LED reliability, premium brand with high power output
- LED mounted on metal heatsink and separate driver
- High strength polycarbonate IP65 grey body and diffuser with poured rubber seal
- Cool white (5000k) as standard
- LED’s are diffused giving an evenly distributed light output with no glare
- Certified ingress protection to IP65
- Stainless steel clips, one piece, fitted as standard
- Gland entry points at both ends, plus on back of the body
- Voltage AC110V 50Hz
- Operating temperature: -20°C to +40°C
- 50,000 hours L70 lifespan
- 5 year warranty
Applications
- Construction Sites
- Applications where 110V 50Hz supply is mandated
LED IP65 110V 2x12W WEATHERPROOF Specification Guide
| Order Code | Wattage | L (mm) | W (mm) | D (mm) |
|---|---|---|---|---|
| CPB225K | 2 × 12W | 660 | 138 | 98 |
To Order Features
(Add suffix to order code)
Emergency Options
- /M3
- 3hr maintained emergency
Example Order Code

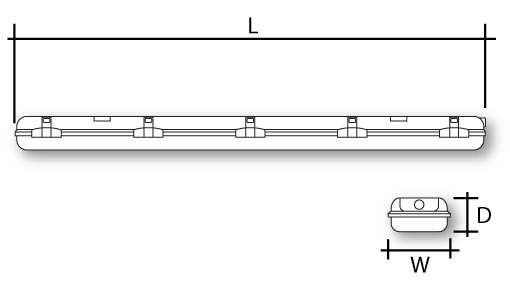

CPB225K/M3 – A 2 x 12 watt LED IP65 110V weatherproof luminaire with 3 hour emergency back up.LED IP65 110V 2x12W WEATHERPROOF Dimensions
Note: All dimensions are in millimetres.
LED IP65 110V 2x12W WEATHERPROOF Photometry
Please contact us for further information regarding this product.
