Commercial & Industrial Lighting
Bolard IP65

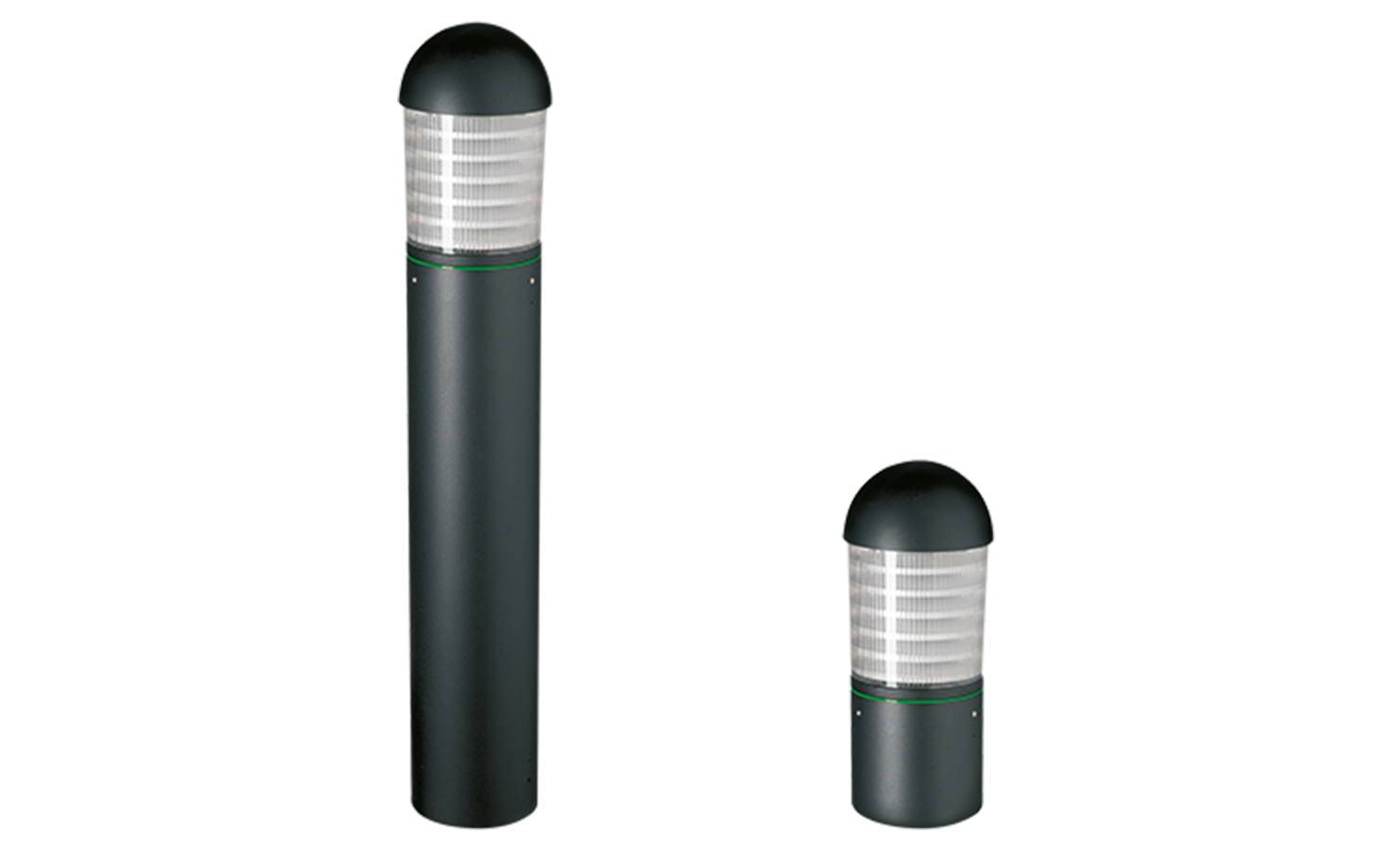

Lighting Bollard. For residential and commercial area lighting.
Heavy duty high efficiency amenity bollard in two sizes 1100mm and 500mm, incorporating either metal halide, sodium, mercury or compact fluorescent lamps. Designed and manufactured to comply with EN 60598 and is CE certified.
Applications
- Car parks
- Gardens and parks
- Pedestrian precincts
- Pathways
- Hotel forecourts
- Driveways
- Industrial estates
Standard Features
- Certified ingress protection to IP65 (lamp compartment)
- Choice of metal halide, high pressure sodium, mercury, compact fluorescent (lamp included)
- Louvre stack for controlled light distribution
- UV stabilised impact resistant polycarbonate refractor

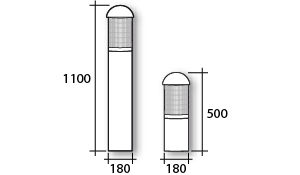

- Choice of two sizes 1100mm and 500mm
- Extra strong base plate mounting (root mounting version available)
- Tamper proof corrosion resistant fixings
- Durable heavy grade aluminium body finished in corrosion resistant black
- Quality integral control gear for trouble free use
- All gaskets are manufactured from heat resistant silicone rubber to ensure the IP65 rating
Bolard IP65 Downloads
Specification Guide
M
| Order Code | Watt | Kg | Info |
|---|---|---|---|
| WBL1180M | 1 x 80W | 8.5 |
|
| WBL6080M | 1 x 80W | 5.8 |
|
| WBL1112M | 1 x 125W | 8.5 |
|
| WBL6012M | 1 x 125W | 5.8 |
|
Q/P
| Order Code | Watt | Kg | Info |
|---|---|---|---|
| WBL1170Q | 1 x 70W | 8.5 |
|
| WBL6070Q | 1 x 70W | 5.8 |
|
SI
| Order Code | Watt | Kg | Info |
|---|---|---|---|
| WBL1170S | 1 x 70W | 8.5 |
|
| WBL6070S | 1 x 70W | 5.8 |
|
TC-D
| Order Code | Watt | Kg | Info |
|---|---|---|---|
| WBL1118C | 2 x 18W | 8.5 |
|
| WBL6018C | 2 x 18W | 5.8 |
|
TC-T
| Order Code | Watt | Kg | Info |
|---|---|---|---|
| WBL1142 | 1 x 42W | 8.5 |
|
| WBL6042 | 1 x 42W | 5.8 |
|
To Order Features
(Add suffix to order code)
- /BB:
- 180° baffle
- /E3INT:
- Integral maintained three hour emergency. 2 x 18 watt compact fluorescent type only
- /FTB:
- Fused terminal block
- /PEC:
- Dusk to dawn sensing photo electric cell
- /RM:
- 300mm root mounted for extra strength
Example order code:
WBL6042/RM/FTB/PEC – A 1 x 42 watt compact fluorescent bollard with a black 500mm body root mounted, fused terminal block, photo cell and lamp.
Note: All dimensions are in milimeters.
Photometry
WBL6080M
