PROLED50 RDB
Decorative Round Amenity.
PROLED50 RDB

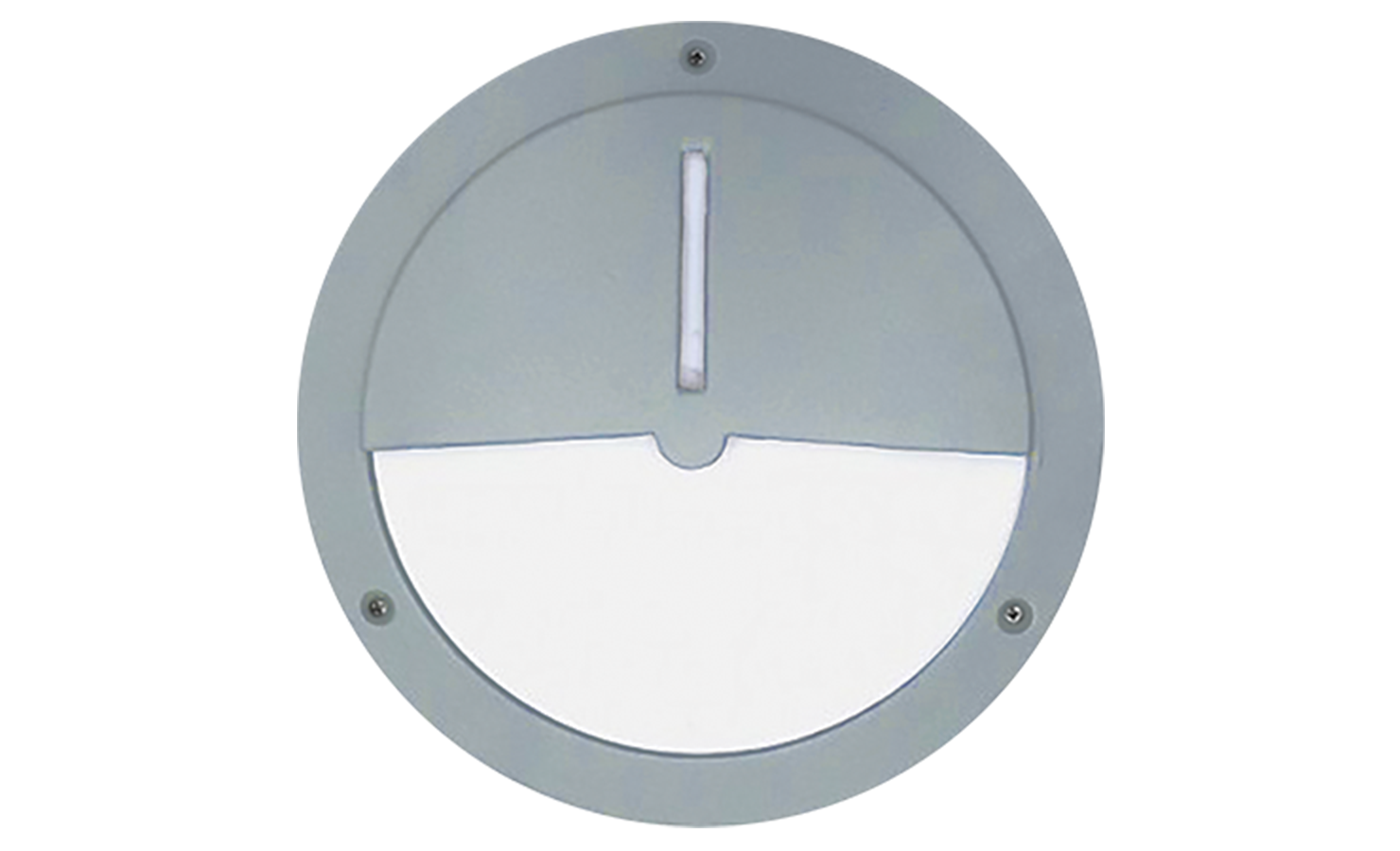

Louvre

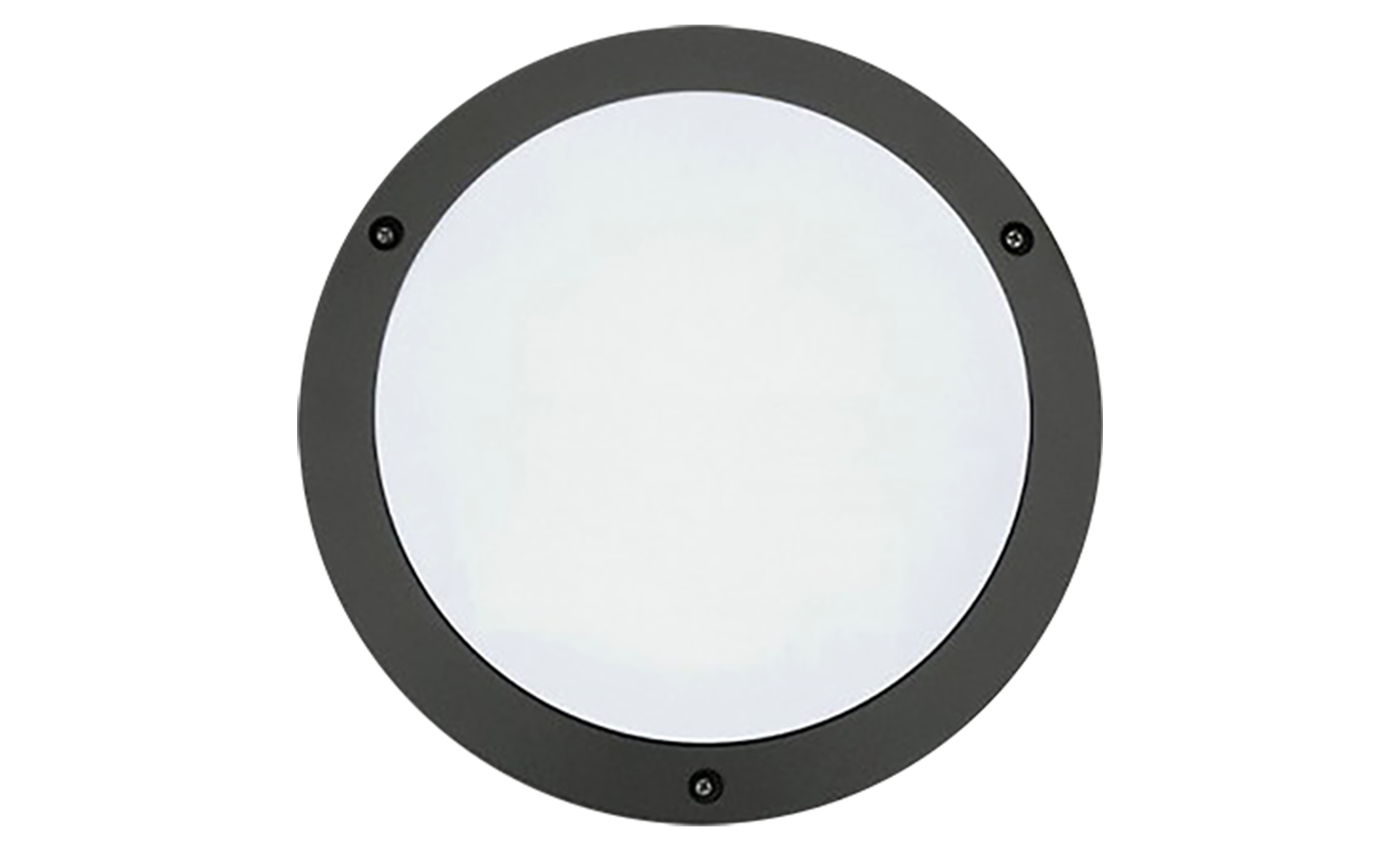

A decorative round wall luminaire with polycarbonate opal diffuser.
Standard Features
- Die cast aluminium body.
- Impact resistant, UV stable opal polycarbonate diffuser.
- IP54.
- IK08.
- RAL colour options.
Applications
- Façade
- Public Space
- Stairwells
Ambient Temperature Guidance
-25°C to +40°C
PROLED50 RDB Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | D (mm) | Diameter (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| RDB113KLOU | 7W | 430 | 59 | 3000 | 85 | 270 | 1.6 |
| RDB114KLOU | 7W | 451 | 62 | 4000 | 85 | 270 | 1.6 |
| RDB1103K | 10W | 798 | 80 | 3000 | 80 | 270 | 1.4 |
| RDB1104K | 10W | 835 | 83 | 4000 | 80 | 270 | 1.4 |
To Order Features
(Add suffix to order code)
Driver Options
- /LSLV
- DALI
Sensor Options
- /HMW
- Integral microwave sensor
Accessory Options
- /RALXXXX
- RAL colour option - specify RAL colour

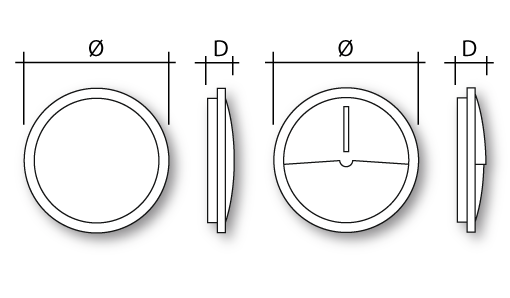

PROLED50 RDB Dimensions
Note: All dimensions are in millimetres.
PROLED50 RDB Photometry
Please contact us for further information regarding this product.
