PROLED50 PHL-S HP
Recessed square gimbal downlight.
PROLED50 PHL-S HP
Recessed gimbal
A recessed, high lumen output, square gimbal downlight with 40º faceted aluminium reflector and clear PMMA diffuser in a die-cast aluminium body.
Standard Features
- Powder coated die cast aluminium body.
- Recessed mounting.
- 40° faceted aluminium reflector.
- CRI80 and CRI90 option.
- IP20.
Applications
- Offices
- Schools / Universities
- Reception Areas
- Meeting Rooms
- Corridors
- Retail
Ambient Temperature Guidance
0°C to +35°C
PROLED50 PHL-S HP Specification Guide
| Order Code | Wattage | Delivered Lumens (ta +25°C) | System Efficacy (lm/W) | CCT-K | CRI | L (mm) | W (mm) | H (mm) | Cutout (mm) | Weight (kg) |
|---|---|---|---|---|---|---|---|---|---|---|
| PHL1193K90 | 18W | 1,839 | 100 | 3000 | 90+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1194K90 | 18W | 1,965 | 107 | 4000 | 90+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1193K80 | 19W | 2,226 | 116 | 3000 | 80+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1194K80 | 19W | 2,282 | 119 | 4000 | 80+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1283K90 | 26W | 2,511 | 96 | 3000 | 90+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1284K90 | 26W | 2,684 | 102 | 4000 | 90+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1283K80 | 28W | 3,002 | 109 | 3000 | 80+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
| PHL1284K80 | 28W | 3,079 | 112 | 4000 | 80+ | 175 | 175 | 119 | 165 × 165 | 1.4 |
To Order Features
(Add suffix to order code)
Driver Options
- /DIM
- 1-10V dimming
- /SD
- DALI
Accessory Options
- /24DEG
- 24° faceted aluminium reflector
- /WIE/3P/0.5M
- 0.5m lead and Wieland 3 pin plug
- /WIE/5P/0.5M
- 0.5m lead and Wieland 5 pin DALI plug

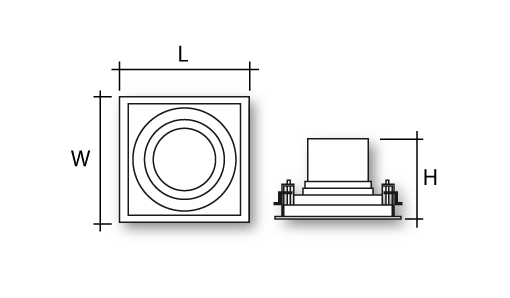

PROLED50 PHL-S HP Dimensions
Note: All dimensions are in millimetres.
PROLED50 PHL-S HP Photometry
Please contact us for further information regarding this product.
